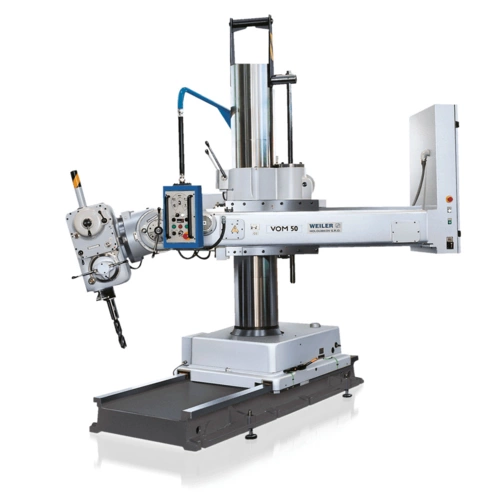

WEILER VOM50

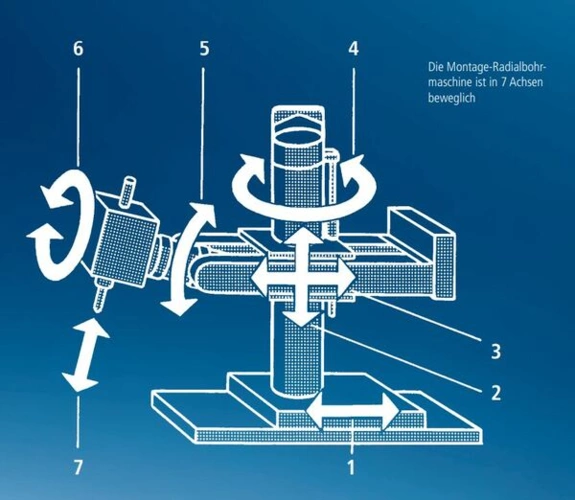

Mobile and movable in seven axes— can be used anywhere where the drilling machine needs to be brought to the workpiece, e.g., in power plants, chemical plants, shipyards, and heavy machinery construction. Also suitable for stationary use.

Advantages and use of the machine

This drilling machine meets all requirements for quick setup, working range, power, and accuracy when drilling on bulky and heavy housings, machine and plant constructions, mainly during their assembly.

It is suitable for drilling and reaming work and for thread cutting in housings of large tool and forming machines, turbines, generators, compressors, steel structures, boilers, containers, chemical plants, kilns for cement factories, and in shipbuilding.

It is used in mechanical workshops, boiler shops, bridge construction companies, shipyards, and heavy machinery manufacturing companies.

Standard equipment

• Vertical arm travel max. 1,250 mm
• Swiveling range 360 degrees
• Spindle design max./min. 2,070/1,170 mm
• Machine light
• Taper sleeves Morse 5/4 and 5/3
• Ejection wedges (2 pieces)

Accessories/options

• Bed extension for extended slide travel of 2,600 mm / extension module
• Coolant device
• Vb8 clamping cube
  • Clamping surface top 1,000 x 700 mm
  • Side clamping surface 1,000 x 500 mm
• Tilting table Vc8
  • Clamping surface top 750 x 600 mm
  • Clamping surface on the side 750 x 550 mm
• Frequency-controlled main drive with extension of the spindle Speed range up to 1,600 rpm
• Frequency-controlled and infinitely variable slide adjustment
• Vertical adjustment of the sliding sleeve frequency-controlled and infinitely adjustable
• Horizontal swivel arm adjustment and swivel head, frequency-controlled and infinitely adjustable swivel movement
• Spindle rotation frequency-controlled and infinitely adjustable
• Control panel height-adjustable and electrically operated
• Platform for operation and maintenance
• Tropical insulation TH32
• Electrical equipment for networks other than 400 V/50 Hz
• Special paint finish
