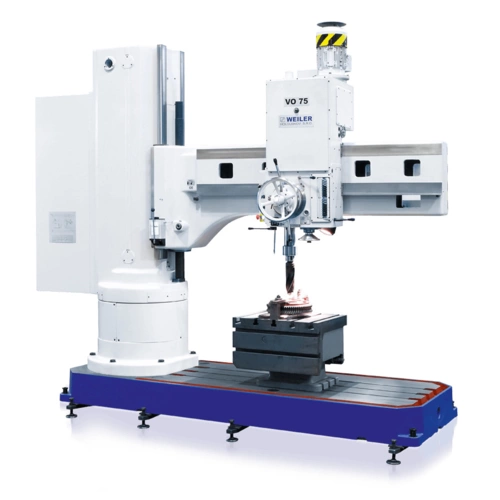

WEILER VO75

Fields of application: Drilling, boring, reaming and thread cutting in single part and series production.

Advantages of the VO75 radial drilling machine from WEILER:

• Easy to operate, robust and reliable
• Powerful: for drilling holes up to 75 mm in diameter in steel
• Length of the drilling carriage movement up to 1,640 mm
• Ideal for all types of drilling work
• Clear control panel
• Approval according to ISO 2423 (corresponds to DIN 8625)

Machine frame

The main parts of the machine frame are made of high-quality grey cast iron. The base frame has a large clamping surface for holding workpieces, tables or fixtures. The guide surfaces on the housing and cantilever are hardened and ground, the mating surfaces are scraped.

Headstock and drive

Sturdy grey cast iron housing with extendable quill. The drill spindle is hardened, runs in permanently lubricated precision bearings and is characterised by high concentricity and smooth running. The headstock is fixed to the swivel arm by means of hydraulic-mechanical clamping. The spindle speeds and quill feeds are selected via a control panel. Switching takes place via the spindle start lever. Drilling depths are set with a fixed stop and rotating depth scale. The permissible drilling capacity is monitored by a safety feed clutch to prevent the machine from being overloaded. A start-up clutch enables smooth and soft spindle start-up. The spindle is braked and stopped via magnetic brakes on the shaft under the motor

Standard equipment

• Distance of spindle nose from the clamping surface min. 670 mm/max. 2,000 mm
• Spindle projection min. 386 mm/max. 2,000 mm
• Quill stroke 380 mm
• Machine light
• Reducing sleeve
• Ejector wedges
• Groove cleaner
• Oil can
• Oil pusher
• Set of operating keys
• Transport locks
• Operating manual with spare parts catalogue

Accessories / Options

• Coolant device with container
• Clamping cube Vb8
• Tilting table Vc8
• Clamping vice 160 mm
• Frequency-controlled main drive
• 2-axis position indicator Heidenhain
• 3-axis position indicator Heidenhain
• Platform for operation and maintenance
• Anchoring material with stone screws
• Anchoring material with anchor bolts and
• adhesive cartridges
• Version with TH32 tropical insulation
• Electrical equipment for networks other than
• 400 V / 50 Hz
• Special paint finish
• Electrical stop for thread cutting (only for V075)
• Reinforced main drive 15 kW (only for V0100 and V0104)
• Motorised headstock adjustment (only for V0100 and V0104)
• Motorised sleeve rotation (only for V0104)
