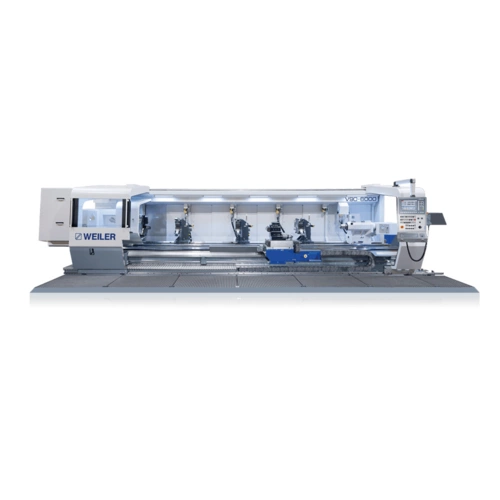

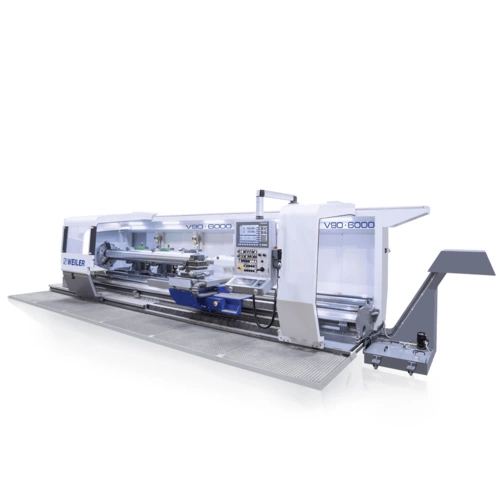

WEILER V90

Turning diameter max. 940 mm, turning length max. 12000 mm for long workpieces, with automatic cycle control

The WEILER V90 is a 4-path precision turning machine with automatic cycle control and embodies the implementation of the WEILER cycle control, known from the E-series and proven a thousand times over, on a 4-path bed lathe. The V-series was developed to produce long workpieces more economically. For this purpose, the slide can travel over the fixed steady rests and the tailstock.

The machine takes its name from the four guides along which the slide, tailstock and steady rests are moved. Precise, wear-free roller guides on a heavy, torsion-resistant bed ensure maximum positioning accuracy of the bed slide. The tailstock and steady rests are precisely guided on screwed-on, hardened and precision-ground steel rails.

Features of the V 90

• Four guides along which the slide, tailstock and steady rests are moved.
• Maximum positioning accuracy thanks to precise, wear-free roller guides on a heavy, torsion-resistant bed.
• The tailstock and steady rests are guided precisely on screwed-on, hardened and precision-ground steel rails.
• Simple and precise changing of the various tool systems from the tool turret, drill stand, milling unit to the grinding unit on a stable quick-release plate.
• Sturdy tailstock with integrated pressure indicator

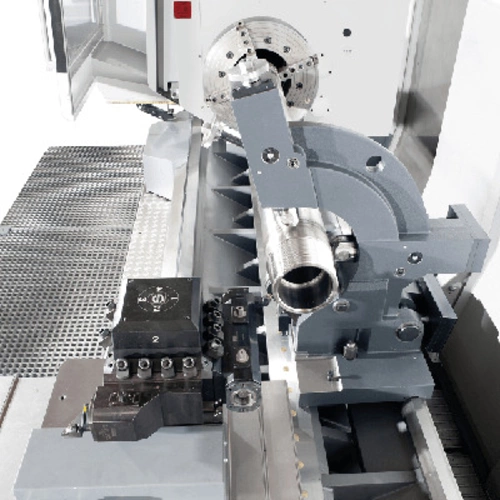

• User-friendly, front-adjustable steady rests in various designs
• Clear arrangement and accessibility of all machine components

Equipment

• Centre width 3,000 mm - 12,000 mm
• Rotation diameter over bed 940 mm
• Speed range from 1 - 900 rpm
• Main drive with 45 kW power at 60 % ED
• Spindle bore 165 mm, 262 mm or 362 mm
• Maximum torque 10,000 Nm
• Display unit with 15″ TFT screen
• Ingenious user-friendly WEILER user interface
• Control panel with all operating elements can be moved separately
• LED machine light
• Increased machine accuracy according to DIN 8606/ 8607

Used in the following sectors: oil and gas industry, wind energy, shipbuilding, hydraulics
