WEILER V110
General information
| Friedrich K. Eisler Straße, 91448 Emskirchen |
| 21.06.2024 |
| 100989 |
Search criteria
| 1160 mm |
| 12000 mm |
| 362 mm |
| 1 Piece |
| 4 Piece |
| 1 Piece |
| nein |
| ja |
| ja |
|
|
| Weiler Werkzeugmaschinen GmbH |
further specifications
|
|
|
| 900 mm |
| 15860 mm |
| 2500 mm |
| 2450 mm |
| 29 t |
Contact us
Report ad
Description
Turning diameter max. 1160 mm, turning length max. 12000 mm for long workpieces, with automatic cycle control
The WEILER V110 is a 4-path precision turning machine with automatic cycle control and embodies the implementation of the WEILER cycle control, known from the E-series and proven a thousand times over, on a 4-path bed lathe. The V-series was developed to produce long workpieces more economically. For this purpose, the slide can travel over the fixed steady rests and the tailstock.
The machine takes its name from the four guides along which the slide, tailstock and steady rests are moved. Precise, wear-free roller guides on a heavy, torsion-resistant bed ensure maximum positioning accuracy of the bed slide. The tailstock and steady rests are precisely guided on screwed-on, hardened and precision-ground steel rails.
Features of the V110
- Four guides along which the slide, tailstock and steady rests are moved.
- Maximum positioning accuracy thanks to precise, wear-free roller guides on a heavy, torsion-resistant bed.

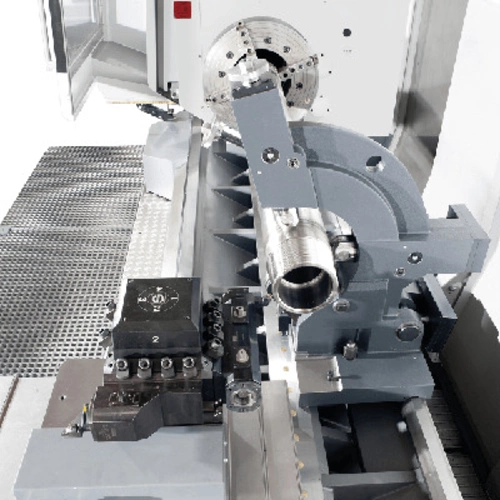

- The tailstock and steady rests are guided precisely on screwed-on, hardened and precision-ground steel rails.
- Simple and precise changing of the various tool systems from the tool turret, drill stand, milling unit to the grinding unit on a stable quick-release plate.
- Sturdy tailstock with integrated pressure indicator
- User-friendly, front-adjustable steady rests in various designs
- Clear arrangement and accessibility of all machine components
Equipment
- Centre width 3,000 mm - 12,000 mm
- Swing diameter over bed 1,160 mm
- Speed range from 1 - 900 rpm
- Main drive with 45 kW power at 60 % ED
- Spindle bore 165 mm, 262 mm or 362 mm
- Maximum torque 10,000 Nm
- Display unit with 15″ TFT screen
- Ingenious user-friendly WEILER user interface
- Control panel with all operating elements can be moved separately
- LED machine light
- Increased machine accuracy according to DIN 8606/ 8607
Used in the following sectors: oil and gas industry, wind energy, shipbuilding, hydraulics
