WEILER Primus VCD
General information
| Friedrich K. Eisler Straße, 91448 Emskirchen |
| 14.06.2024 |
| 100961 |
Search criteria
| 280 mm |
| 500 mm |
| 43 mm |
| 1 Piece |
| 1 Piece |
| nein |
| nein |
| ja |
|
|
| Weiler Werkzeugmaschinen GmbH |
further specifications
|
|
| 210 mm |
| 1570 mm |
| 890 mm |
| 1700 mm |
| 1,05 t |
Contact us
Report ad
Description
Turning diameter max. 280 mm, turning length max. 500 mm, bar diameter max. 43 mm, optionally increased main spindle speed (5,000)

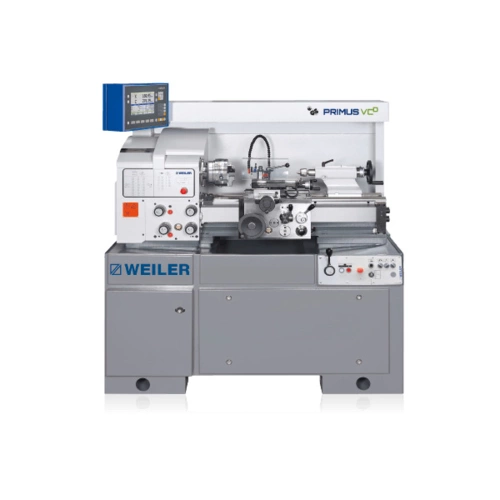

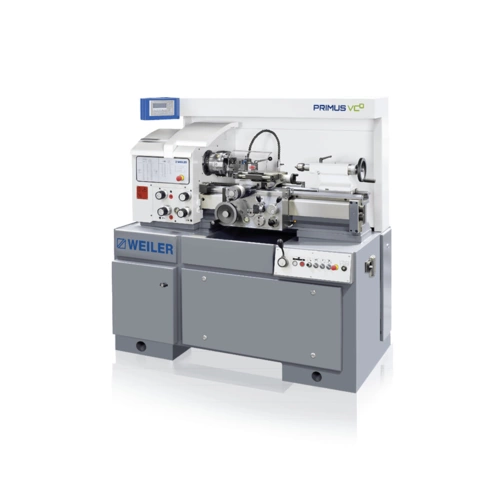

The WEILER Primus VCD for maximum precision and ease of use thanks to modern, high-quality mechanical engineering "Made in Germany"
Weiler's best-selling machine for demanding training combines quality, versatility and ease of use for every user. Naturally, it takes all relevant safety aspects into account to ensure maximum work safety.
Standard equipment
- Braking device for main drive
- LED machine light in the rear panel
- Cone sleeve ME50/MK3
- Centre point MK3
- Multisuisse quick-change steel holder size A with quick-change holder AD 2090
- Travelling chuck guard with limit switch monitoring
- Chip deflector
- Removable chip tray
- Longitudinal fixed stop
- Set of change wheels 21-33-63-120
- Central lubrication
- 5 spare shear pins for lead screw
- Set of operating keys
Special options
- Increased main spindle speed (5,000)
- WEILER VCD screen display
- Three- and four-jaw chuck
- Face plates
- Various clamping devices for collets
- Hollow spindle stops
- Rotating steady rest with sliding jaws
- Fixed steady rest with roller or sliding jaws
- Live centres
- Lever drilling device for tailstock
- Tailstock inclined turret head
- Movable chip guard with viewing window
- Additional LED machine lights
- 230 V socket
- Further accessories on request
Economic efficiency
The Primus VCD offers numerous application possibilities for single part and small batch production, in craft and industrial companies, as well as in tool and fixture construction, which can be significantly expanded with extensive additional equipment.
Quality
The acceptance tolerances according to DIN 8605 are clearly undercut - proof of the high quality of the machine.
