WEILER trainee VCPlus

91448 Emskirchen

0 EUR

bookmark Write a note

Print page

General information

Place 91448 Emskirchen
Creation date 18.06.2024
Ad-ID 100965

Search criteria

Turning diameter max. 320 mm
Turning length max. 650 mm
Bar capacity max. 43 mm
Number of tool stations, not live, max. [items] 1 Piece
Counter spindle? nein
Y-axis? nein
Tailstock? ja
Tool interface [type] 4-fach-Schnellwechsel-Werkzeughalter Parat (Option) Schnellwechsel-Stahlhalter Multi Suisse
Control (manufacturer) Bildschirmanzeige WEILER VCPlus
Machine manufacturer (list selection) Weiler Werkzeugmaschinen GmbH

further specifications

Main spindle speed max. 5000 rpm
Main spindle power max. (100% c.d.f.) 8 kW
Chuck diameter 210 mm
Installation length 1680 mm
Installation width 900 mm
Installation height 1700 mm
Machine weight 1,1 t

Contact us

First name *

Surname *

E-mail address *

Your message *

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Notes on privacy policy

Report ad

Reason *

E-mail address *

Your message *

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Notes on privacy policy

Description

Turning diameter max. 320 mm, turning length max. 650 mm, spindle bore 43 mm, for training and production

The WEILER VCPlus series combines the highest technical quality - in the form of superior long-term precision - with highly efficient, transparent operating concepts for improved training and production.

The series comprises three models: PRIMUS VCPlus, PRAKTIKANT VCPlus and CONDOR VCPlus

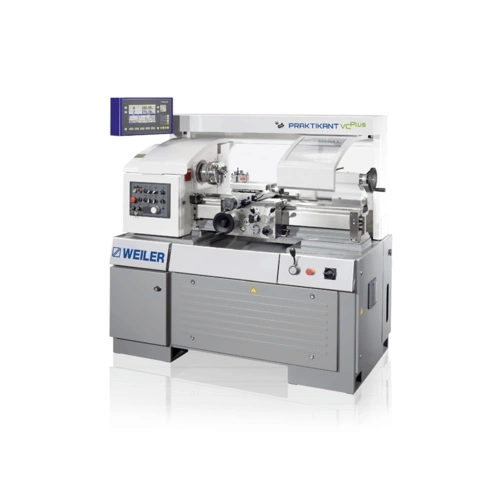

PRAKTIKANT VCPlus

The all-rounder ideal for training with production-related activities.

Centre width: 650 mm
Swing diameter over bed: 320 mm
Spindle bore: 43 mm
Drive power: 100% ED: 8 kW
Total speed range 25-5,000 min-1
Standard equipment
LED machine light in the rear wall
Taper sleeve
Fixed centre point
Multisuisse quick-change steel holder
Movable chuck guard with limit switch monitoring
Movable splash guard
Removable chip tray
Longitudinal fixed stop
Central lubrication
5 spare shear pins for lead screw
Set of operating keys

options

15" WEILER touch screen WTS
Multisuisse quick-change steel holder size B (Praktikant)
Three- and four-jaw chuck
Face plates
Various collet chucks
Electrically monitored safety device for working with collets when the chuck guard is open
Hollow spindle stop
Travelling steady rest with sliding jaws
Fixed steady rest with roller or sliding jaws
Rotating centre point
Lever drilling device for tailstock
Tailstock helical turret
Coolant device
Additional machine light
e-LISSY
Electronic multiple stop
Graphic taper and wheel turning support (WTS)
Special voltage via ballast transformer
Comprehensive splash guard with laminated glass pane
230 V socket
Further accessories on request

Video:

WEILER Werkzeugmaschinen GmbH - conventional turning machine Praktikant VCPlus with touch screen
