WEILER trainee GSD

Turning diameter max. 320 mm, turning length max. 650 mm, bar diameter max. 43 mm, optional: three- and four-jaw chuck, face plates

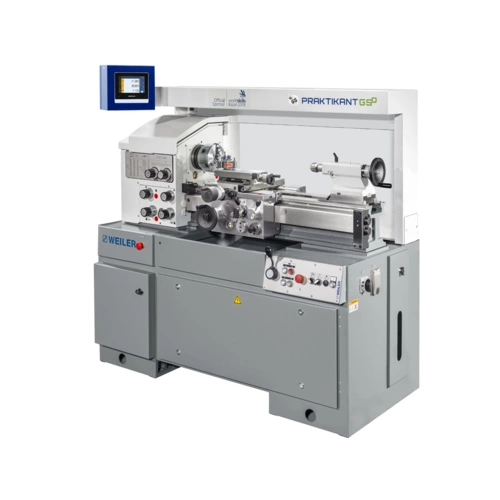

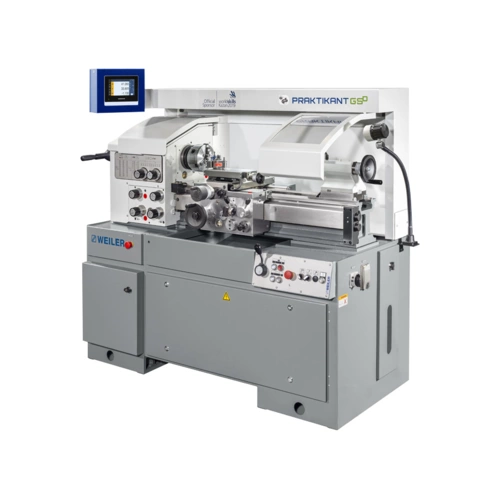

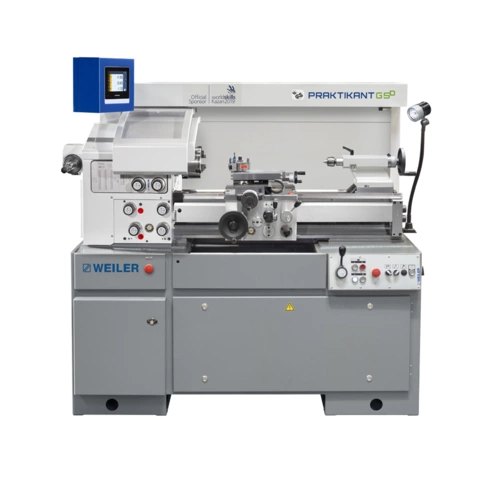

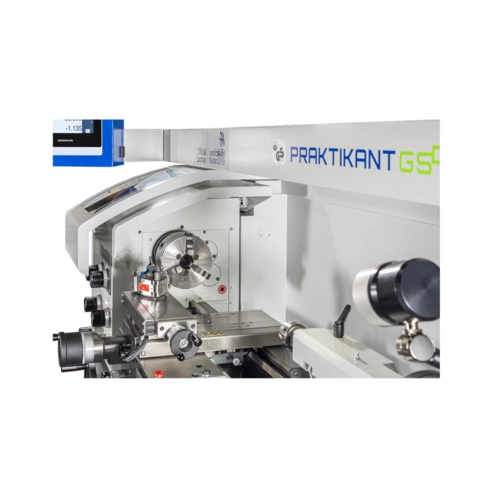

The WEILER Praktikant GSD is one of the best-selling and most popular conventional precision turning machines

Standard equipment

• Braking device for main drive
• LED machine light in the chip guard rear panel
• Taper sleeve ME50/MK3
• Fixed centre point MK3
• Quick-change steel holder Multi Suisse size A incl. 1 interchangeable holder AD 2090
• Sliding chuck protection cover
• Changing wheel cover with limit switch monitoring
• Chip guard rear panel
• Chip deflector hinged on top support
• Longitudinal fixed stop
• Set of change wheels 21-33-63-120
• Central lubrication
• 5 spare shear pins for lead screw
• Set of operating keys

options

• Quick-change steel holder Multi Suisse size B
• Three- and four-jaw chuck
• Face plates
• Clamping devices for draw and pressure collets
• Hollow spindle stops
• Revolving steady rest with sliding jaws
• Fixed steady rests with roller or sliding jaws
• Travelling centre punches
• Lever drilling device for tailstock
• Tailstock slanting turret head
• End switching device for thread cutting
• Coolant device
• Additional machine lights

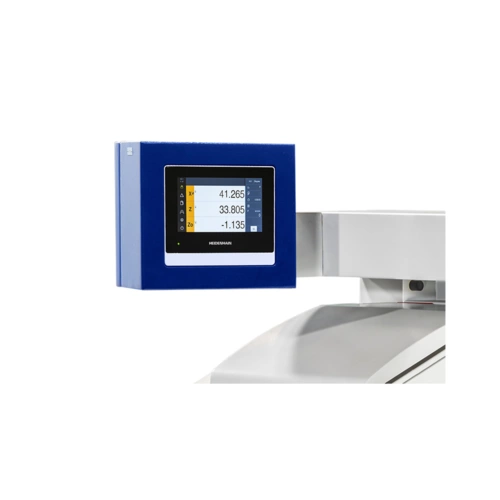

• Numerical position indicator
• Tailstock position indicator
• Chip guard
• Protective device for collet chuck device
• Further accessories on request

Safety features

• Pole-changing main spindle drive
• Automatic handwheel disengagement
• Lead and pull spindle cover
• Spindle brake
• Mitigation of pinch points
• Dual-channel safety technology

Economic efficiency

The Praktikant GSD offers numerous application possibilities for single part and small series production, in craft and industrial companies, as well as in tool and fixture construction, which can be significantly extended by extensive additional equipment.
