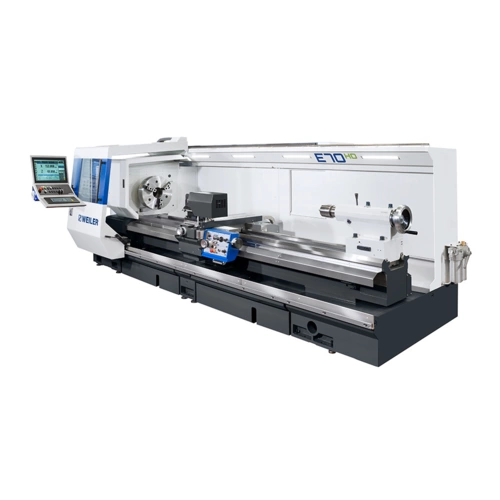

WEILER E70HD

91448 Emskirchen
4102441199
Horizontal turning machine
bookmark Write a note
Print page
facebook Twitter/X WhatsApp Share by e-mail Share advert
WEILER E70HD

General information

Friedrich K. Eisler Straße, 91448 Emskirchen
19.06.2024
100980

Search criteria

720 mm
6000 mm
216 mm
1 Piece
8 Piece
8 Piece
nein
nein
ja
  • 4-fach Werkzeugkopfrevolver Sauter (Option)
  • 4-fach-Schnellwechsel-Werkzeughalter Parat (Option)
  • 8-fach Scheibenrevolver Sauter (Option)
  • 8-fach Scheibenrevolver mit AGW Sauter (Option)
  • Schnellwechsel-Stahlhalter Multi Suisse
  • SIEMENS Sinumerik ONE
  • Weiler one1
Weiler Werkzeugmaschinen GmbH

further specifications

  • 30 kW
  • 3000 rpm
  • 32 Nm
700 mm
8800 mm
2760 mm
2050 mm
9,4 t

Send advert

We will forward your message to the e-mail address you entered.

A problem has occurred while sending your message. Please check your details or contact the publisher.

Contact us

Thank you for your message, it will be forwarded to the provider.

A problem has occurred while sending your message. Please contact the publisher.

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Report ad

Thank you for your message, it will be forwarded to the provider.

A problem has occurred while sending your message. Please contact the publisher.

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Description

Turning diameter max. 720 mm, turning length max. 6000 mm, maximum torque 3,400 Nm, e-TIM energy-saving system

The all-rounder E70HD for the highly productive sector with high cutting performance with turning lengths of up to 6 metres and spindle bores of up to 216 mm.

Weiler E-series machines: Their ergonomics, user-friendliness and long-term precision are the basis for fast, flawless results. What makes them unique is the unrivalled user-friendly control interface developed by Weiler. This allows numerous cycles stored in the control system to be called up at the touch of a button. They then run automatically, either individually or in sequence. This pays off for you: through shorter programming times and significantly more efficient individual and small batch production.

Up to 3 x more efficient: In total, each electric machine can replace up to three conventional machines. Thanks to state-of-the-art, energy-saving drives, energy consumption is also maximised.

E70HD and E80HD - user-friendly giants

As with the smaller machines, the good accessibility and operability is also maintained with the machine sizes E70HD and E80HD.

The machines in the E70HD and E80HD series

  • are equipped with high drive power and a mechanical headstock gearbox for high torques
  • offer large spindle bores: 128, 165 and 216 mm
  • are accepted with increased accuracy (toolmaker's accuracy DIN 8605) even in this size
  • can be equipped with many tried and tested tool systems and additional equipment to further increase productivity

Equipment E70HD

  • Centre width 1,000 mm - 6,000 mm
  • Rotation diameter over bed 720 mm
  • Speed range from 1 - 1,800 rpm
  • Main drive with 37 kW power
  • Spindle bore 128 mm or 165/216 mm
  • Maximum torque 3,400 Nm
  • Display unit with 22″ touchscreen
  • Ingenious user-friendly WEILER user interface
  • Control panel with handwheels moves with the bed slide and also enables precise manual work
  • "e-TIM" energy-saving system minimises power consumption
  • LED machine light
  • Increased machine accuracy in accordance with DIN 8605
