WEILER E60
- Erstellungsdatum:
General information
| Friedrich K. Eisler Straße, 91448 Emskirchen |
| 19.06.2024 |
| 100979 |
Search criteria
| 650 mm |
| 2000 mm |
| 83 mm |
| 1 Piece |
| 8 Piece |
| 8 Piece |
| no |
| no |
| yes |
|
|
| Weiler Werkzeugmaschinen GmbH |
further specifications
|
|
|
|
| 500 mm |
| 4600 mm |
| 2600 mm |
| 2600 mm |
| 6,4 t |
Contact us
Report ad
Description
Turning diameter max. 650 mm, turning length max. 2000 mm, energy saving system e-TIM, machine accuracy according to DIN 8605

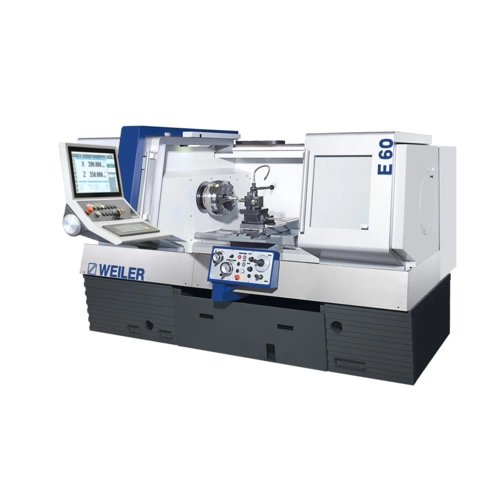

The heavy-duty, powerful and energy-efficient E60 production turning machine from WEILER.
Weiler E-series machines: Their ergonomics, user-friendliness and long-term precision are the basis for fast, flawless results. What makes them unique is the unrivalled user-friendly control interface developed by Weiler. This allows numerous cycles stored in the control system to be called up at the touch of a button. They then run automatically, either individually or in sequence. This pays off for you: through shorter programming times and significantly more efficient individual and small batch production.
Up to 3 x more efficient: In total, each electric machine can replace up to three conventional machines. Thanks to state-of-the-art, energy-saving drives, energy consumption is also maximised.
E60 - a strong concept and pure power
The E60 impresses with its well-balanced machine concept and high cutting performance. A main drive with 25 kW drive power in conjunction with a two-stage ZF gearbox is available for this purpose.
The robust headstock, the strong, precision-bearing mounted main spindle with 83 mm spindle bore and the stable, heavily ribbed bed with a width of 380 mm guarantee optimum work results in terms of surface quality and precision.
The swivelling screen unit offers increased ease of use when entering data.
Equipment
- Centre width 1000 mm - 2000 mm
- Rotation diameter over bed 650 mm
- Speed range 1 - 2500 rpm
- Main drive with 25 kW power and two-stage gearbox
- Maximum torque 1700 Nm
- Spindle bore 83 mm
- Ergonomically tiltable screen unit 22″ touchscreen
- Ingenious user-friendly WEILER user interface
- Control panel with handwheels moves with the bed slide and also enables precise manual work
- "e-TIM" energy-saving system minimises power consumption
- LED machine light
- Machine accuracy according to DIN 8605
