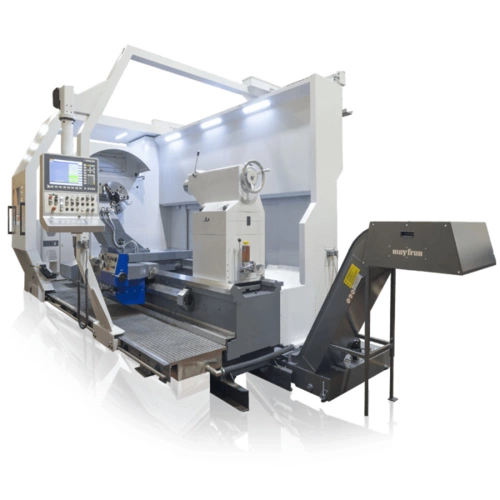

WEILER E150

Turning lengths up to 15 metres, turning diameters up to 1500 mm, spindle bores up to 450 mm, for heavy workpieces and high cutting performance

Intelligent equipment options on the WEILER E150 offer maximum efficiency from turning to milling.

The upper class of precision turning machines from Weiler's E-series, powerful and energy-efficient with optimum accessibility: its ergonomics, user-friendliness and long-term precision are the basis for fast, flawless results. What makes them unique is the unrivalled user-friendly control interface developed by Weiler. This allows numerous cycles stored in the control system to be called up at the touch of a button. They then run automatically, either individually or in sequence. This pays off for you: through shorter programming times and significantly more efficient individual and small batch production.

Up to 3 x more efficient: In total, each electric machine can replace up to three conventional machines. Thanks to state-of-the-art, energy-saving drives, energy consumption is also maximised.

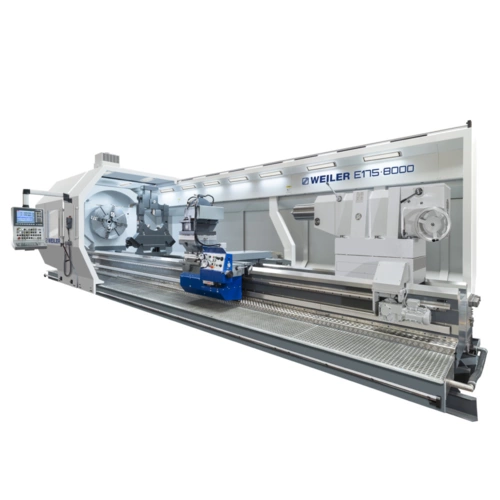

E150, E175 and E200 - record holders in size and precision

The three heaviest machines in the Weiler E series are in the absolute top class, both in terms of their weight and the dimensions of the workpieces. They are also based on the proven Weipert concept that Weiler has been building on for decades. Customised special solutions are our strength.

The machines in the 150 to 200 series

• are available with turning lengths from 2,000 to 15,000 mm and longer
• can be equipped with large spindle bores: 262, 362 and 450 mm
• are equipped with high drive power and a mechanical headstock gearbox with automatic shifting for high torques
• offer good accessibility and optimum chip and splash protection despite their dimensions thanks to a wide range of sliding hood solutions
• can be equipped with many tried-and-tested tool systems and additional equipment to further increase productivity

E150 equipment

• Centre width 2,000 mm - 15,000 mm
• Rotation diameter over bed 1,500 mm
• Speed range from 1 - 900 rpm
• Main drive with 65 kW power
• Spindle bore 165 mm or 262/362/450 mm
• Maximum torque 15,000 Nm
• Display unit with 22″ touchscreen
• Ingenious user-friendly WEILER user interface
• Control panel with handwheels moves with the bed slide and also enables precise manual work
• "e-TIM" energy-saving system minimises power consumption
• LED machine light
• Machine accuracy according to DIN 8607
