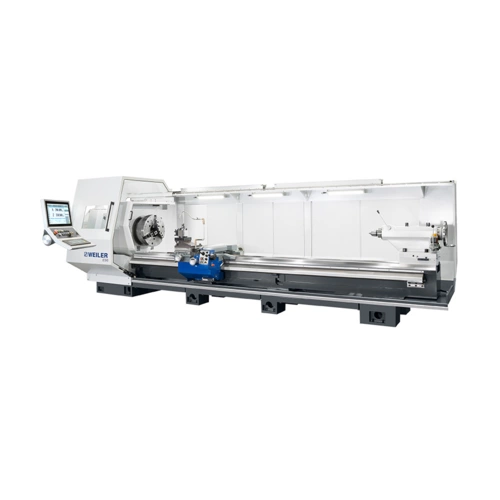

WEILER E120
General information
| Friedrich K. Eisler Straße, 91448 Emskirchen |
| 20.06.2024 |
| 100984 |
Search criteria
| 1200 mm |
| 15000 mm |
| 362 mm |
| 1 Piece |
| 12 Piece |
| 12 Piece |
| nein |
| ja |
| ja |
|
|
| Weiler Werkzeugmaschinen GmbH |
further specifications
|
|
|
| 2500 rpm |
| 50 Nm |
| 1000 mm |
| 14300 mm |
| 2900 mm |
| 2350 mm |
| 14,5 t |
Contact us
Report ad
Description
Turning lengths up to 15 metres, turning diameters up to 1200 mm, spindle bores up to 362 mm, for heavy workpieces and high cutting performance
Intelligent equipment options on the WEILER E120 offer maximum efficiency from turning to milling.
Weiler E-series machines: Their ergonomics, user-friendliness and long-term precision are the basis for fast, flawless results. What makes them unique is the unrivalled user-friendly control interface developed by Weiler. This allows numerous cycles stored in the control system to be called up at the touch of a button. They then run automatically, either individually or in sequence. This pays off for you: through shorter programming times and significantly more efficient individual and small batch production.
Up to 3 x more efficient: In total, each electric machine can replace up to three conventional machines. Thanks to state-of-the-art, energy-saving drives, energy consumption is also maximised.
E90, E110 and E120 - precise giants
The models in this series play in the heavyweight class - all models can process respectable workpiece weights of up to 10,000 kg. This model series is also characterised by good accessibility and operability.
The machines in the 90 to 120 series
- are available with turning lengths from 2,000 to 15,000 mm and longer
- can be equipped with spindle bores of 128, 165, 262 and 362 mm
- are equipped with high drive power and a mechanical headstock gearbox for high torques
- can be equipped with many tried and tested tool systems and additional equipment to increase productivity
- are approved in this size with increased accuracy in accordance with DIN 8606
Equipment E120
- Centre distance 2,000 mm - 15,000 mm
- Swing diameter over bed 1,200 mm
- Speed range from 1 - 1,900 rpm
- Main drive with 45 kW power
- Spindle bore 165 mm or 262/362 mm
- Maximum torque 10,000 Nm
- Display unit with 22″ touchscreen
- Ingenious user-friendly WEILER user interface
- Control panel with handwheels moves with the bed slide and also enables precise manual work
- "e-TIM" energy-saving system minimises power consumption
- LED machine light
- Increased machine accuracy in accordance with DIN 8606
