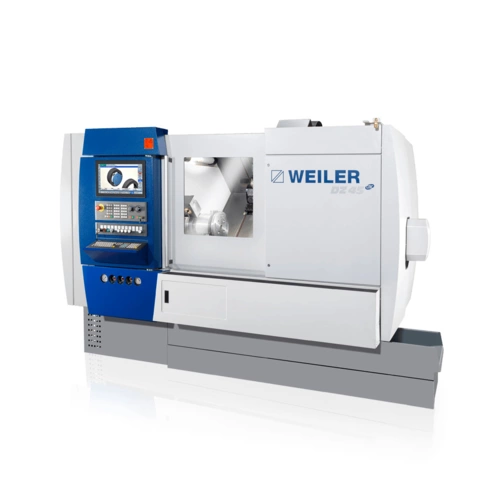

WEILER DZ45
General information
| Friedrich K. Eisler Straße, 91448 Emskirchen |
| 21.06.2024 |
| 100990 |
Search criteria
| 240 mm |
| 500 mm |
| 42 mm |
| 1 Piece |
| 16 Piece |
| 16 Piece |
| ja |
| ja |
| ja |
|
| Weiler Werkzeugmaschinen GmbH |
further specifications
|
|
|
|
|
|
| 4500 rpm |
| 5.2 kW |
| 160 mm |
| 3180 mm |
| 2050 mm |
| 2200 mm |
| 6 t |
Contact us
Report ad
Description
Turning diameter max. 240 mm, turning length max. 500 mm, shortest non-productive times thanks to high rapid traverse speeds
Advantages through ergonomics
Thanks to its ergonomic design, the DZ45 CNC guarantees particularly easy handling and very short set-up times.
The CNC precision turning machine for highly productive areas in production, toolmaking and research institutes, as well as in training and further education.
Features
- Solid and compact machine design
- Turning diameter 240 mm
- Turning length approx. 500 mm
- Bar capacity 42 mm
- Main drive with 21.5 kW
- Powerful axis drives
- Suitable for chuck, bar and shaft machining
- Y-axis for machining complex workpieces
- Counter spindle
- Up to 16 driven tools
- Complete machining of workpieces in one clamping operation
- High rapid traverse speeds
- High accuracy due to direct path measuring system
- Wide range of possible applications
- Integrated safety function in all axes (safety integrated)
- LED machine light
High precision
- Rigid base
- Linear scale in X-axis
- High-quality, heavily ribbed grey cast iron bed ensures high rigidity
- Linear guides for maximum dynamics and precision
- Precise work spindle bearings
- High positioning accuracy
- High thermal stability
High productivity
- Shortest non-productive times thanks to high rapid traverse speeds
- Short turret swivelling time
- Short ramp-up times thanks to innovative drive concept
- Digital drive technology
- Dynamically powerful axis and spindle drives
- High operational reliability
- Working spindle lubricated for life
- Fully automatic centralised lubrication
- Long maintenance intervals
- Spindle motor air/water-cooled
- Electrically monitored safety clutches in all axes
- Tailstock can be moved in the programme via its own axis
- Rapid clamping pressure adjustment via pressure control valves with integrated
- pressure switch setting
