WEILER DA 210
- Erstellungsdatum:
General information
| Friedrich K. Eisler Straße, 91448 Emskirchen |
| 18.06.2024 |
| 100970 |
Search criteria
| 435 mm |
| 1500 mm |
| 52 mm |
| 1 Piece |
| no |
| no |
| yes |
|
|
| Weiler Werkzeugmaschinen GmbH |
further specifications
|
| 300 mm |
| 2750 mm |
| 1100 mm |
| 1450 mm |
| 1,5 t |
Contact us
Report ad
Description
Turning diameter max. 435 mm, turning length max. 1500 mm, tapered sleeve for main spindle MK 4, optional three- and four-jaw chuck

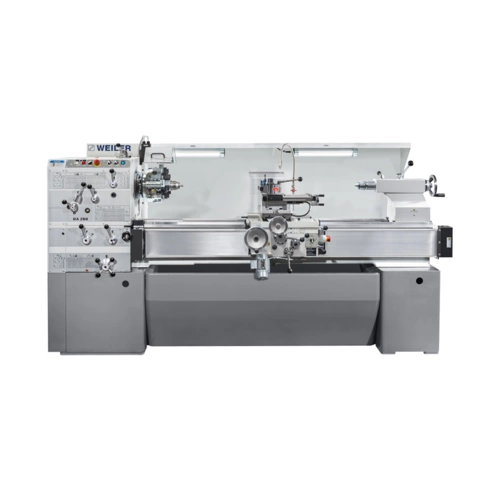

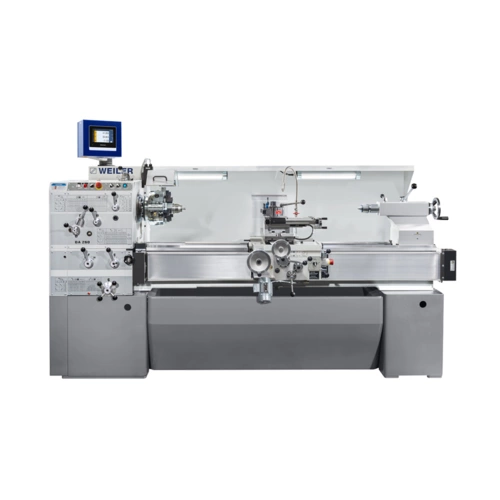

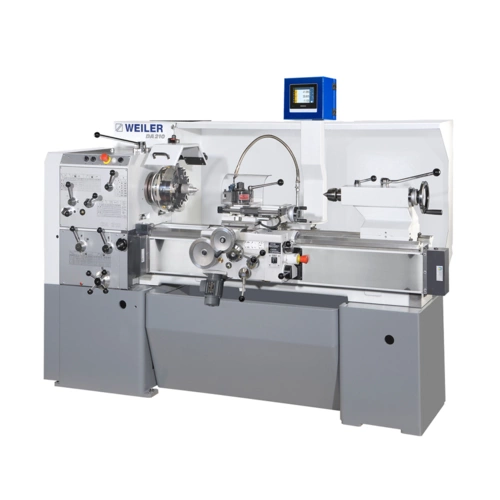

DA 210
The high-quality universal turning machines in the DA series are characterised by their solid and robust quality and guarantee maximum safety and ease of use. For decades, they have guaranteed maximum precision combined with powerful drive performance in a wide range of applications.
Standard equipment
- Coolant device
- Chip guard rear panel
- Roller conveyor cover for lead and draw spindles
- Multisuisse quick-change steel holder size B with 1 change holder
- Chuck guard with limit switch monitoring
- Chip deflector on top support
- Change wheel door with limit switch monitoring
- Longitudinal stop with micrometer screw
- Tailstock sleeve with anti-rotation lock and ejector slot
- Taper sleeve for main spindle MK 4 (DA 210) MK 5 (DA 260)
- Fixed centre point MK 4 (DA 210) MK 5 (DA 260)
- LED machine light in the chip guard rear panel
- Oil pusher
- Set of operating keys
- Operating manual with spare parts lists
- Machine card
Machine options
- Three- and four-jaw chuck
- Face plate
- Collet chuck
- Driving disc with protective ring and driver
- Travelling centre point
- 6-fold longitudinal stop
- Hollow spindle stop
- Rotating steady rest with sliding jaws
- Fixed steady rest with roller jaws
- Movable comprehensive chip guard with viewing window
- Rapid traverse longitudinal and plane

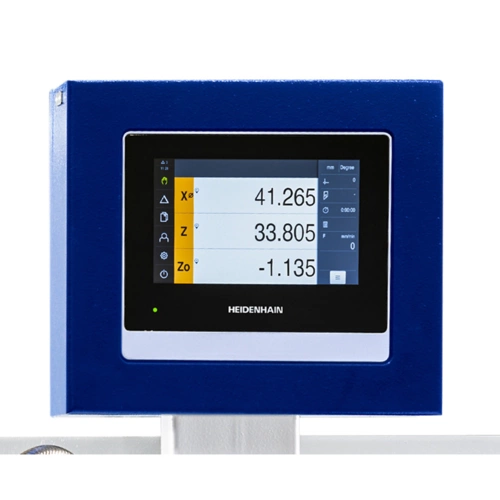

- Digital position indicator for 3 axes
- Taper turning device (guide ruler) for 350 mm taper length
- Rear steel holder on the facing slide
- Machine set-up elements
