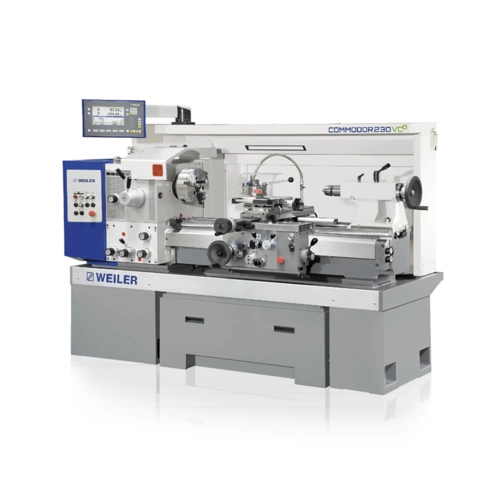

WEILER Commodor 230 VCD

Turning diameter max. 475 mm, turning length max. 1000 mm, single part and small series production, acceptance tolerances according to DIN 8605 significantly undercut

The user-friendly mechanical giant for maximum cutting performance

The Commodor series has been the benchmark for long-term precision for decades. The tried-and-tested, high-quality and powerful production lathes are designed for universal use in industry, toolmaking, trade and training.

The range consists of three models: Commodor 180 GSD, Commodor 180 VCD, Commodor 230 VCD

Standard equipment

• Tailstock with pressure relief
• Central lubrication
• Braking device for main drive
• Socket for machine light 230 V
• Lead and traction spindle cover
• Taper sleeve MK6/MK4
• Centre point MK4
• Multisuisse quick-change steel holder size B with interchangeable holder BD 25140
• Travelling chuck guard with limit switch monitoring
• Machine rear panel
• LED machine light
• Chip deflector
• Longitudinal fixed stop
• Set of changeable wheels 33-56-88-120
• Coolant device
• 5 spare shear pins for lead screw and change wheel
• Set of operating keys
• Operating manual with spare parts catalogue also on data carrier
• Machine card
• Main drive with built-in brake

Options

• Live centres
• Rotating steady rest with sliding jaws
• Fixed steady rest with roller or sliding jaws
• Hollow spindle stops
• Three- and four-jaw chucks
• Face plates
• Various clamping devices for collets
• Sliding protective covers
• Digital displays
• Constant cutting speed (VCD version only)
• Further accessories on request

Economic efficiency

The Commodor series offers numerous application possibilities for single part and small batch production, in craft and industrial companies as well as in tool and fixture construction, which can be significantly extended by extensive additional equipment.

Quality

The acceptance tolerances according to DIN 8605 are clearly undercut - proof of the high quality of the machine.
