WEILER C35HD

Entry into digital turning, diameter ranges of 360 mm, centre distances of 800 mm, simple operation

Servo-conventional turning machines

The C series of servo-conventional turning machines from Weiler forms the bridge between conventional turning machines and cycle lathes. With them, the user can concentrate on the essentials. Setting a speed on the gearbox or changing change gears to cut threads is no longer necessary with servo-conventional turning machines. This reduces sources of error and increases productivity.

The two models C35HD and C50HD combine state-of-the-art drive technology with a unique operating concept developed by Weiler. Operators used to conventional turning machines can easily and quickly produce complex workpieces with a servo-conventional machine. It's just simpler, faster, more precise and more economical than manual turning.

Performing simple turning tasks with conventional turning machines has long proven its worth. Especially because of the simple handling of the machine. On the one hand, the C35HD/C50HD have adopted everything that is simple, practical and profitable that characterises conventional turning machines - but on the other hand, they have gained significantly in importance thanks to modern drive and control technology and Weiler know-how.

The C series comprises two models: the C35HD is suitable for diameter ranges of 360 mm and centre distances of 800 mm, while the C50HD has a diameter range of 570 mm and centre distances of 1000/2000 mm. Both have a powerful 9 kW main spindle housed in a thermo-symmetrically designed headstock, which ensures smooth running across the entire speed range. The precision-ground ball screw spindles and stable guides also ensure high contour accuracy and long-term precision.

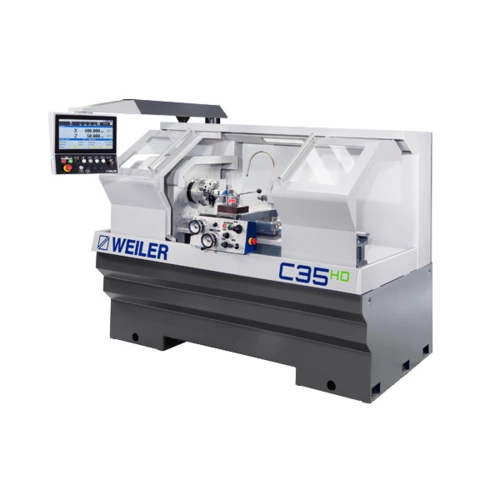

C35HD

The smallest servo-conventional precision turning machine from WEILER. High-quality, powerful and energy-efficient. The precision turning machine for highly productive applications in production, toolmaking, research institutes, repair, but also in education and training.

Economic efficiency

Shorter set-up times and greater ease of use thanks to orientated main spindle stop, where the spindle or chuck comes to a standstill at the preselected chuck key position

Rapid adaptation to the machining task, shorter machining times thanks to

• Constant cutting speed

• Threading of all thread types while the main spindle is running

• Simple recutting of existing threads

• Grooving cycle for a wide range of grooving geometries

As well as

• Radius and taper turning

• Storage option for tool data and machining cycles

• Cutting edge radius compensation ensures maximum contour accuracy

• Clamping cycle

• Stop turning in both axes without mechanical adjustments

• Automatic central lubrication of the guideways and the ground ball screw spindles
