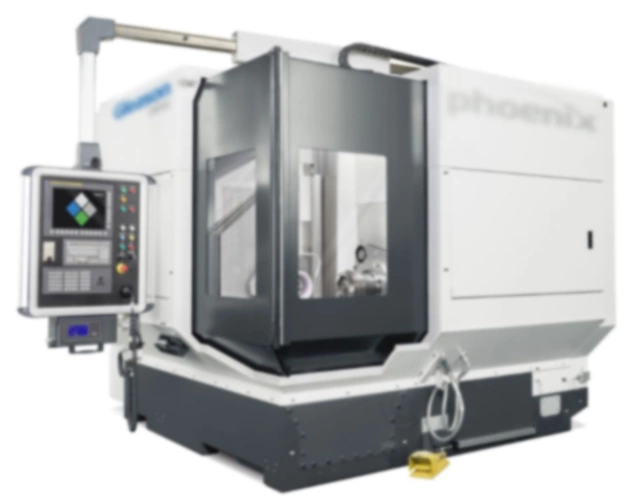

Gear grinding machine ID 101638
- Erstellungsdatum:
General information
| 05.08.2025 |
| 101638 |
Search criteria
| 8,5 mm |
| 280 mm |
| 229 mm |
|
| upon request |
further specifications
| 95 ° |
| 25 - 340 mm |
| 8000 rpm |
| 900 rpm |
| 3750 mm |
| 3000 mm |
| 2800 mm |
| 15,9 t |
Contact us
Report ad
Description

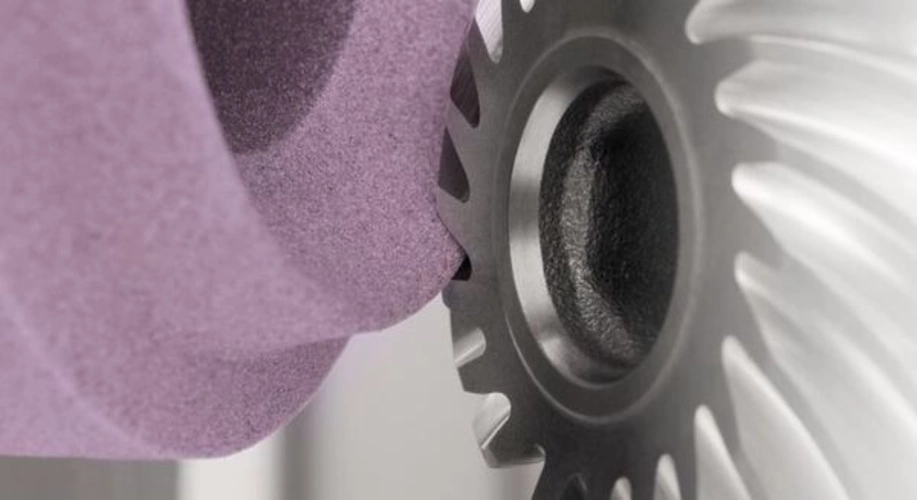

For bevel gears in automobiles and light trucks
Number of teeth 1-300, tooth depth max. 20 mm, tooth width max. 58 mm
The gear grinding machine meets the requirements for improved bevel gear grinding performance with a highly productive new design that is simpler, more reliable, and easier to operate and maintain.
A working area specially designed for removing grinding sludge and featuring an integrated dressing unit with a unique telescopic design. This allows it to move into the working area during the dressing process and then retract flush with the casing during the grinding process. Clean and uncluttered machine working area to minimize grinding sludge deposits.
An automatic material distributor mounted in close proximity to the work spindle ensures consistently high gear quality by determining the position of the tooth gap with extreme precision and reliability. Material distribution takes place simultaneously with the dressing of the grinding wheel to reduce unproductive downtime. Excellent quality, higher accuracy, and repeatability thanks to the rigid monolithic column design.
Flexibility and versatility for a wide range of gear geometries such as spiral bevel gears, hypoid gears, straight bevel gears, crown gears, planetary gears, hypoid gears, and high-ratio bevel gears.
