Gear grinding machine ID 101481

Generating/profile grinding Workpiece diameter max. 380/380 mm, position above table min. 60 mm, grinding worm dimensions (D x L x W) 200 x 200 x 76.2 mm or 275 (320) x 160 x 160 or 320 x 250 x 110 mm, tangential path 270 / 230 / 350 mm

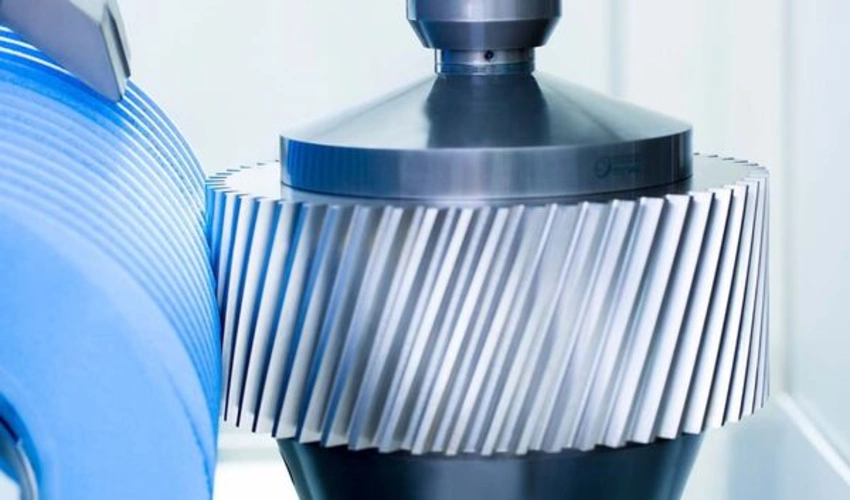

Generating grinding, profile grinding and internal grinding in one machine

This machine tool was developed for universal use and large series production, because flexibility is the be-all and end-all for job shops and single-part manufacturers. The machine combines the three technologies of generating grinding, profile grinding and internal grinding. This technological versatility offers maximum benefits and is a good investment for the future.

External automation in the form of a plastic chain conveyor or a robot system is used for the production of large quantities.

The machine tool is the most powerful generating and profile grinding machine on the market in its class.

Overview

• High quality and reliability across the entire series
• Fast loading thanks to integrated ring loader
• Small footprint
• Easy to maintain

Axes

A1 - Swivelling movement of tool
B1 - Rotary movement of tool
B3 - Rotary movement of dresser
C2 - Rotary movement of workpiece
C3 - Rotary movement of ring loader13
C5 - Swivelling movement of dresser
V1 - Tangential movement of tool
X1 - Radial movement of column slide
Z1 - Axial movement of grinding head
Z4 - Vertical movement of counter column
