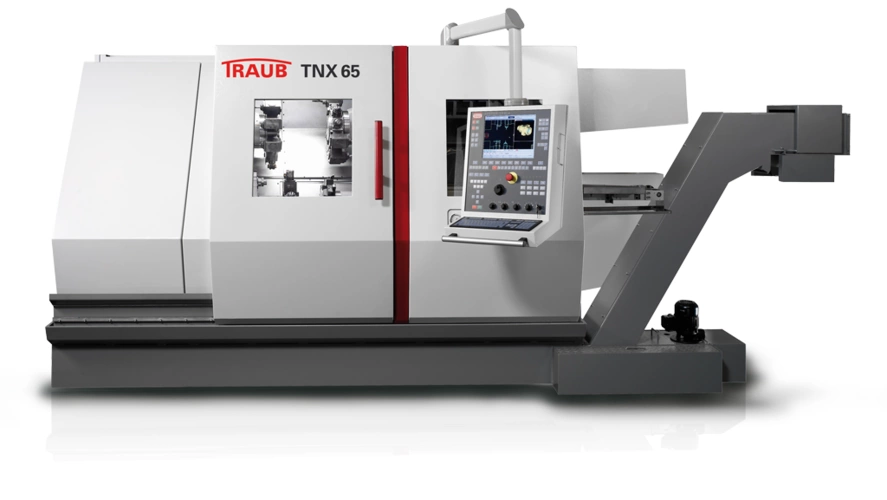

TRAUB TNX65
General information
| Plochinger Straße 92, 73730 Esslingen am Neckar |
| 05.06.2024 |
| 100935 |
Search criteria
| 650 mm |
| 175 mm |
| 65 mm |
| 4 Items |
| ja |
| ja |
| ja |
|
|
| INDEX-Werke GmbH & Co.KG Hahn & Tessky |
further specifications
| 40 mm |
| 175 mm |
| 80 mm |
| 650 mm |
| 175 mm |
| 80 mm |
| 650 mm |
| 10 Items |
|
| 6000 rpm |
| 17 Nm |
| 2258 mm |
| 10 t |
Contact us
Report ad
Description

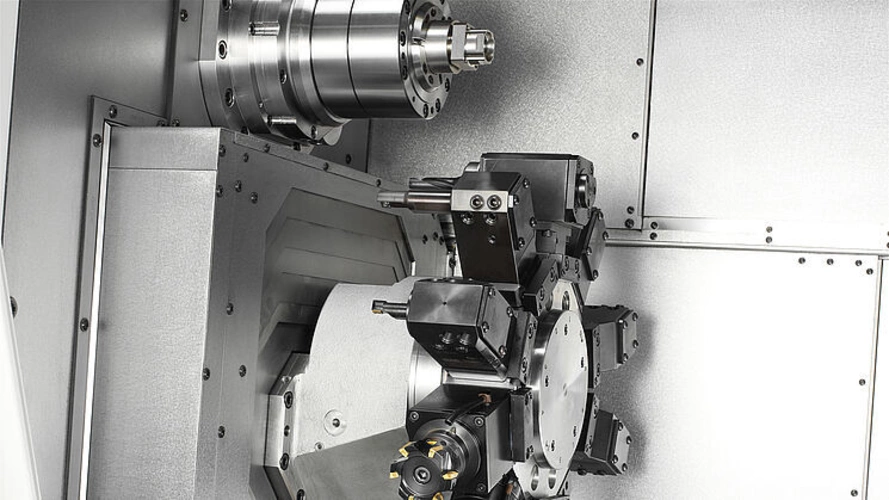

4 identical turrets with independent Y-axis, identical indexing areas and the same number of tool stations: The TRAUB TNX65/42 sets new standards in high-performance machining.

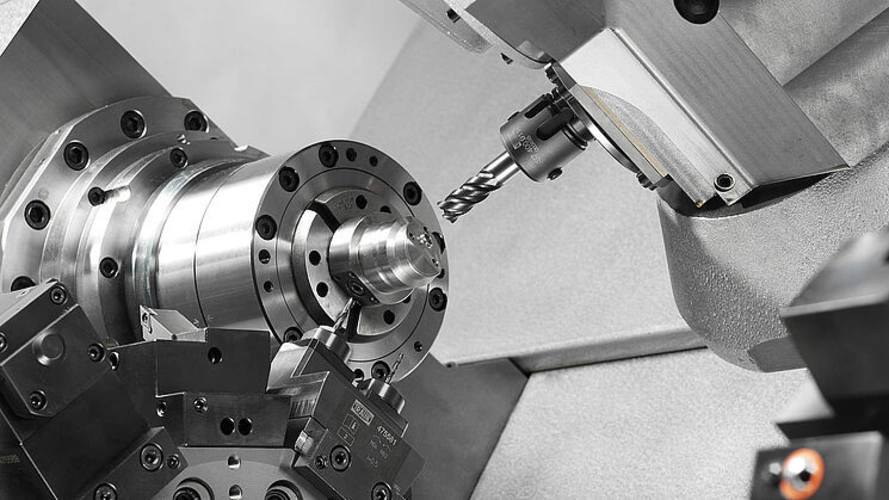

The pioneering machine concept with the new, unique milling unit offers previously unimagined possibilities for the integration of machining processes.
The concept stands for flexibility and productivity on an unprecedented scale. The new milling unit impresses with chip-to-chip times previously only known from tool turrets.
Machine concept

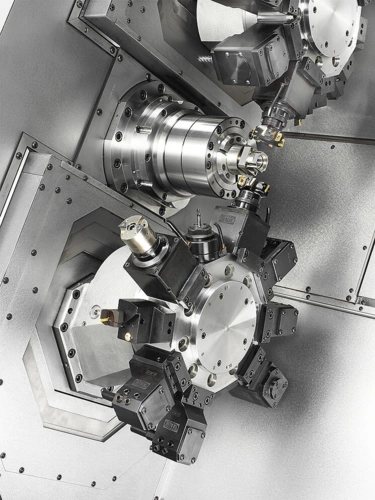

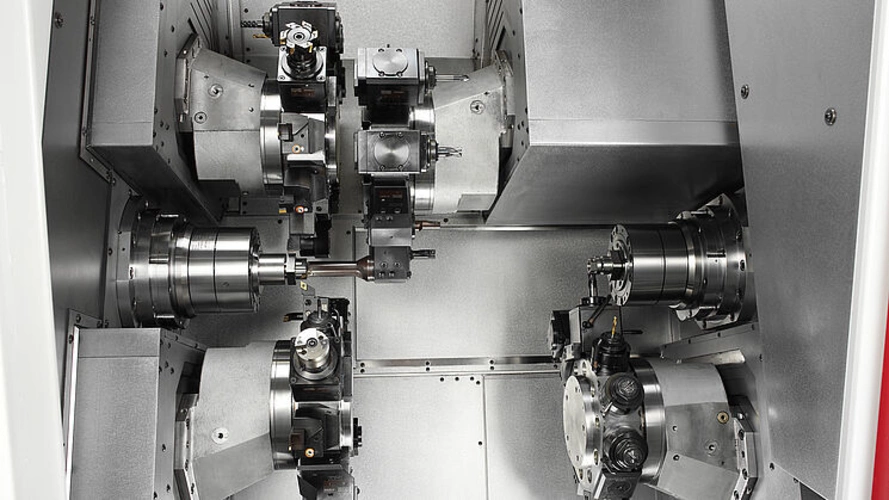

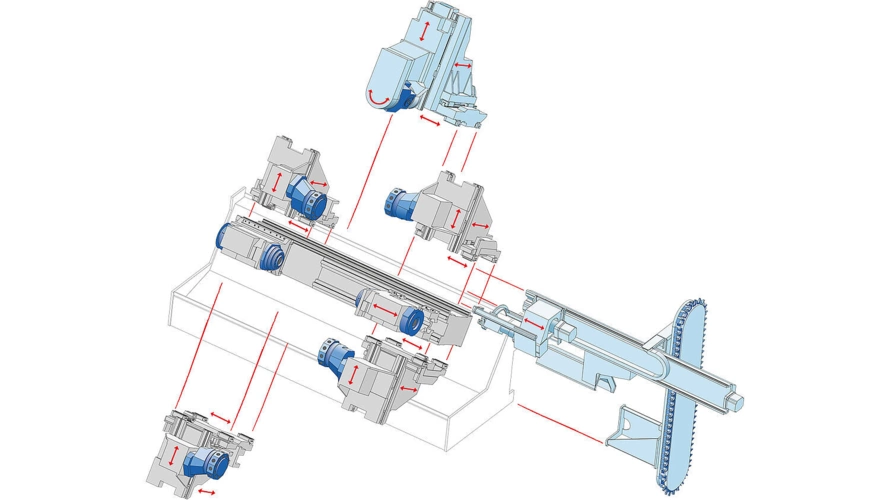

- Fourfold functional symmetry, i.e. 4 identical turrets with independent Y-axis, with the same indexing areas and the same number of tool stations

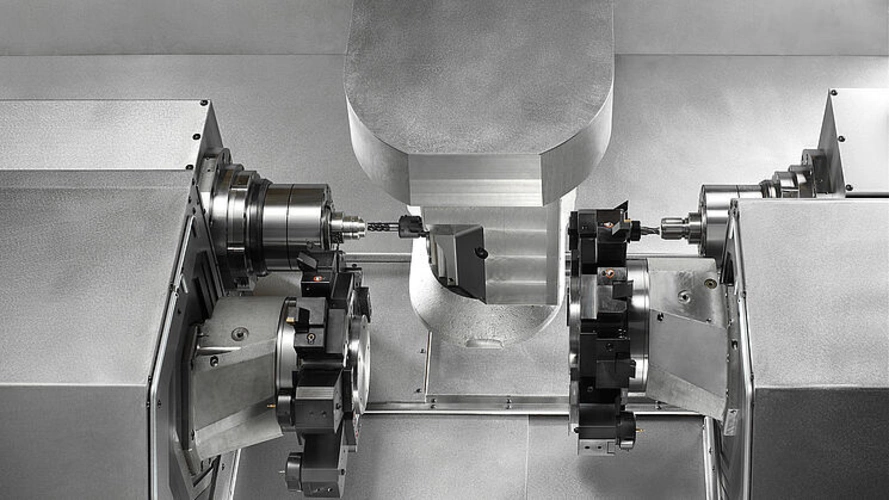

- Free assignment of the tool carriers to both spindles
- powerful drives on the main and counter spindles ensure optimum cutting performance
- powerful tool drives on all turrets enable perfect complete machining
Low set-up effort
- Precise tool holder change repeat accuracy (TRAUB patent)
- High tool stock with up to 80 tools in 4 turrets
High capacity utilisation thanks to an exceptionally wide range of applications
- for a wide variety of workpieces and batch sizes
- Highly productive due to simultaneous use of up to 4 tool carriers
- High integration options for a wide range of machining processes
- Bar, chuck or shaft machining possible
Top performance with just 2 turrets
One tool holder for all turrets and all machining centres.
Thanks to the double-sided gear manufacturing of our tool holders (TRAUB patent), you can use the cutting tools on the main and counter spindles. In conjunction with the high-precision tool holder positioning, set-up times are significantly reduced. Alignment of the tools is therefore not necessary.
