TRAUB TNX200

Three tool carriers with up to 169 tools for high flexibility, machining of small to medium-sized workpieces with high complexity and variance, large-dimensioned work area: The TRAUB TNX200 is an innovative turning-milling centre in a class of its own.

Based on a rigid and vibration-damping machine bed in mineral-cast block construction and generously dimensioned linear guides in the X and Z axes, this series stands for modern mechanical engineering and therefore for excellent machining results with high productivity. Three tool carriers with a tool stock of up to 169 tools offer maximum flexibility for the complete machining of complex workpieces.

A total of up to 16 productive axes ensure convincing work results without exception.

The large work area, which is unique in this class, impresses with sophisticated equipment features that enable simultaneous machining with all three tool carriers without collisions. The smooth and steeply sloping stainless steel interior panelling ensures optimum chip fall. The chip conveyor can be mounted on the right or left, depending on customer requirements.

The TRAUB TNX200 is suitable for the production of a wide range of products in many industries, such as mechanical engineering, automotive and aerospace.

Machine concept

• Identical main and counter spindle with spindle passage Ø 76 mm
• Chuck up to a maximum of Ø 230 mm
• 3 tool carriers for up to 169 tools

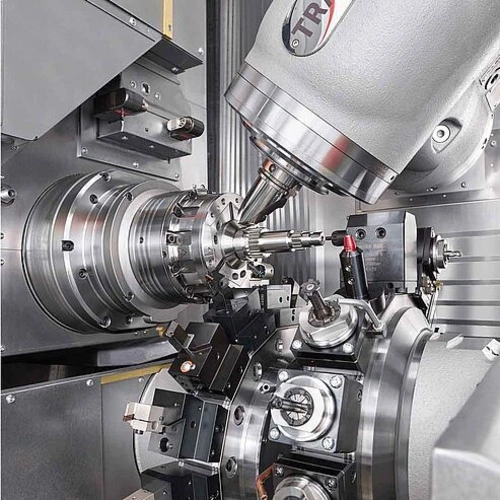

• Powerful motorised milling spindle with proven Y/B quill kinematics for complex 5-axis milling operations (TNX220 version)
• Sophisticated work area concept for turning lengths of up to 900 mm and variable machining options
• High thermal and mechanical stability
• High dynamics (rapid traverse rates up to 50 m/min)
• High ease of set-up
• Mechanical engineering "Made in Germany"

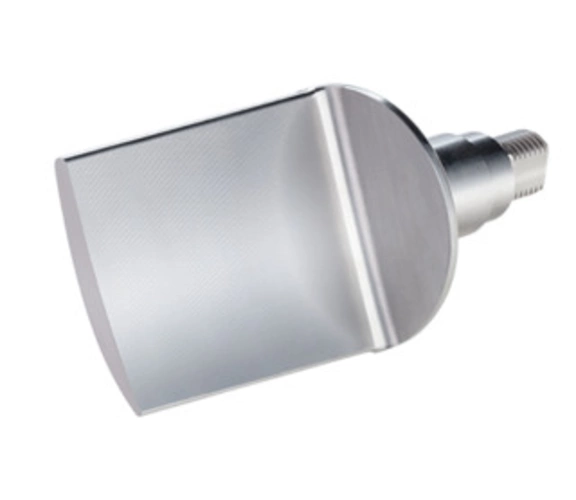

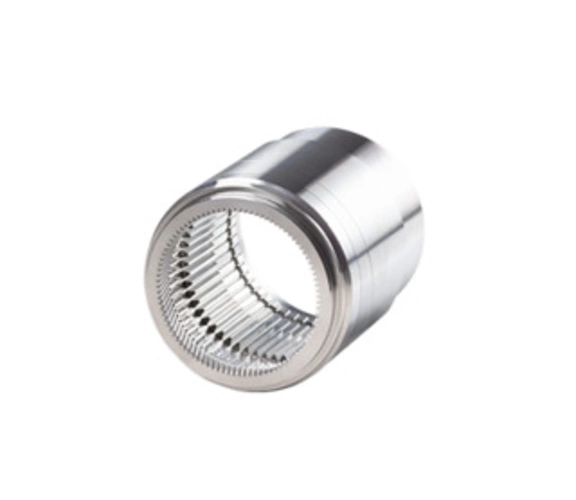

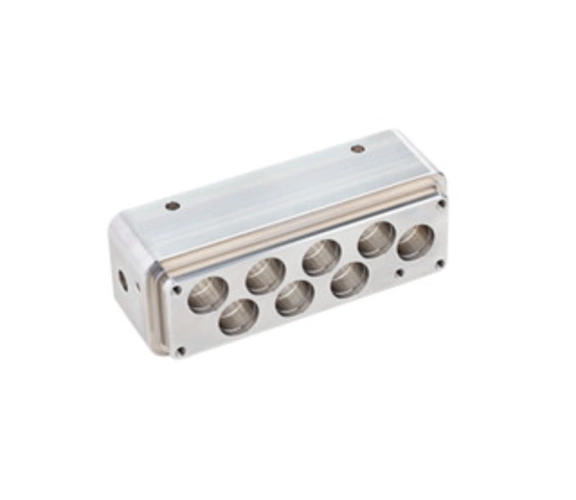

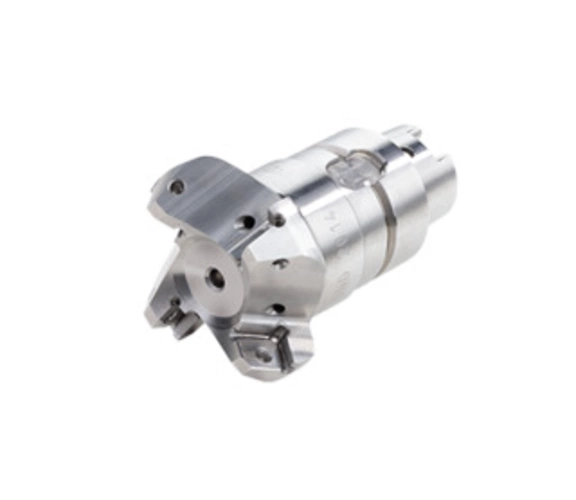

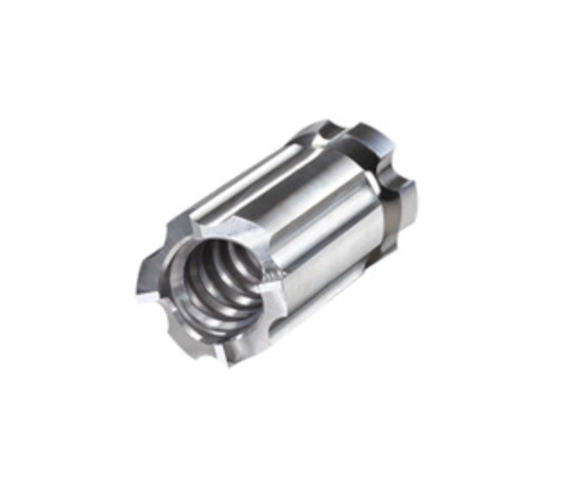

Wide range of parts for the TRAUB TNX200

INDEX offers its customers optimum solutions for flexible and efficient production. The engineers at INDEX have channelled years of experience from many industries into product development. Feasibility studies, profitability calculations and, above all, close co-operation with customers ensure that products and processes are ready for series production. Thanks to the modular design and the great flexibility of INDEX products, the customer also has access to an extensive modular system.

The TRAUB TNX200 turning/milling centre offers the best performance for customers in the mechanical engineering, automotive and aerospace industries with high availability and process reliability - the complete solution when it comes to high-performance machining of smaller workpieces.

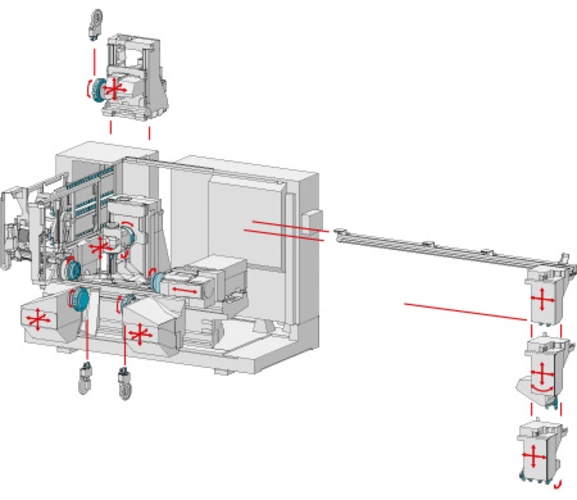

Modular system

The modular system of this series offers a wide range of options. Up to 3 tool carriers can be integrated into the work area - all of which can be equipped with a Y-axis. The work area offers ample space for processing all types of workpieces. The work area can accommodate parts up to a length of 900 mm. The powerful main and counter spindles are designed for bar diameters up to Ø 76 mm and for chucked parts up to Ø 230 mm. Turret steady rests are available for machining long or shaft-shaped parts.

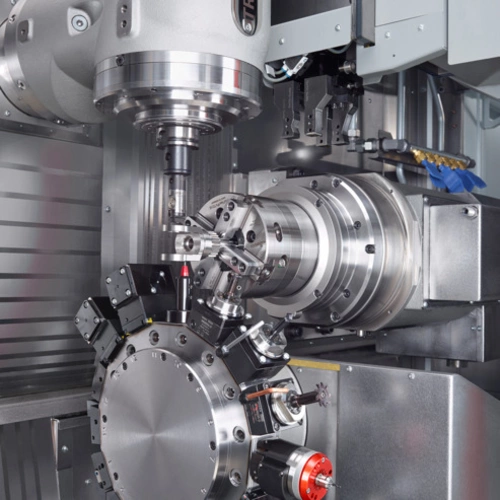

The INDEX TNX220 version is equipped with a powerful motorised milling spindle and is therefore able to perform 5-axis machining operations simultaneously. Great importance was attached to the ergonomic set-up and operating concept in the new development. All relevant components are easily accessible for operating and maintenance personnel. As an option, an integrated workpiece handling system can be used to load and unload shaft or flange parts, customised to the machining processes. The modular iXcenter robot cell is available for all machines in this series for the flexible feeding and removal of raw and finished parts.

Integrated automation solutions

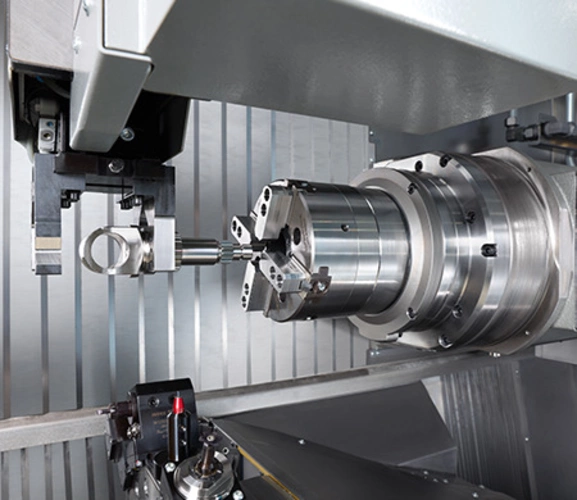

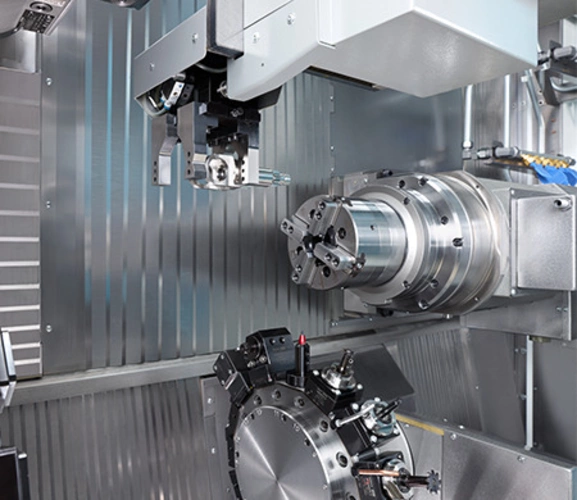

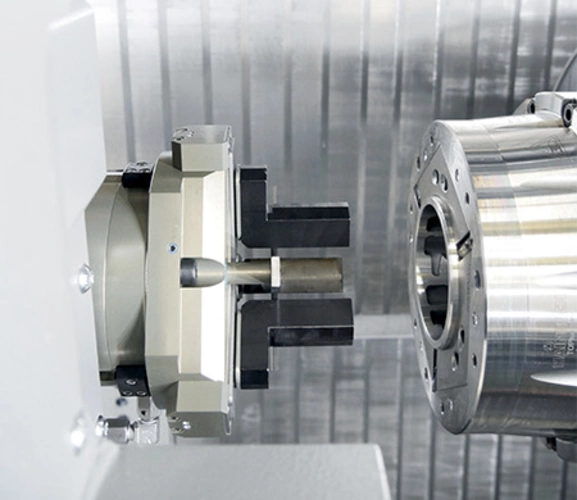

The integrated workpiece handling system is available as an option.
It can be used for loading and unloading as well as the removal of remnants and is designed for parts weighing up to 10 kg (single gripper) / 2x10 kg (double gripper) and a diameter of up to Ø 90 mm (shaft) or Ø 230 mm (flange).
The handling unit is equipped with 2 or 3 CNC axes and single or double grippers, which are operated via the machine control system.
Further customised automation solutions, such as conveyor belts or robot handling with ancillary functions, can be integrated on a customer-specific basis.

Control system: iXpanel

The iXpanel operating concept opens up access to networked production. With iXpanel, all relevant information for efficient production is available to the employee at all times directly at the TRAUB TNX200 turning-milling centre. iXpanel is already included as standard and can be individually expanded. You can use iXpanel as you wish for your company organisation - Industry 4.0 made to measure.
