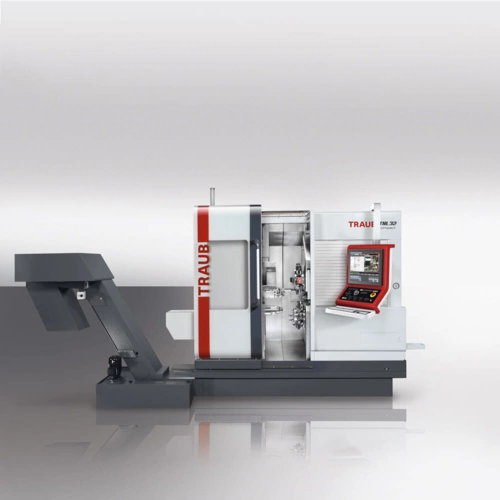

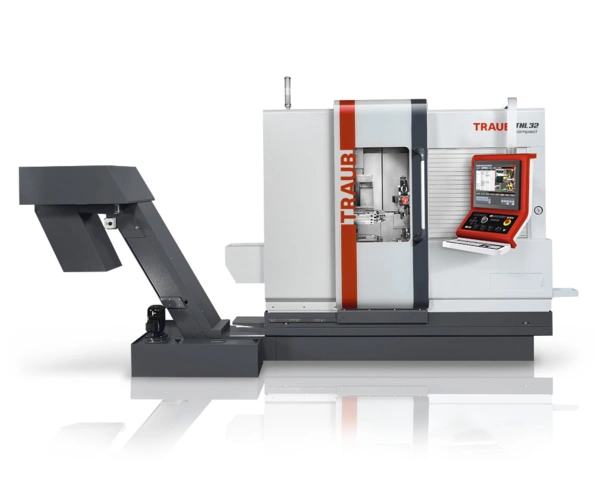

TRAUB TNL32-9B compact

Turning diameter max. 220 mm, bar diameter max. 32 mm, with B-axis 105°, with back attachment, small footprint

Long and short turning for workpieces of medium and high complexity from bar stock or with integrated robot cell: The TNL32-9B compact has two identical work spindles and two tool turrets, each with X, Z and Y axes. It can also be equipped with an additional front and rear unit. The upper tool turret can be optionally equipped with a B-axis (TNL32-9B compact).

This fixed head automatic turning machine combines the productivity of a very powerful automatic turning machine with the ability to produce even demanding workpieces precisely and economically.

The working area of this automatic turning machine, which is unique in its class, ensures a very high power density with compact installation dimensions for economical production. In addition, the vertical work area concept offers optimum process reliability combined with minimal set-up costs.

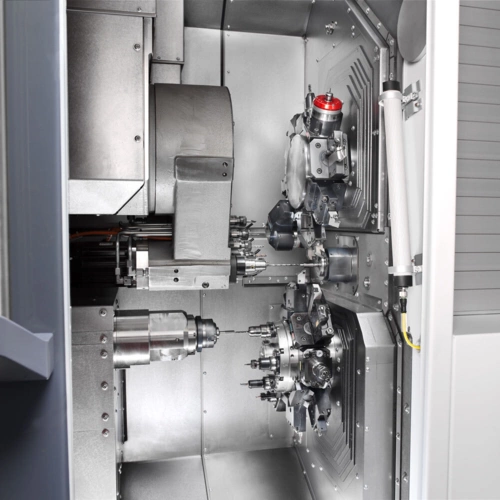

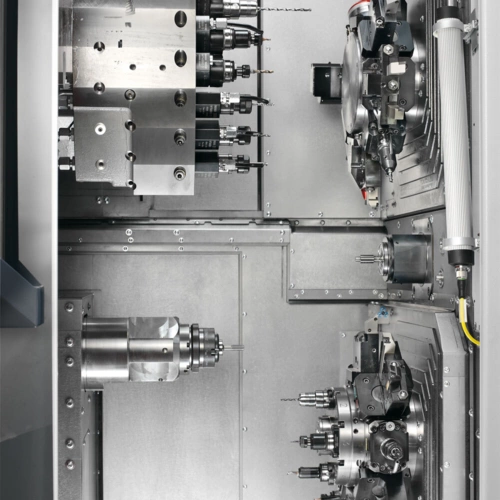

The work area concept

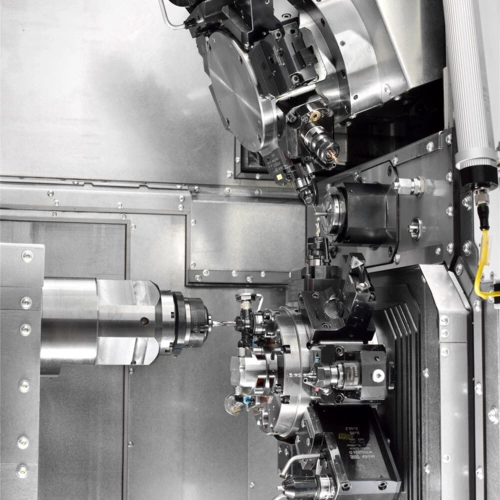

Simultaneous and productive machining with two tool turrets and a front and rear unit.

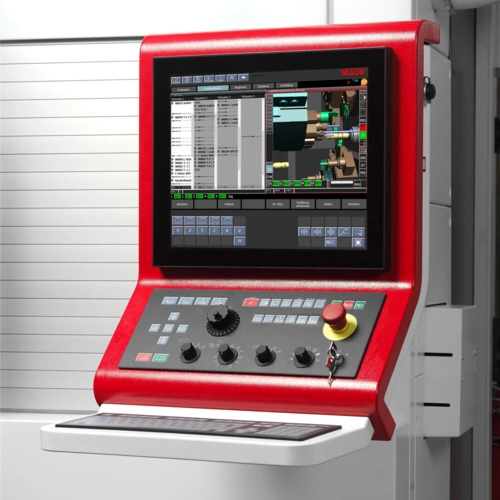

The machine concept

• Bar capacity up to ø 32 mm
• Up to three tool carriers and one rear unit, each with Y-axis
• Simultaneous machining with two, three or four tools
• Large tool stock for set-up-friendly production
• Short tool change times thanks to CNC indexing axis in the tool turrets and in the front side unit
• Generously dimensioned and process-reliable work area
• Flexible hydraulic hollow clamping system on main and counter spindles for clamping tasks with collets and chucks

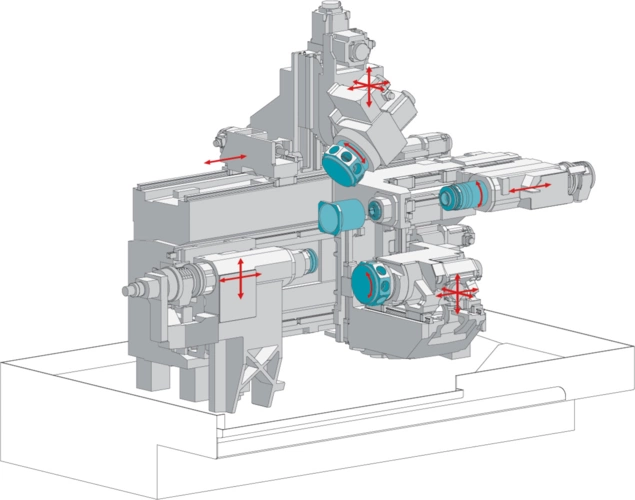

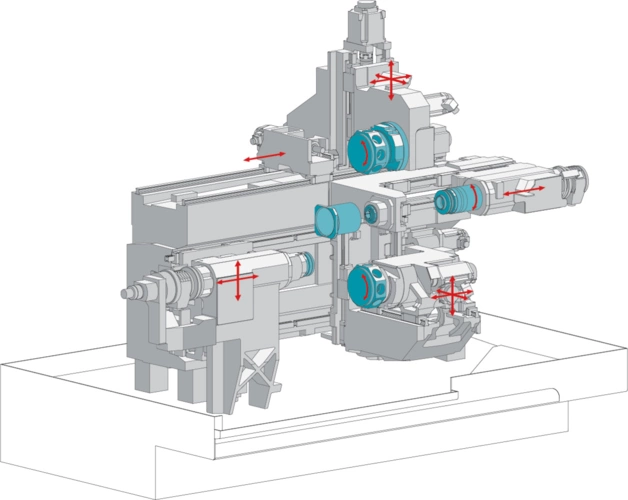

Configurable in three variants, see drawings:

1. TNL32-9 compact
2. TNL32-9B compact
3. TNL32-11 compact
