Plochinger Straße 92, 73730 Esslingen am Neckar |
07.06.2024 |
100944 |
220 mm |
32 mm |
2 items |
16 items |
16 items |
4 items |
|
INDEX-Werke GmbH & Co.KG Hahn & Tessky |
|
|
|
|
|
|
12000 rpm |
0.0 kW |
4398 mm |
2205 mm |
2455 mm |
5,3 t |
We will forward your message to the e-mail address you entered.
A problem has occurred while sending your message. Please check your details or contact the publisher.
Thank you for your message, it will be forwarded to the provider.
A problem has occurred while sending your message. Please contact the publisher.
Thank you for your message, it will be forwarded to the provider.
A problem has occurred while sending your message. Please contact the publisher.
Turning diameter max. 220 mm, bar diameter max. 32 mm, with back attachment, small footprint

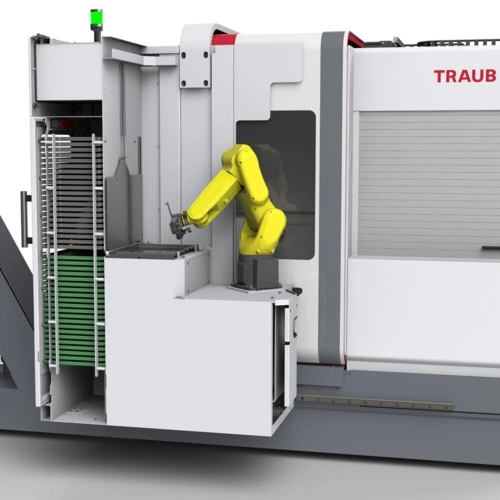

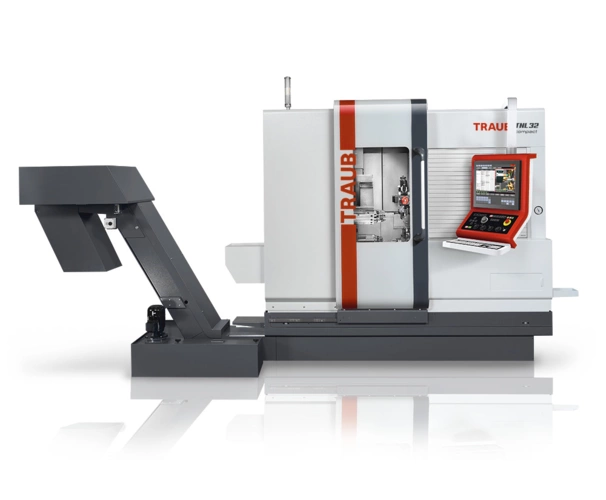

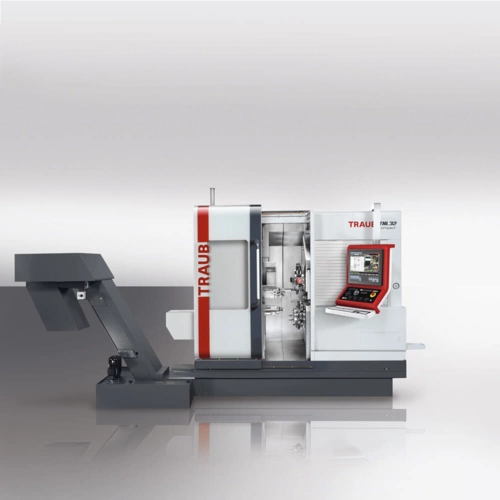

Long and short turning for workpieces of medium and high complexity from bar stock or with integrated robot cell: The TNL32-9 compact has two identical work spindles and two tool turrets, each with X, Z and Y axes. It can also be equipped with an additional front and rear unit. The upper tool turret can be optionally equipped with a B-axis (TNL32-9B compact).
This fixed head automatic turning machine combines the productivity of a very powerful automatic turning machine with the ability to produce even demanding workpieces precisely and economically.
The working area of this automatic turning machine, which is unique in its class, ensures a very high power density with compact installation dimensions for economical production. In addition, the vertical work area concept offers optimum process reliability combined with minimal set-up costs.

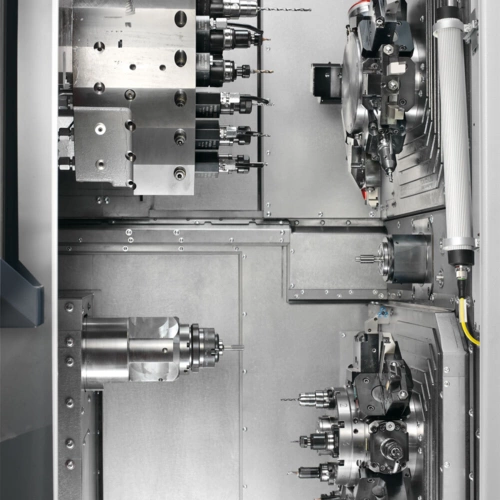

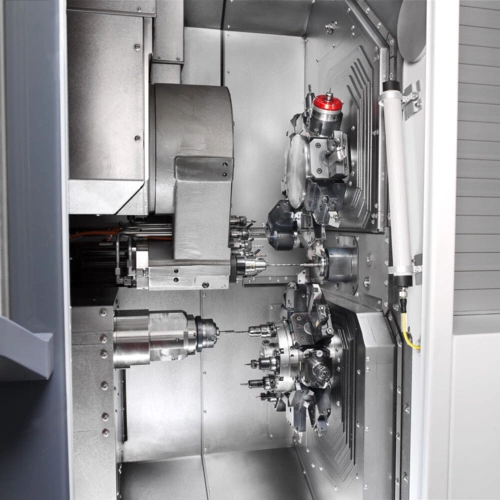

The work area concept

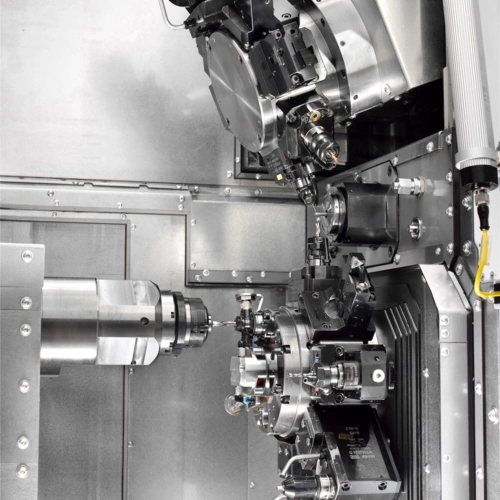

Simultaneous and productive machining with two tool turrets and a front and rear unit.

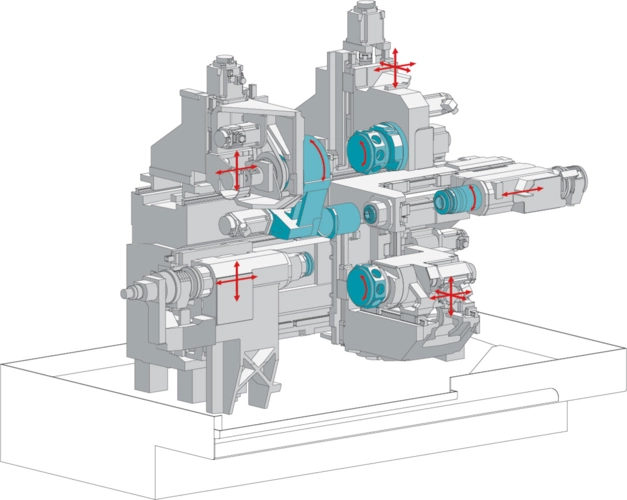

The machine concept

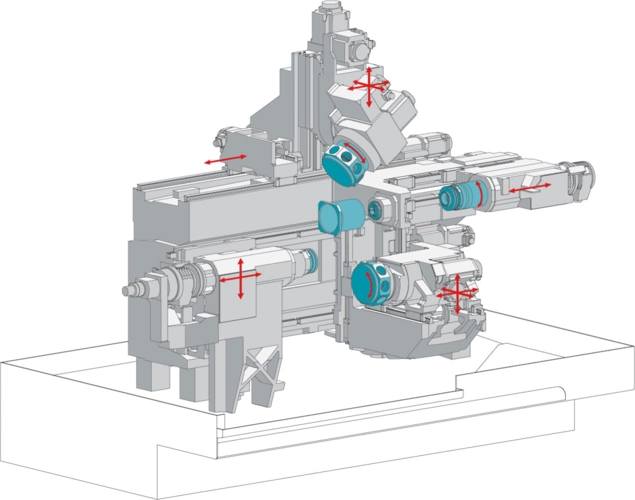

Configurable in three variants, see drawings:
