TRAUB TNL32-11 compact

73730 Esslingen am Neckar

bookmark Write a note

Print page

General information

Place Plochinger Straße 92, 73730 Esslingen am Neckar
Creation date 06.12.2024
Ad-ID 101241

Search criteria

Turning length max. 220 mm
Bar capacity max. 32 mm
Number of turrets [items] 2 items
Number of tool stations, not live, max. [items] 16 items
Number of tool stations, live, max. [items] 16 items
Front working attachment - number of stations [items] 6 items
Backworking attachment - number of stations [items] 4 items
Control (manufacturer) TRAUB TX8i-s V8
Machine manufacturer (list selection) INDEX-Werke GmbH & Co.KG Hahn & Tessky

further specifications

Counter spindle speed max. 8000 rpm
Counter spindle power max. 9.9 kW
Turret speed max. 12000 rpm
Installation length 4398 mm
Installation width 2205 mm
Installation height 2455 mm
Machine weight 5,7 t

Contact us

First name *

Surname *

E-mail address *

Your message *

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Notes on privacy policy

Report ad

Reason *

E-mail address *

Your message *

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Notes on privacy policy

Description

Turning diameter max. 220 mm, bar diameter max. 32 mm, with front and rear attachment, small footprint

Long and short turning for workpieces of medium and high complexity from bar stock or with integrated robot cell: The TNL32-11 compact has two identical work spindles and two tool turrets, each with X, Z and Y axes. It can also be equipped with an additional front and rear unit. The upper tool turret can be optionally equipped with a B-axis (TNL32-9B compact).

This fixed head automatic turning machine combines the productivity of a very powerful automatic turning machine with the ability to produce even demanding workpieces precisely and economically.

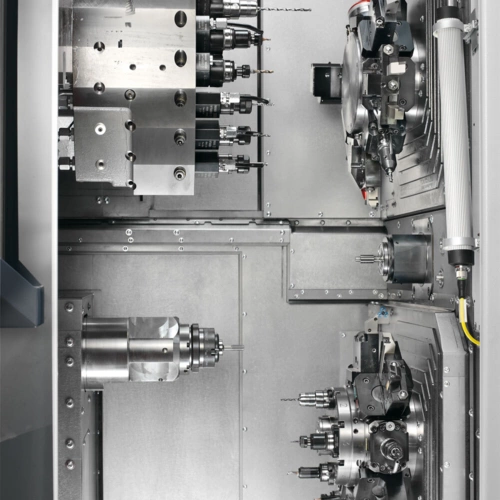

The working area of this automatic turning machine, which is unique in its class, ensures a very high power density with compact installation dimensions for economical production. In addition, the vertical work area concept offers optimum process reliability combined with minimal set-up costs.

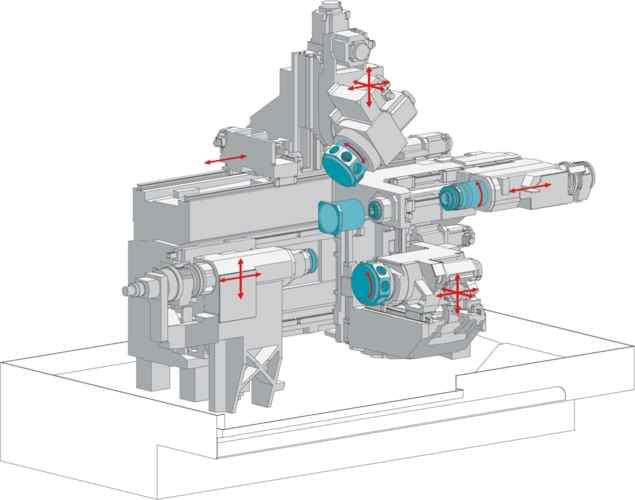

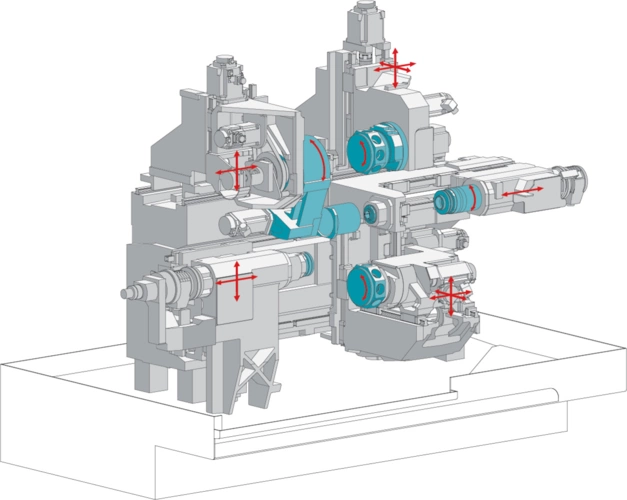

The work area concept

Simultaneous and productive machining with two tool turrets and a front and rear unit.

The machine concept

Bar capacity up to ø 32 mm
Up to three tool carriers and one rear unit, each with Y-axis
Simultaneous machining with two, three or four tools
Large tool stock for set-up-friendly production
Short tool change times thanks to CNC indexing axis in the tool turrets and in the front side unit
Generously dimensioned and process-reliable work area
Flexible hydraulic hollow clamping system on the main and counter spindles for clamping tasks with collets and chucks

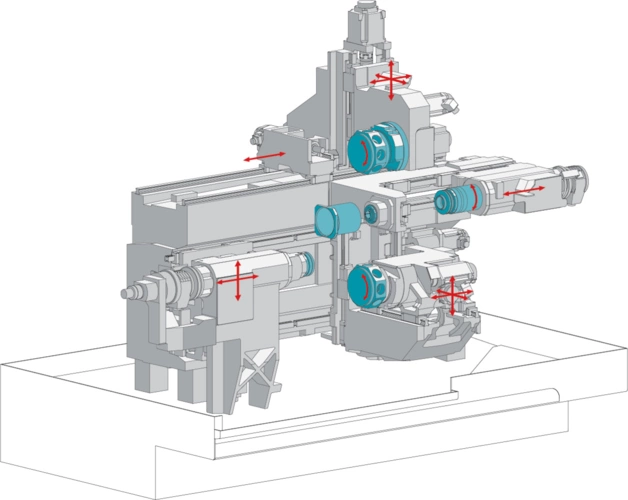

Configurable in three variants, see drawings:
