TRAUB TNL20
0 EUR
- Erstellungsdatum:
General information
| Plochinger Straße 92, 73730 Esslingen am Neckar |
| 10.06.2024 |
| 100946 |
Search criteria
| 20 mm |
| 205 mm |
| 20 mm |
| 2 items |
| 16 items |
| 16 items |
| 4 items |
|
| INDEX-Werke GmbH & Co.KG Hahn & Tessky |
further specifications
|
|
| 12000 rpm |
| 1.0 kW |
| 4183 mm |
| 2185 mm |
| 2247 mm |
| 5 t |
Contact us
Report ad
Description

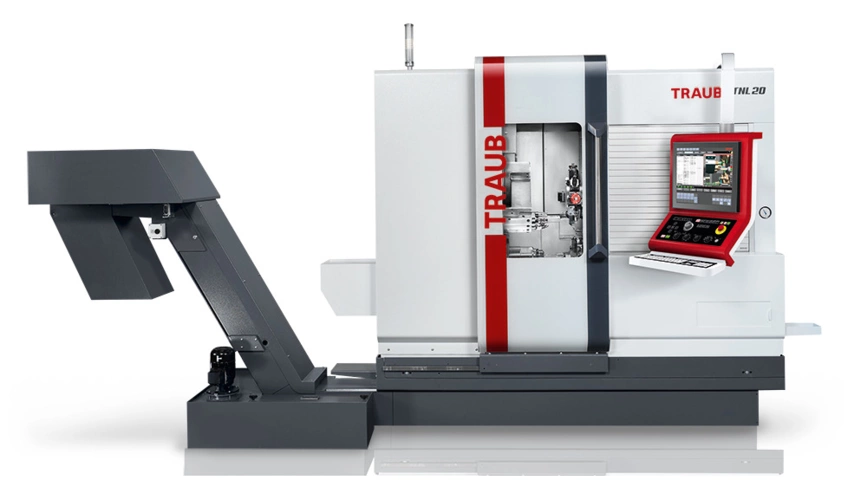

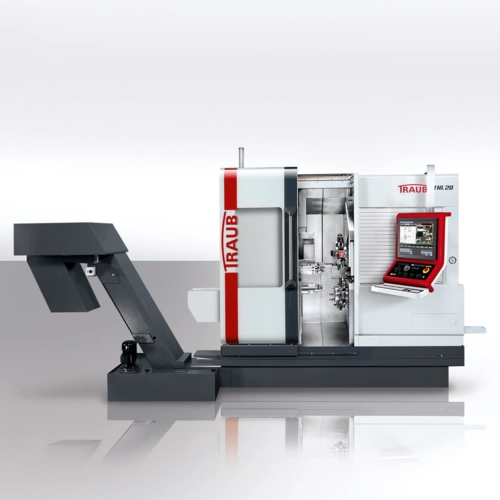

Productive long and short turning for workpieces of medium and high complexity from bar stock or with integrated robot cell
The new TRAUB TNL20 has two identical work spindles and two tool turrets, each with X, Z and Y axes. It can also be equipped with a front and rear attachment.
This fixed head automatic turning machine combines the productivity of a very powerful automatic turning machine with the ability to produce even demanding workpieces precisely and economically.
The working area of this automatic turning machine is unique in its class and its compact installation dimensions ensure a very high power density for economical production. In addition, the vertical work area concept offers optimum process reliability combined with minimal set-up costs.

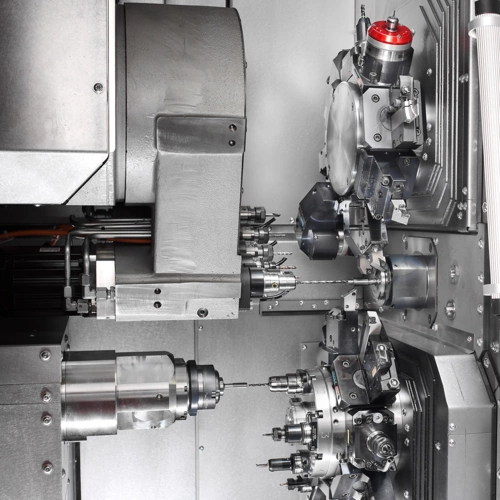

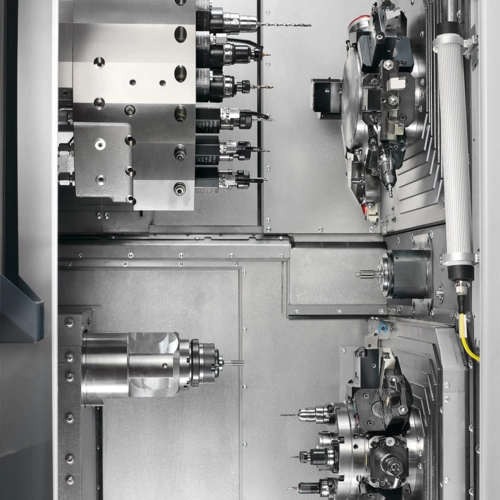

Work area concept

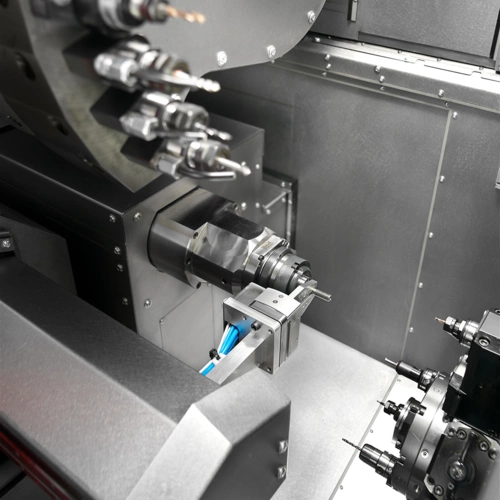

Simultaneous and productive machining with two tool turrets and a front and rear attachment.
Machine concept
- Bar capacity up to ø 20 mm
- Up to three tool carriers and one back attachment, each with Y-axis
- Simultaneous machining with two, three or four tools
- Large tool stock for set-up-friendly production
- Short tool change times thanks to CNC indexing axis in the tool turrets and in the front attachment
- Very fast and energy-efficient clamping on the main and counter spindles
- Generously dimensioned and process-safe work area
- Hydraulic-free machine: No heat input from hydraulics - energy savings included
Variants (see drawings)

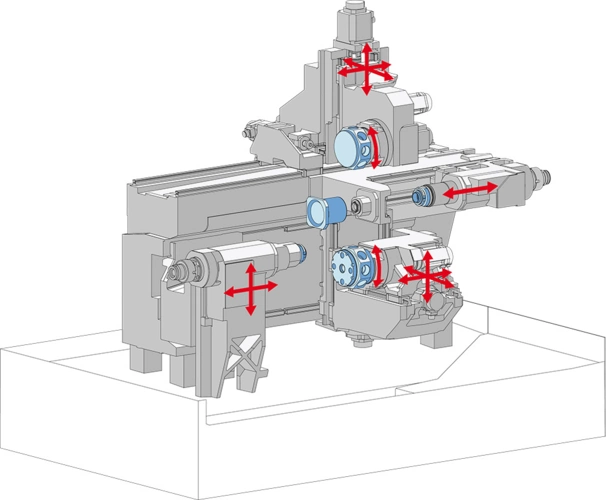

- TNL20-9: With this expansion stage of the sliding head automatic turning machine, you can manufacture with up to 3 tools simultaneously and precisely.

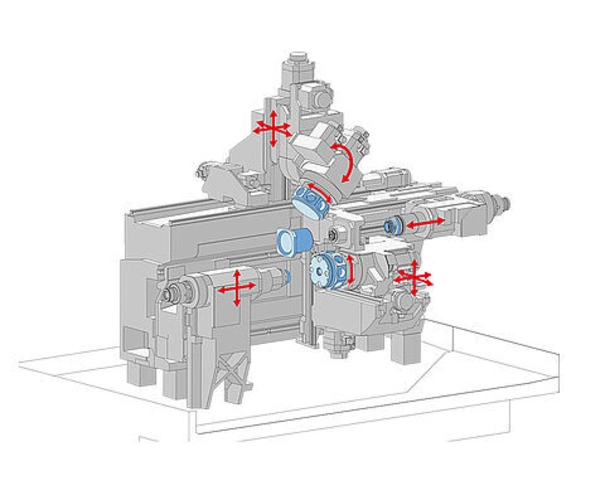

- TNL20-9B: Variant with additional B-axis for geometrically highly complex parts

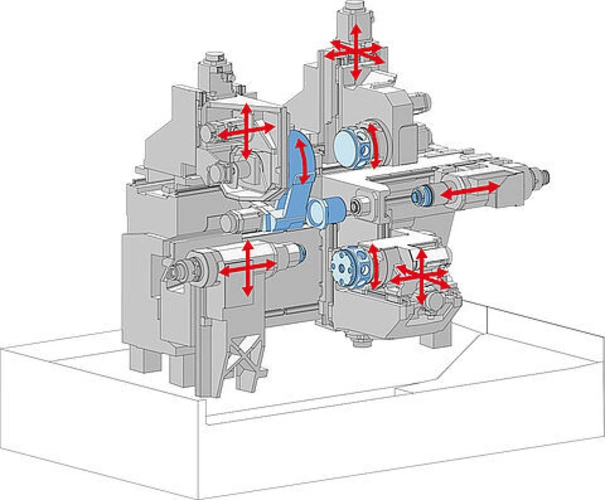

- TNL20-11: with additional front attachment - simultaneous, precise and even more economical production with four tools
Video:
TRAUB TNL20 sliding head automatic turning machine - medical screw
