TRAUB TNL12

2. The new generation with identical main and counter spindle, optionally with front and rear attachment, thus up to 38 tools, quick changeover between long and short turning operation

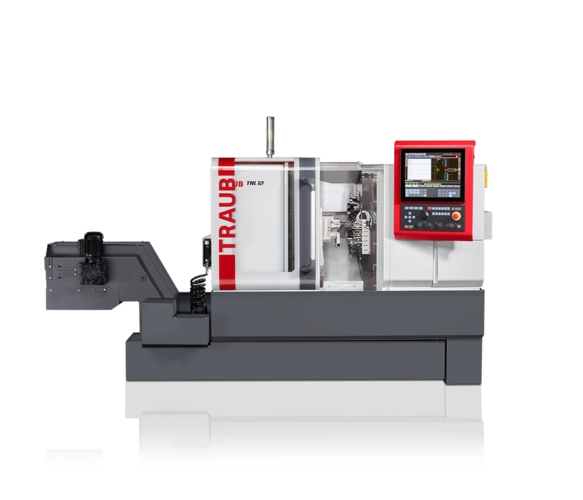

The TRAUB TNL12 fixed head automatic turning machine stands for maximum productivity and flexibility in a very compact design.

The compact TRAUB TNL12 sliding headstock / fixed headstock automatic turning machine with 13 mm spindle clearance has stood for maximum performance in its class for years. Where the predecessor model already set standards, the second generation of the TRAUB TNL12 now cements this claim.

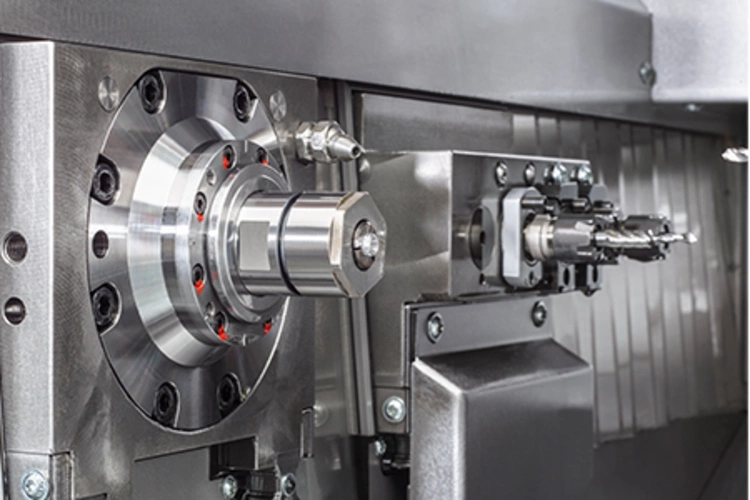

The current TRAUB TNL12 has two identical work spindles (main and counter spindle) and two tool turrets, both with interpolating Y-axis. Furthermore, it can also be equipped with a front attachment and a rear attachment for complex rear end machining. In total, up to 38 tools are available to the user. The TRAUB TNL12 can also be flexibly converted from long turning to short turning operation and vice versa in no time at all.

The working area, which is unique in its class, ensures a very high power density for economical production thanks to the compact installation dimensions. In addition, the generous work area concept offers optimum process reliability combined with minimum set-up effort.

Thanks to its enormous performance and flexibility, the TRAUB TNL12 is suitable for users in precision mechanics, the automotive sector, electrical engineering and, above all, medical technology.

The current TRAUB TX8i-s V8 control system, which is prepared for direct integration of the TNL12 into the digital iXworld, ensures simple operation.

Workspace concept

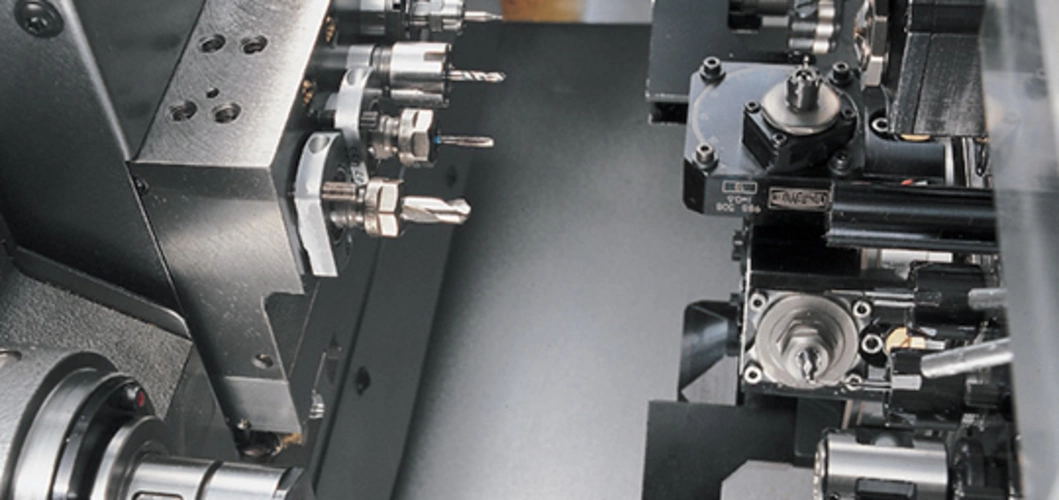

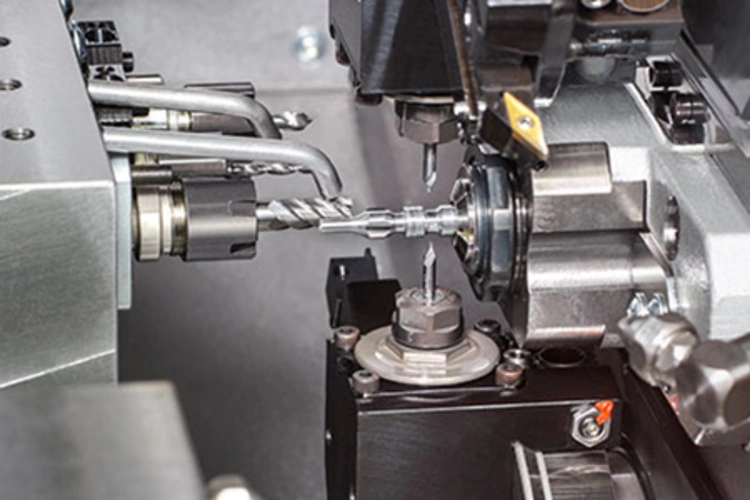

Simultaneous and productive machining with two tool turrets and a front and rear unit.

Machine concept

• Bar capacity up to ø 13 mm
• Up to four tool carriers for simultaneous tool use
• Large tool stock for set-up-friendly production
• Short tool change times thanks to CNC indexing axis in the tool turrets, front attachment and rear attachment
• Simple changeover from long to short turning operation
• Very compact machine design for high area productivity
• Spacious and ergonomically designed work area
• Rigid, stable grey cast iron bed and thermo-symmetrical design for high precision
• Hydraulic-free machine: No heat input from hydraulic components - energy savings included
• High dynamics thanks to direct drives for the tools
