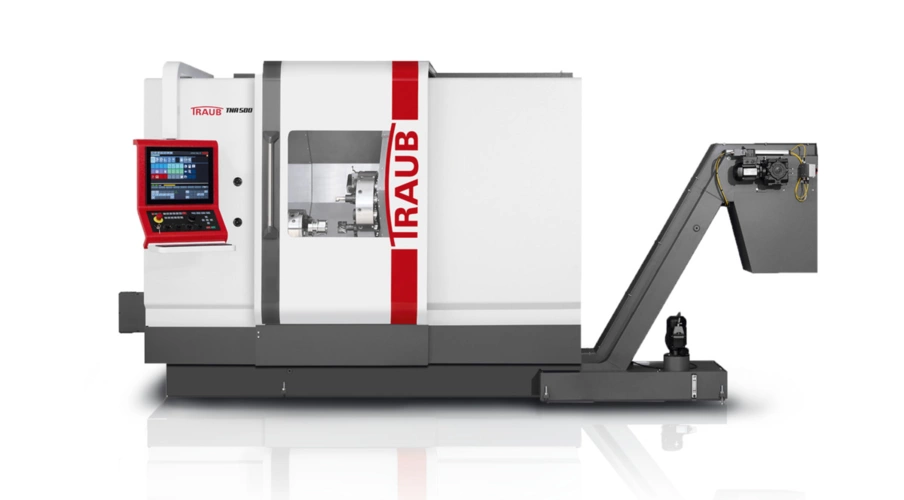

TRAUB TNA500 (long version)

Newly designed, clearly structured workspace for a wide range of applications, high spindle torque for difficult-to-machine materials, optional Counter spindle

The TRAUB TNA500 universal turning machine impresses with its innovative machine design. The rigid and vibration-damping machine bed in mineral casting block construction ensures the best results when machining complex workpieces from batch size 1.

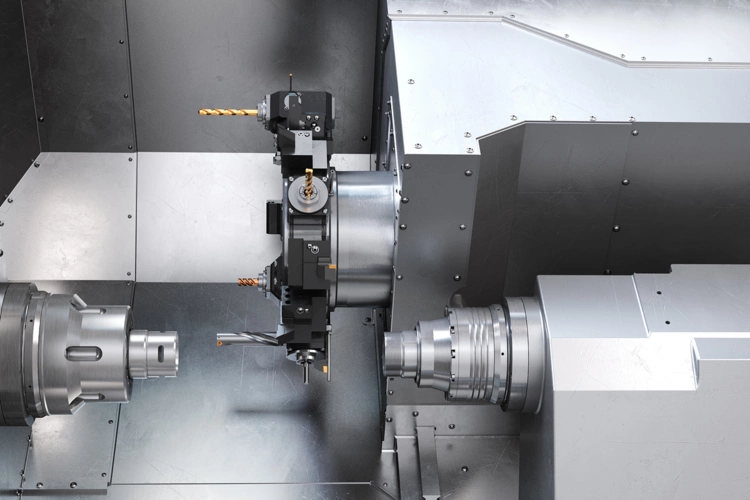

With high spindle torque up to the upper Speed ranges, even difficult-to-machine materials can be processed reliably. A special feature of the TRAUB TNA500 is the completely redesigned, clearly structured workspace for a wide range of applications.

A turning lenght of 750 mm (model TNA500 DL 750) up to 1,200 mm (model TNA500 DL 1200) allows for a wide range of machining options. With the optionally available Counter spindle, rear machining can be carried out with high accuracy.

The ergonomic design ensures quick setup and easy operation of the machine.

The proven INDEX iXpanel operating concept and the 18.5" touch monitor provide the operator with all relevant data for economical production and access to networked production at all times.

Machine concept

• Clearly structured and ergonomically sophisticated workspace concept
• Rigid mineral casting bed in 45° block design for high accuracy
• Work spindle with belt drive for high torques
• Spindle head A8 / A11, spindle passage Ø 82 / 102 mm, chuck up to Ø 315 / 400 mm
• Generously dimensioned bed guides

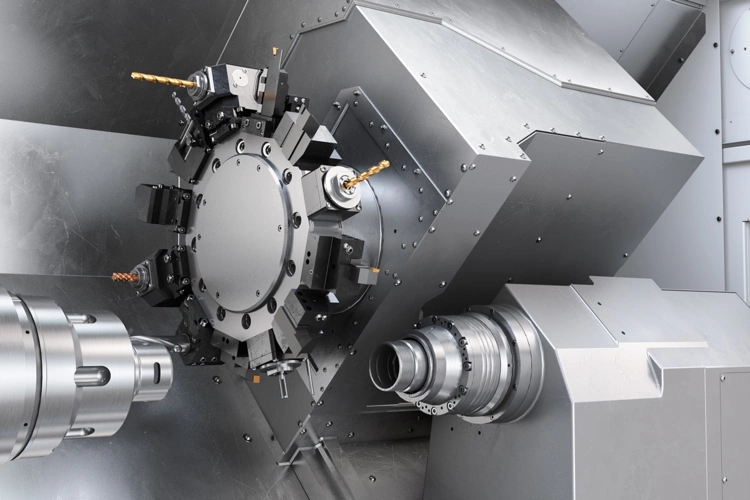

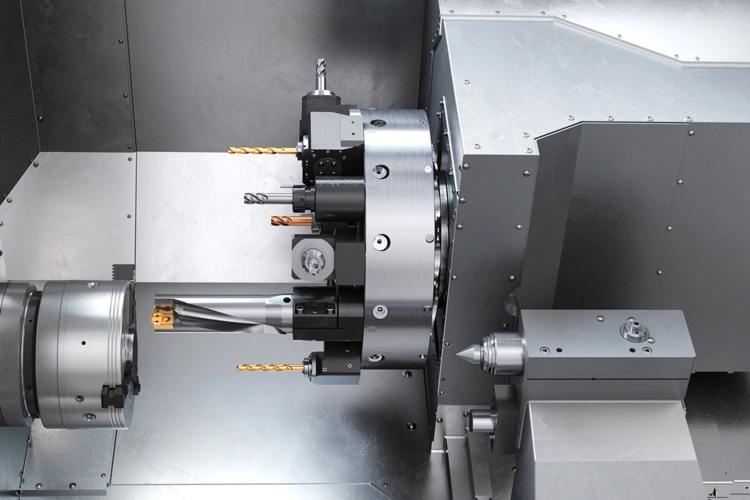

• Star turret for 18 tools with VDI 30 / VDI 40 mount and W-toothing for high process reliability or disc turret for 12 tools with VDI 40 mount (only in conjunction with tailstock)
• Orthogonal, linear Y-axis for high accuracy
• Large axis strokes X 360 mm / Y ±60 mm / Z 750 mm
• Options
  • Short version with turning lenght up to 750 mm
  • Long version with turning lenght up to 1,200 mm
  • Counter spindle with A6 / A8 interface
  • NC tailstock with electronically controllable axis
  • Steel ring, electronically positionable
  • Bar package with short bar loader
  • INDEX EcoFluid
  • Workpiece handling

Versions according to turning lenght:

• TNA500 DL 750
• TNA500 DL 1,200

Structured machine design

The TRAUB TNA500 represents the consistent further development of proven manufacturing solutions from TRAUB. Individually equipped, this new flexible universal turning machine is ideal for tool and prototype construction as well as medium and large series production. Decades of expertise are evident in numerous design details, such as a pocket in the sheet metal cladding above the main spindle, which ensures collision-free use of long boring bars.

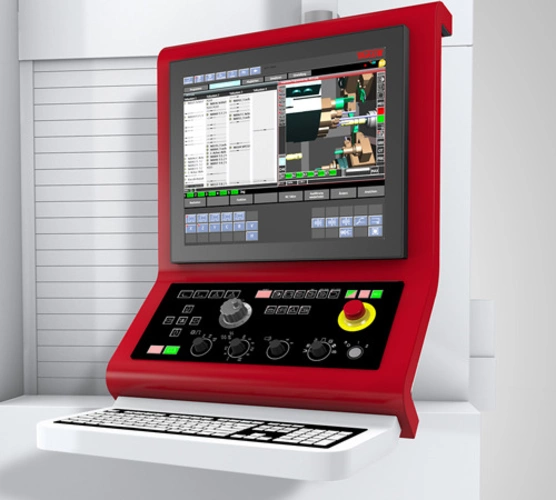

TRAUB TX8i-s control

The iXpanel operating concept opens the door to networked production. With iXpanel, employees have access to all relevant information for economical production directly on the TNA400 universal lathe at all times. iXpanel is already included as standard and can be individually expanded. You can use iXpanel in whatever way suits your company organization—Industry 4.0 made to measure.
