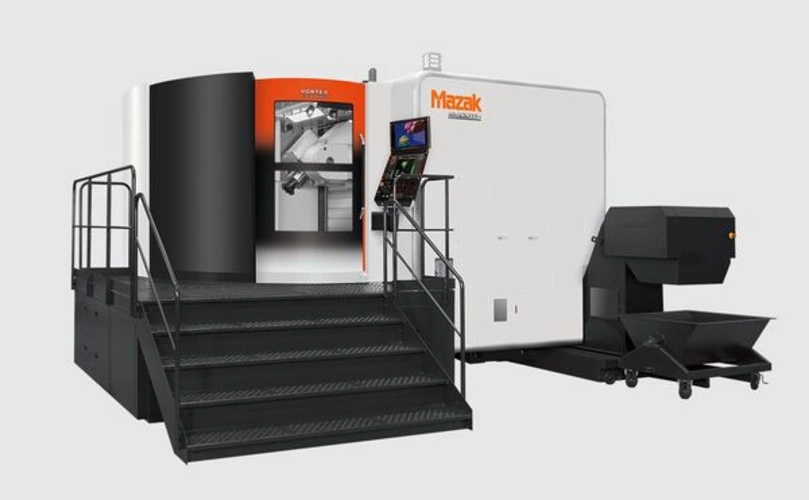

Mazak VORTEX i-630V/6

Vertical machining center with 5-axis simultaneous control for multi-sided machining of heavy workpieces - pallet size 630 mm × 630 mm, travel range B-axis - 30° to + 120°

Parts that previously required multiple processes can now be machined in a single setup with the VORTEX i-630V/6. This not only reduces inventory and lead times, but also improves the accuracy of simultaneous machining. In addition to multi-surface machining, free-form surface machining is also possible.

High-precision function as standard equipment:

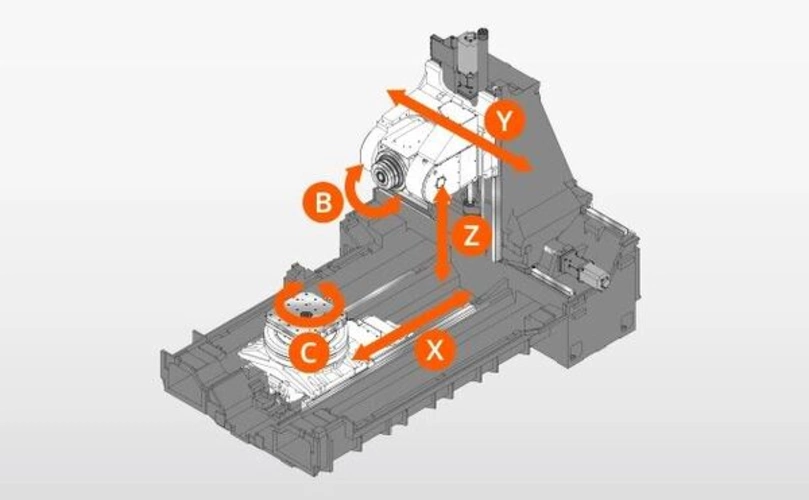

Linear roller guides in all axes

Linear roller guides with outstanding rigidity are used in the X, Y, and Z axes of the VORTEX i-630V/6 for powerful cutting and high-precision machining.

Roller gear for the B-axis

The elimination of backlash ensures highly efficient precision machining (over the rotary positioning range of 150 degrees, the positioning accuracy is twice as good as the ISO standard).

Roller guide for the C-axis

The NC rotary table is driven by a roller gear, which ensures high machining accuracy over long periods of time. It can be indexed in increments of 0.0001°.

Cone coupling

The pallet and table are clamped in place using clamping cones, which guarantees high torsional rigidity and high-precision positioning with high repeat accuracy during pallet changes.

Bevel surface on the Y-axis

A sloping surface is provided at the bottom of the VORTEX i-630V/6 stand for mounting the Y-axis linear guides. This design is ideal for high cutting loads during machining and thus ensures greater stability.

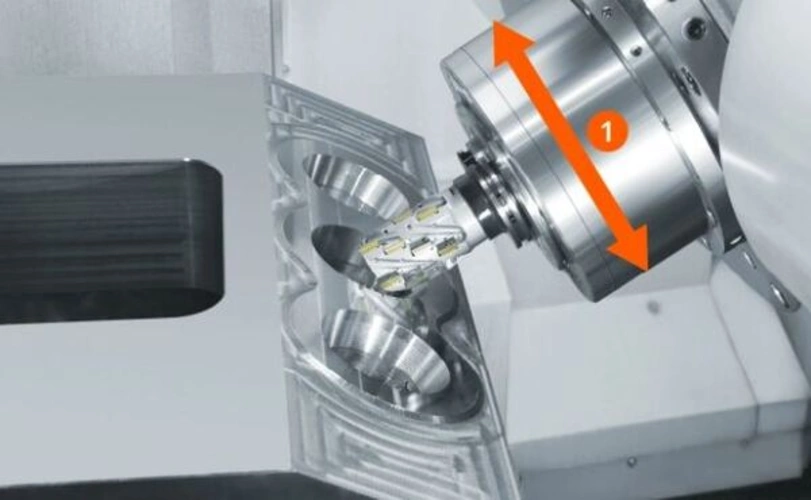

The VORTEX i-630V/6 is available with three different milling spindles for a wide range of applications from steel to non-ferrous materials:

• 10,000 rpm milling spindle: The standard spindle is designed for highly efficient machining in a variety of applications such as cast iron, steel, and non-ferrous materials. Enables highly efficient machining of a wide range of workpieces.

• 5,000 rpm milling spindle (optional): Designed for high-torque machining, e.g., roughing of cast iron and steel.

• 15,000 rpm mill spindle (optional): Ensures high-speed machining of non-ferrous materials and difficult-to-cut materials. It enables highly efficient machining of a wide variety of materials.
