Mazak VCN-600
- Erstellungsdatum:
General information
| 21.05.2025 |
| 101531 |
Search criteria
| 3 Piece |
| 1050 mm |
| 600 mm |
| 600 mm |
| 1200 kg |
|
|
| 30 Piece |
|
| YAMAZAKI MAZAK Deutschland GmbH |
further specifications
| 42-42-42 m/min |
| 125 mm |
| 350 mm |
| 5 kg |
| 3614 mm |
| 2812 mm |
| 2980 mm |
| 7 t |
Contact us
Report ad
Description
Vertical 3-axis machining center – Y-axis 600 mm, table size 1,300 mm × 600 mm
-
Designed for high power, productivity and precision
-
First-class performance – from heavy-duty machining to dynamic high-speed machining
-
Large working area and generous table sizes
-
Highly rigid and high-precision machine design
-
Various measuring and coolant packages are available to increase production efficiency and optimize your machining processes.
-
Designed for automation
High productivity

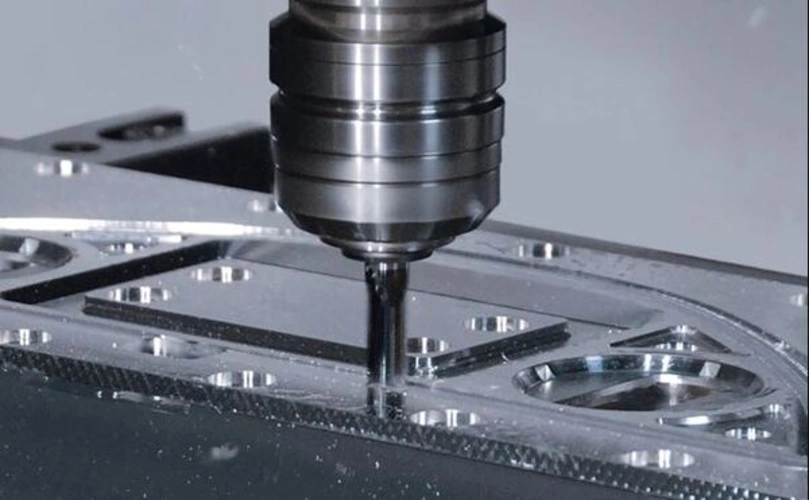

High-productivity machining with the VCN-600 is made possible by a new series of high-performance spindles that meet the requirements of modern dynamic machining processes.
-
15,000 rpm high-performance spindle designed for heavy-duty machining
-
Optional, powerful 18,000 rpm spindle with integrated motor and recirculating cooling for improved cutting performance
Highly rigid and high-precision machine design for the VCN-600
-
C-frame construction made of Meehanite gray cast iron with A-frame stand and wide base.
-
Linear roller guides on all axes offer improved positioning accuracy compared to side guides. This ensures consistently high machining accuracy over a long period of time.

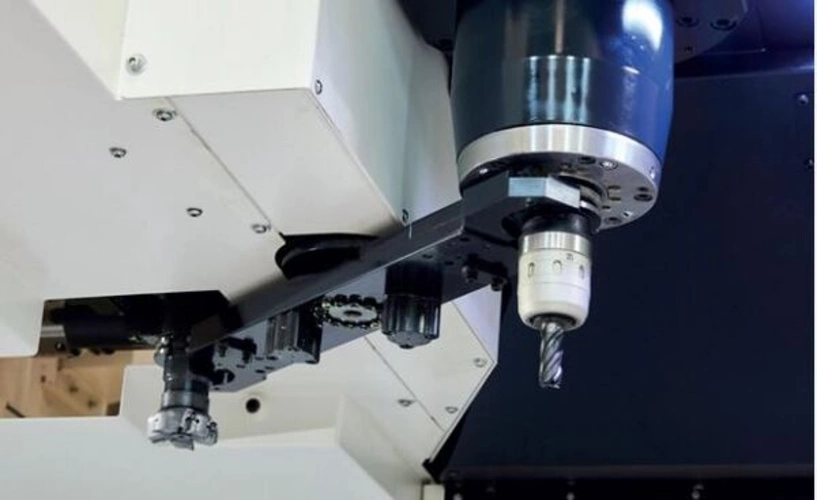

Automatic tool changer and tool magazine
-
Super-fast automatic tool changer: Tool change time (tool to tool) - 1.3 s
-
Standard tool capacity for 30 tools
-
Optionally, the servo-driven magazine with 48 or 60 tool slots offers additional tool storage for complex workpieces, a high variety of variants, and replacement tools for continuous operation, which increases production flexibility.
To reduce the setup time of the VCN-600, tools can be easily loaded and unloaded through the optional tool magazine loading door while the machine is in automatic mode.
Frequently used search terms for this machine: Mazak milling machines, Mazak milling machine, buy Mazak machine, Yamazaki Mazak Corporation
