Mazak VCE-500
- Erstellungsdatum:
General information
| 21.05.2025 |
| 101530 |
Search criteria
| 3 Piece |
| 800 mm |
| 500 mm |
| 550 mm |
| 750 kg |
|
|
| 24 Piece |
|
| YAMAZAKI MAZAK Deutschland GmbH |
further specifications
| 36-36-36 m/min |
| 2,7 s |
| 125 mm |
| 300 mm |
| 8 kg |
| 3185 mm |
| 2330 mm |
| 2900 mm |
| 5,7 t |
Contact us
Report ad
Description
Vertical 3-axis machining center – Y-axis 500 mm, table size 1,050 mm x 500 mm
-
Maximum productivity with extremely high performance
-
First-class power, productivity, accuracy, and repeatability
-
Excellent build quality offers reliability you can count on – accompanied by first-class training and service
-
Highly competitive purchase price and higher productivity for a quick return on investment
-
MAZATROL SmoothEz with intuitive 15" touch screen for easy operation and fast programming

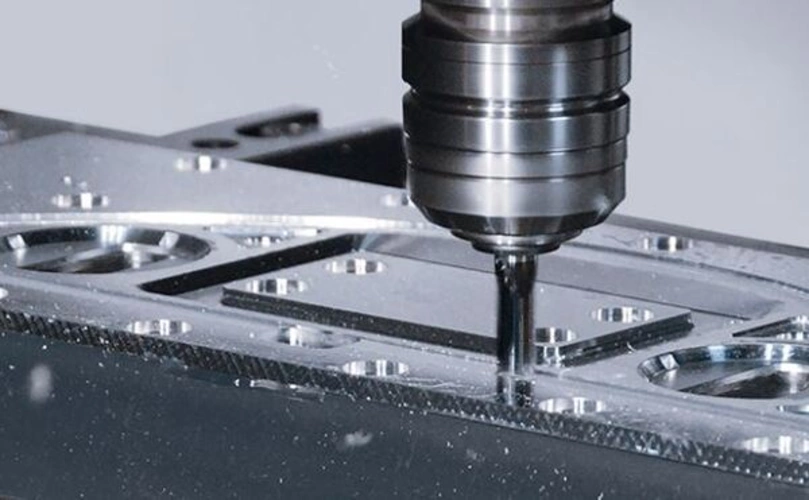

High-performance spindle
The VCE-500 features a versatile high-performance spindle with 12,000 rpm for a wide range of materials and applications with high reliability.

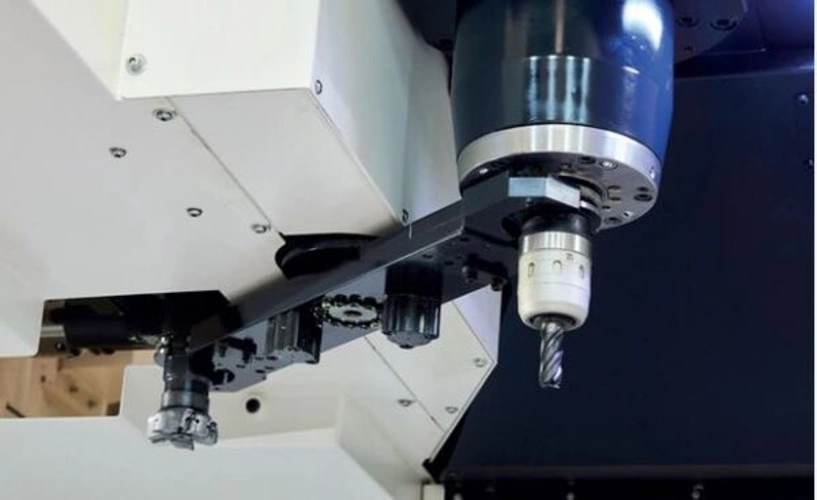

Automatic tool changer and tool magazine
-
Automatic high-speed tool change – tool change time 2.7 seconds (chip-to-chip)
-
Standard tool capacity for 24 tools
-
Optionally, the servo-driven magazine with 30 or 48 tool slots offers additional tool storage for complex workpieces, a high variety of variants, and replacement tools for continuous operation, thereby increasing production flexibility
-
To reduce the setup time of the VCE-500, tools can be easily loaded and unloaded through the optionally available tool magazine loading door while the machine is in automatic mode

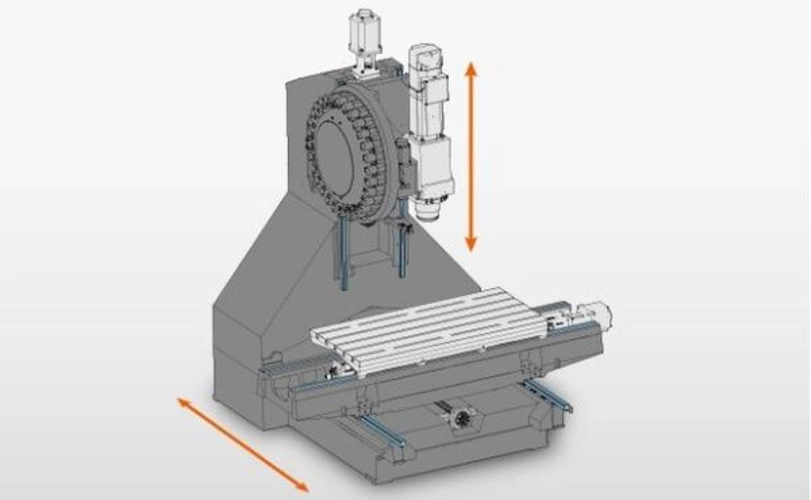

Highly rigid and high-precision machine construction of the VCE-500
-
C-frame construction made of Meehanite gray cast iron with A-frame stand with wide base
-
Linear roller guides in all axes offer improved positioning accuracy compared to lateral guides. This also ensures stable machining accuracy over a longer period of time
