Mazak VC-PRIMOS 400 L
- Erstellungsdatum:
General information
| 21.05.2025 |
| 101532 |
Search criteria
| 3 Piece |
| 500 mm |
| 400 mm |
| 350 mm |
| 300 kg |
|
|
| 14 Piece |
|
| YAMAZAKI MAZAK Deutschland GmbH |
further specifications
| 60-60-60 m/min |
| 2,6 s |
| 125 mm |
| 250 mm |
| 3 kg |
| 2754 mm |
| 1280 mm |
| 2650 mm |
| 3,8 t |
Contact us
Report ad
Description

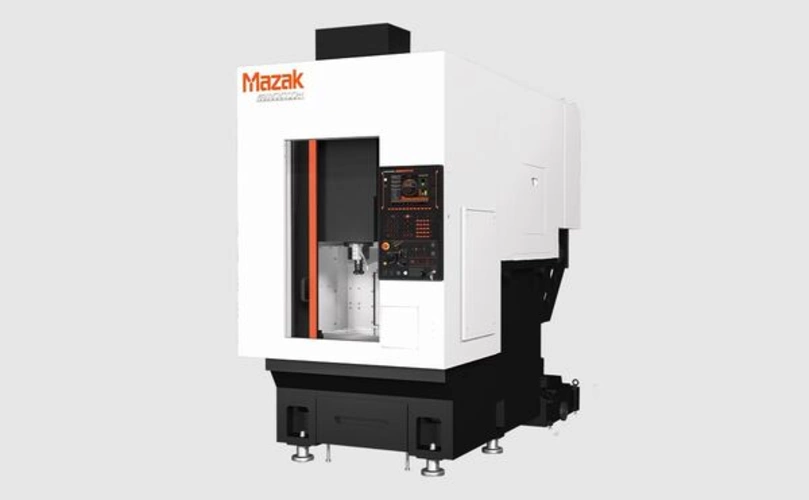

Compact vertical machining center with maximum efficiency
-
The compact precision spindle with a 30 taper, designed for high speeds, is suitable for highly efficient machining of small parts
-
Fixed work table and arrangement of drive elements above the machining area create versatile application possibilities and ensure even chip removal
-
Fixed work table for a wide range of production systems and automation solutions
-
Available with MAZATROL SmoothC or MAZAK FZ CNC control
The VC-PRIMOS 400 L is equipped with a compact, standard 12,000 rpm spindle with outstanding power. Suitable for a wide variety of materials such as iron, cast metal, aluminum, and enables efficient machining.
-
Spindle in standard version 12,000 rpm
-
High-speed spindle (optional) 20,000 rpm
-
High-torque spindle (optional) 12,000 rpm

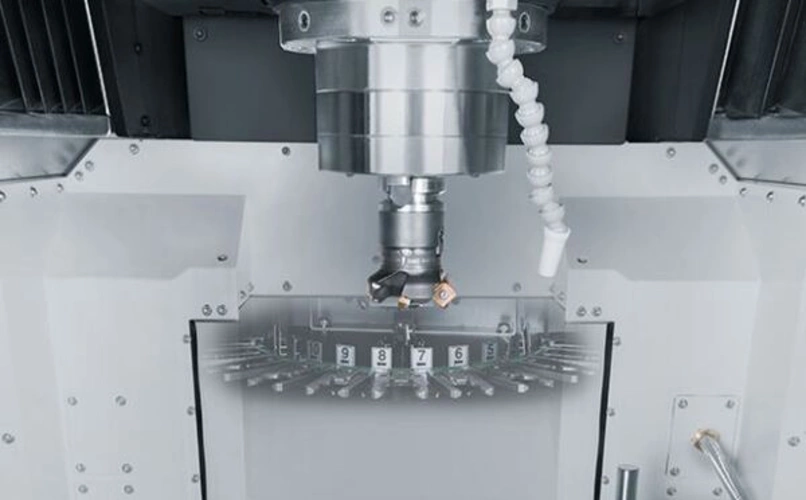

Super-fast tool changer without arm: tool change time (chip-to-chip) 2.6 s
The tool magazine of the VC-PRIMOS 400 L is designed for 14 tools as standard. Tool magazines with 19 or 21 tools are available as options.

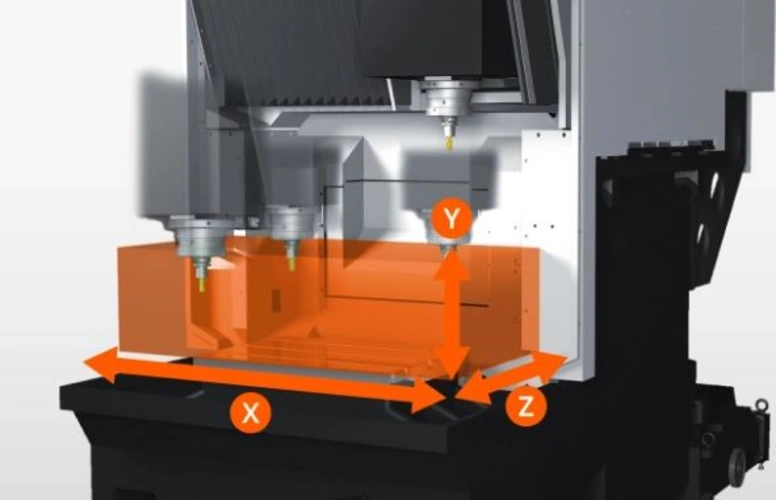

High-speed positioning: Rapid traverse speed (X, Y, Z axes) 60 m/min
With a machine width of only 1,280 mm, the VC-PRIMOS 400 L is the narrowest in its class. The chips are discharged at the rear, which means that no maintenance area is required to the left or right of the machine. Production lines can be set up in a very space-saving manner.

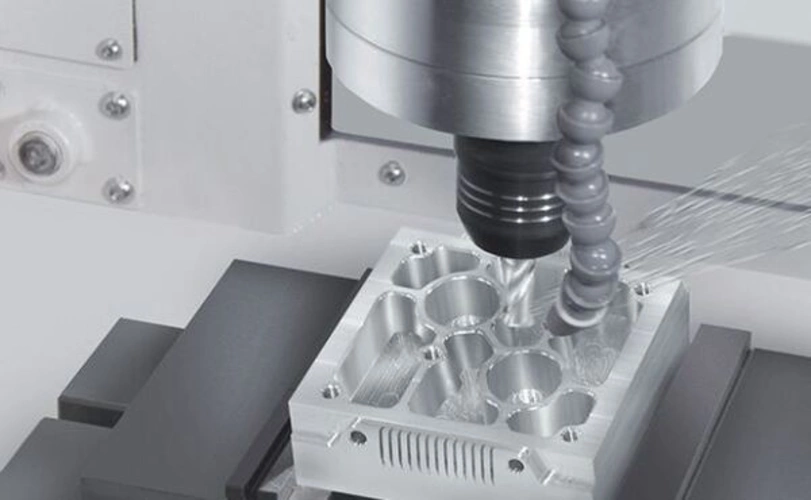

Generous machining area: A fixture measuring 1,000 mm x 500 mm can be mounted on the 600 mm x 400 mm table.
-
Standard table 600 mm × 400 mm
-
Wide table 1,000 mm (optional)
Raised table (optional) with a height of 100 mm
