Mazak INTEGREX i-200H S
- Erstellungsdatum:
General information
| 23.05.2025 |
| 101536 |
Search criteria
| 4 Items |
| 535 mm |
| 210 mm |
| 900 mm |
| 600 mm |
|
|
|
| YAMAZAKI MAZAK Deutschland GmbH |
further specifications
| 48-40-40 m/min |
| 38 Items |
| 90 mm |
| 300 mm |
| 5 kg |
|
|
|
|
|
|
| 2170 mm |
| 3505 mm |
| 2250 mm |
| 11,13 t |
Contact us
Report ad
Description

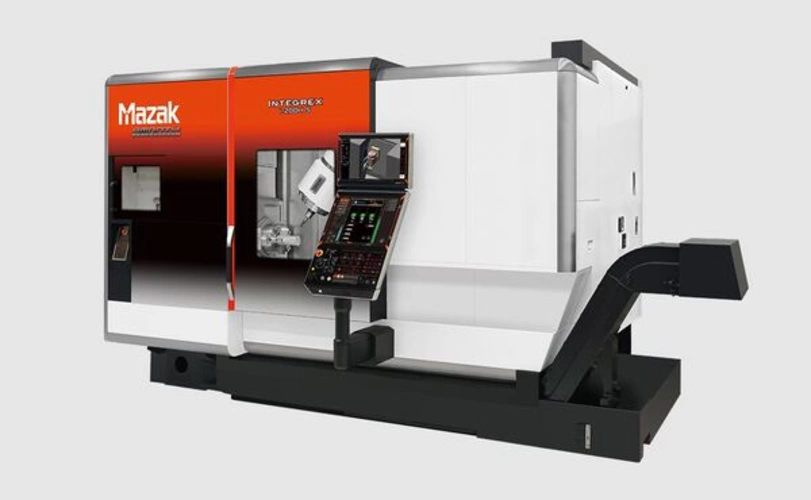

Next-generation multi-function machine – chuck size 8", machining length 850 mm, B-axis travel -30° to +210
-

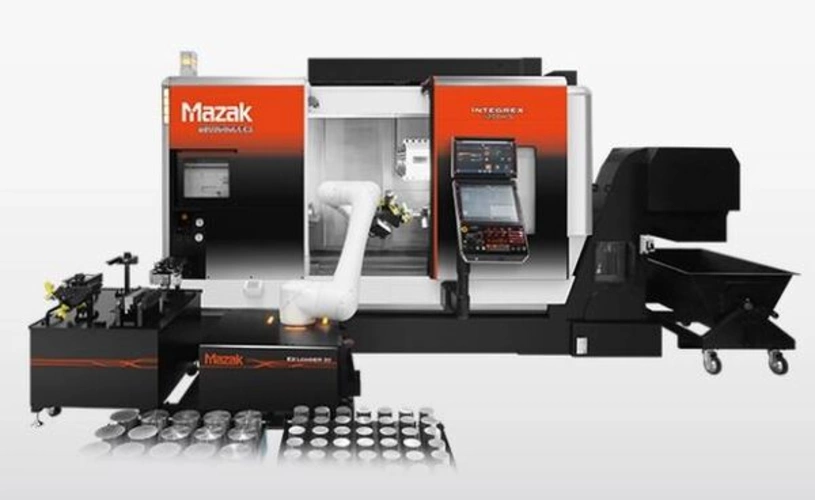

Thanks to the ergonomic machine front, the INTEGREX i-H series offers unobstructed access to automation systems such as robots and raw material storage.
-
High spindle performance and highly rigid machine design
-
Large traverse y-axis for a wide range of production requirements
-
MAZATROL SmoothAi enables AI, digital twins, and automation

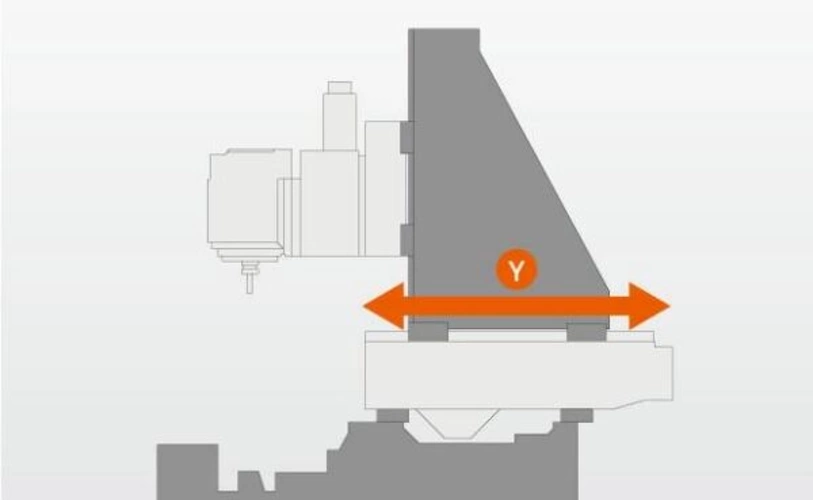

The ergonomic machine front of the INTEGREX i-200H S allows easy adaptation of different automation solutions. Based on a structural analysis, the unique machine design was conceived to combine turning and machining centers to ensure high-precision machining over long periods of time. Precision machining is achieved over the entire traverse y-axis.

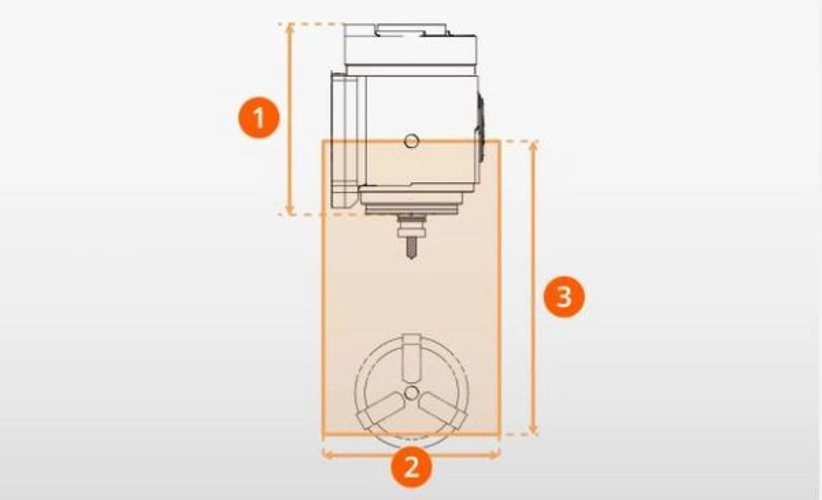

The compact milling spindle of the INTEGREX i-200H S is 17% shorter than a conventional milling spindle as standard, which increases the machining area and reduces interference. The traverse X and Y axes have been extended to ensure a larger machining area (see figure).
- 1: 430 mm
- 2: Y-axis 300 mm (i-250H, i-350H, i-450H series) / Y-axis 210 mm (i-100H, i-200H series)
- 3: X-axis 695 mm (i-250H, i-350H, i-450H series) / X-axis 535 mm (i-100H, i-200H series)
