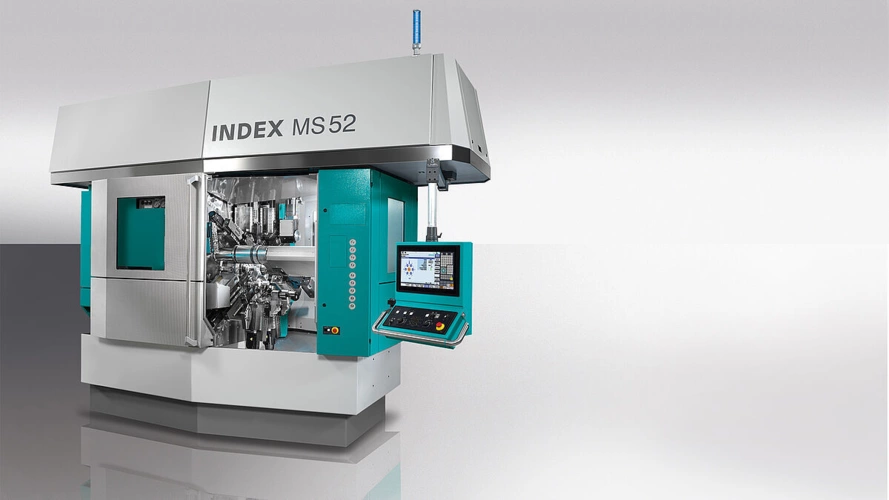

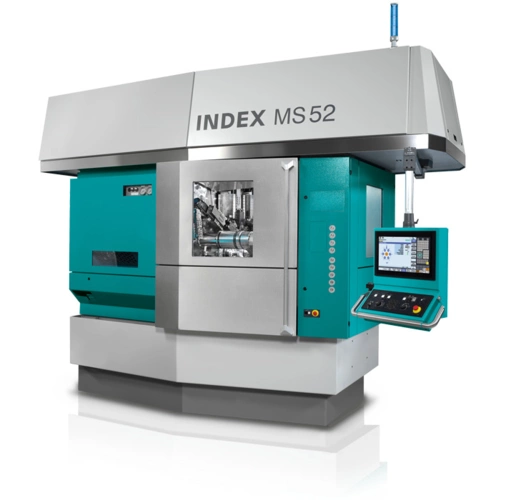

INDEX MS52-6

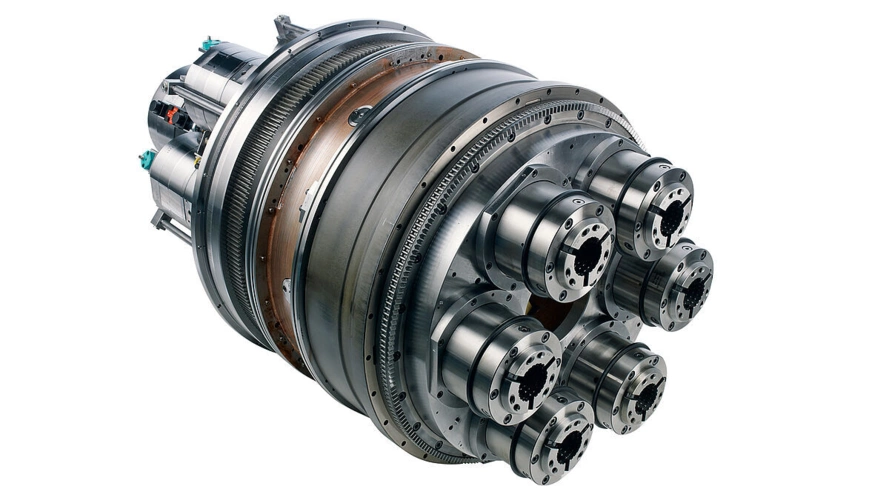

Six main spindles, up to two swivelling synchronous spindles and up to twelve tool carriers, which can be configured in X Y Z: With the MS52-6, which can be configured as required, we offer a machine concept that fulfils all requirements and meets the highest demands.

The MS52-6 has been consistently developed for the application of the latest production technologies. The work area is generously dimensioned and set-up costs can be minimised, especially during retooling, thanks to the free accessibility. Even when fully loaded with tools, free chip fall is guaranteed.

Machine concept

• Freely accessible work area and therefore extremely easy to set up

• Highly dynamic slides with sliding guide (X-axis)

• Wear-free Z-axis thanks to hydrostatically mounted quills

• Open-front machine for bar processing

• Chuck part machining with loading and unloading by robot or linear handling

• Extremely fast swivelling synchronous spindles with C-axis

• Swivel arm is locked in the machining position with three-part Hirth gear manufacturing for maximum rigidity

• Max. 6 tools for rear end machining per swivelling synchronous spindle

Robot productivity factor

Automated workpiece handling with robots ensures optimum production

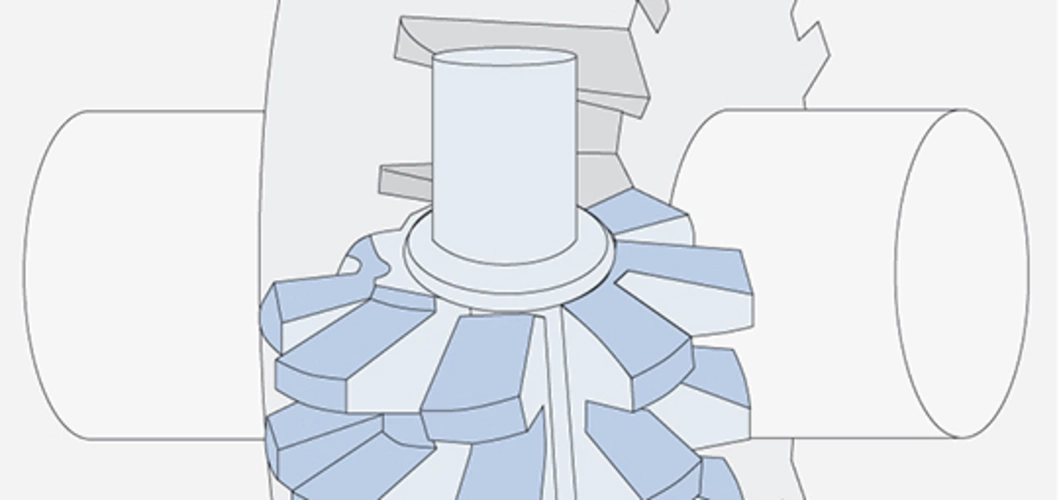

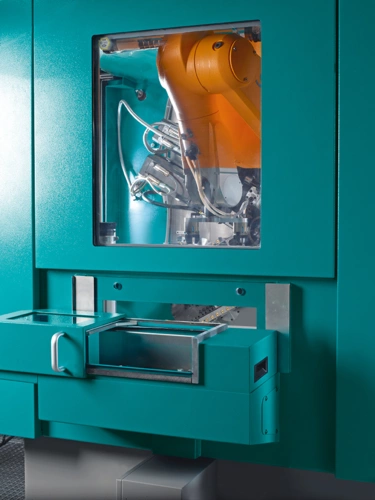

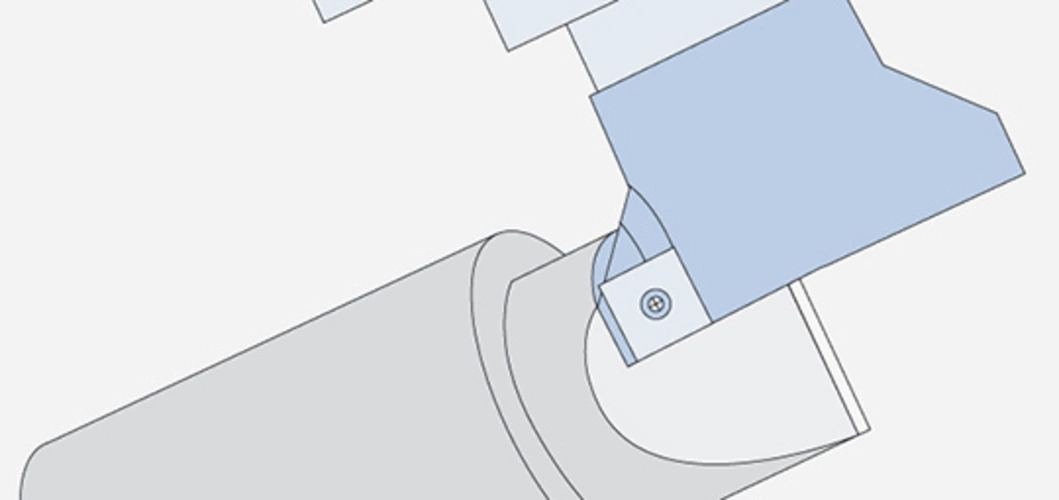

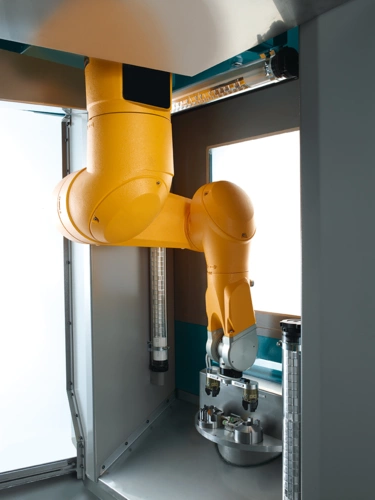

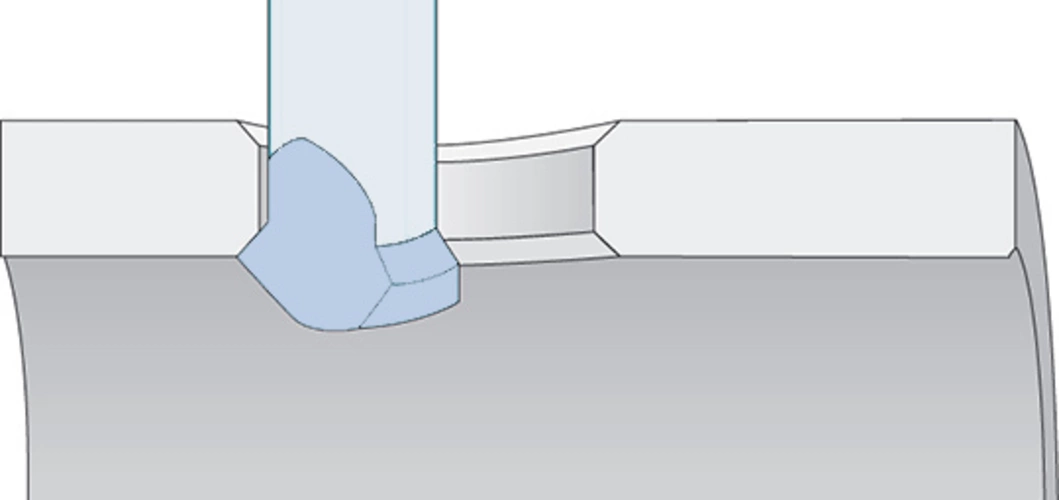

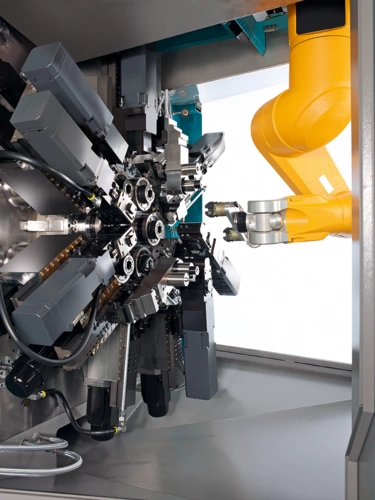

• Flexible, position-orientated loading and unloading in all 6 spindle positions using a robot with double gripper integrated in the work area
• Damage-free infeed and outfeed, even for sensitive parts
• Short loading and unloading times, also in conjunction with 2-fold or 4-fold gripper for double-three-spindle production
• Ideally suited for pick-and-place for connection to conveyor belts or palletising systems

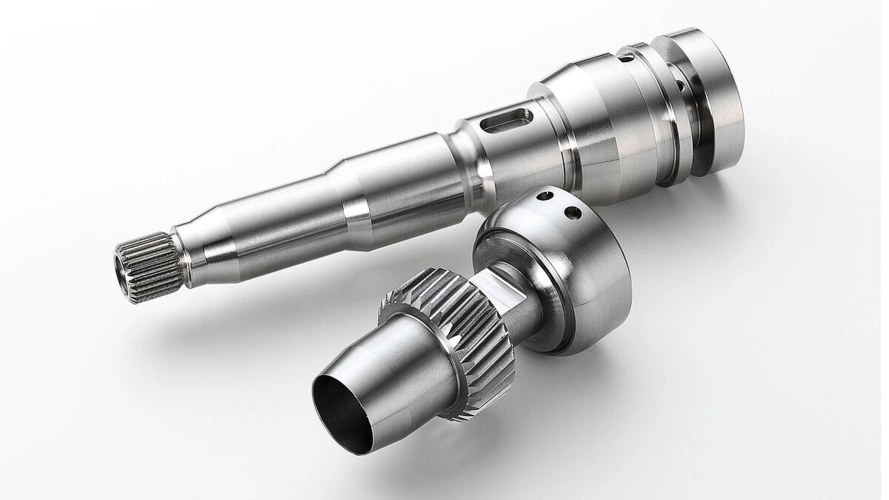

• Processing of preformed parts, forged or extruded parts up to approx. 125 mm

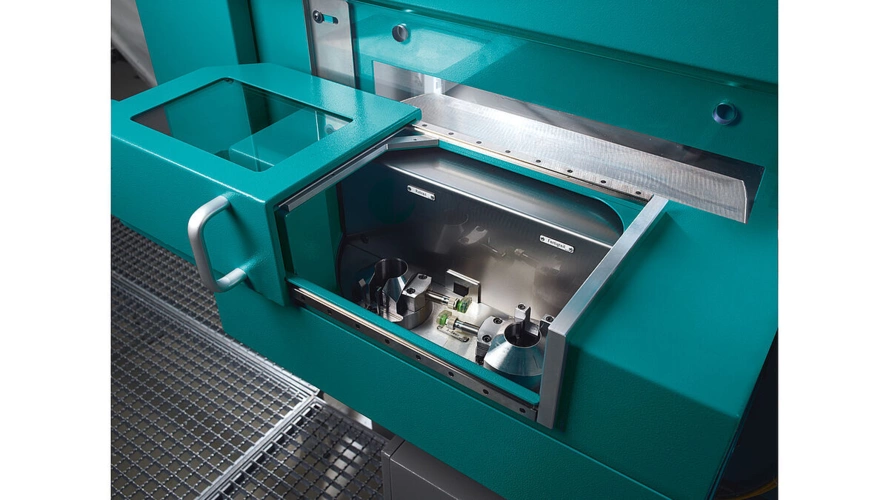

The swivelling plate: transfer to the peripheral handling interface

• Standardised interface (both mechanical and electrical)
• Closed system, therefore hardly any oil discharge
