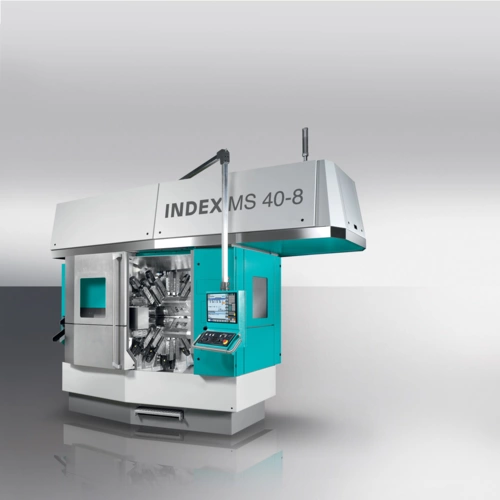

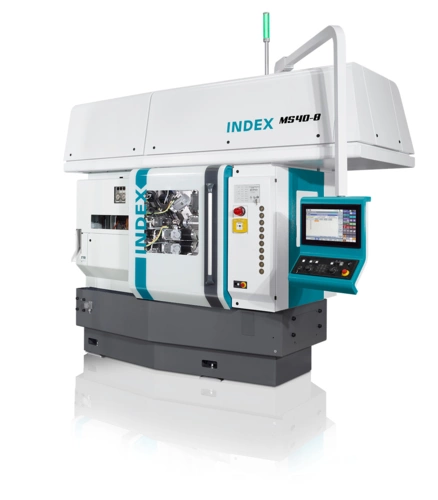

INDEX MS40-8

Eight main spindles, up to two swivelling synchronous spindles and up to a maximum of 18 tool carriers, which can be configured in XYZ: With the INDEX MS40-8, which can be configured as required, we offer a machine concept that fulfils all requirements and meets the highest demands.

The INDEX MS40-8 has been consistently developed for the application of state-of-the-art production technologies. The work area is generously dimensioned and set-up costs can be minimised, especially during retooling, thanks to the free accessibility. Even when fully loaded with tools, free chip fall is guaranteed.

Machine concept

• Freely accessible work area and therefore extremely easy to set up
• Highly dynamic slides with sliding guide (X-axis)
• Wear-free Z-axis thanks to hydrostatically mounted quills
• Open-front machine for bar processing
• Chuck part machining with loading and unloading by robot
• Directed part removal through linear handling

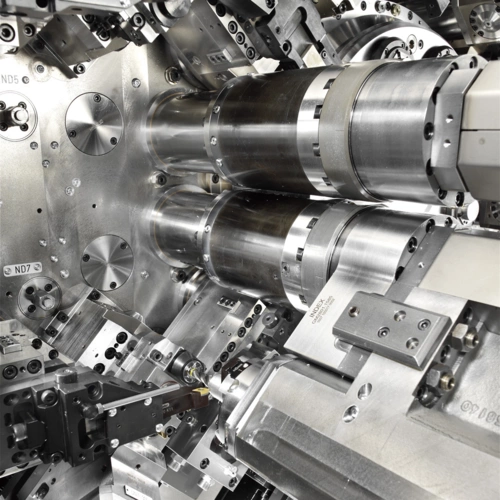

• Extremely fast swivelling synchronous spindles with C-axis
• Swivel arm is locked in the machining position with three-part Hirth gear manufacturing for maximum rigidity
• Max. 7 tools for rear end machining per swivelling synchronous spindle

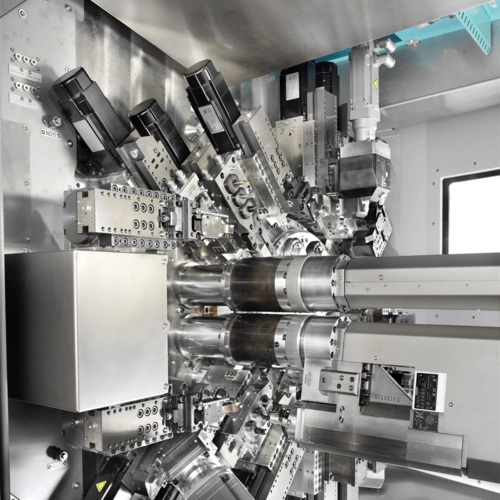

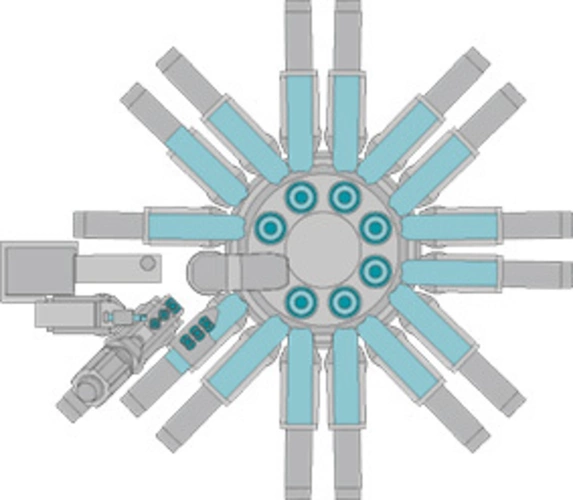

Full extension

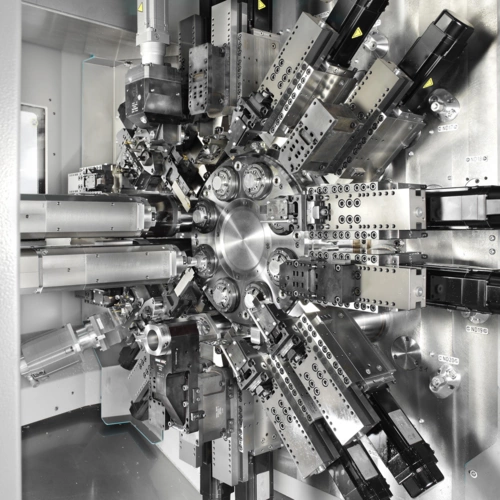

• 14 tool carriers with 1, 2 or 3 traversing axes
• Back-boring slide with up to 7 tools, of which max. 4 are driven for cut-off-side machining
• Multiple tooling of the slides possible
• Only the tool holders determine the machining direction (inside or outside)
• Cross and end face machining with driven tools

Your advantage: Reduced cycle time thanks to 8 work spindles

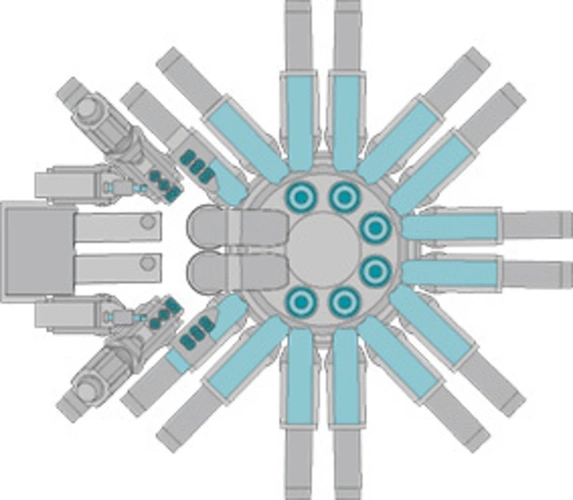

Double four-spindle machine

• 2 x 4 spindles for simultaneous production of 2 workpieces
• Available per workpiece: 6 x X/Z slides, 1 x synchronised spindle, 1 x cut-off slide with HiBo tools, 1 x HiBo slide X-NC, 1 x HiBo slide X/Z-NC
• Drum indexing: 3 x 90°= 270°(2 "machines")
• Multiple loading of the slides possible

Your benefit: Reduced cycle times thanks to parallel production

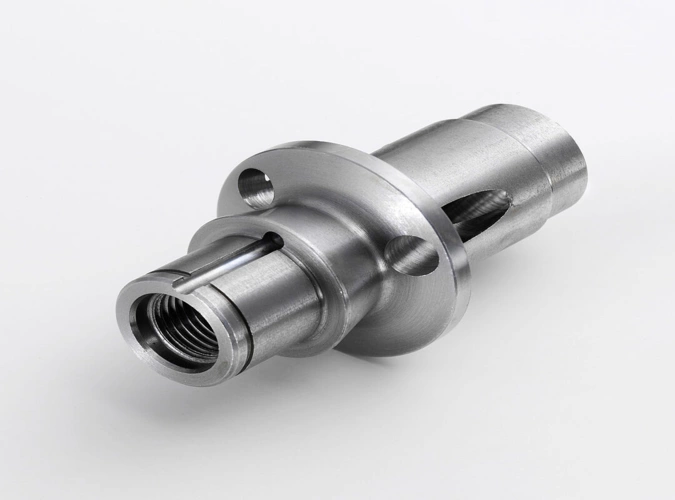

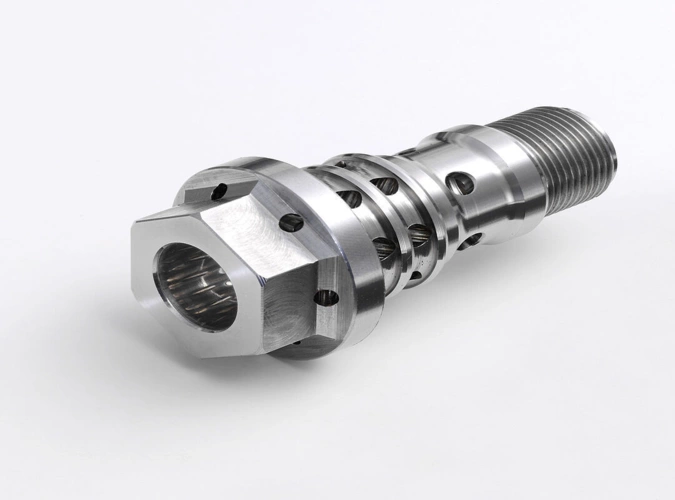

INDEX CNC multi-spindle automatic lathes with driven tools open up completely new possibilities for you, such as eccentric drilling and tapping, helical drilling, cross drilling, contour milling, hobbing (gear manufacturing) and polygon turning.
