INDEX MS16-6 Plus

73730 Esslingen am Neckar

bookmark Write a note

Print page

General information

Place Plochinger Straße 92, 73730 Esslingen am Neckar
Creation date 05.06.2024
Ad-ID 100937

Search criteria

Bar capacity max. 22 mm
Number of working spindles [items] 6 items
Number of synchronous spindles [items] 2 items
Y-axis? nein
Total Number of tool carriers working spindles max. [items] 17 items
Total Number of tool carriers cutoff/backside max. [items] 2 items
Number of tools for backworking max. [items] 3 items
Control (manufacturer) INDEX C200 sl (Basis Siemens S840D sl)
Machine manufacturer (list selection) INDEX-Werke GmbH & Co.KG Hahn & Tessky

further specifications

Synchronous spindles speed max. 10000 rpm
Synchronous spindles power max. 12 kW
Z-traverse synchronous spindles slide 140 mm
X-Y-Z-traverse tool carrier slide 45-0-70 mm
Installation length 2599 mm
Installation width 1300 mm
Installation height 3044 mm
Machine weight 5,2 t

Contact us

First name *

Surname *

E-mail address *

Your message *

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Notes on privacy policy

Report ad

Reason *

E-mail address *

Your message *

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Notes on privacy policy

Description

Bar diameter max. 22 mm, six work spindles, two synchronised spindles, max. twelve tool carriers with 1 or 2 traversing axes

CNC multi-spindle automatic lathe for high productivity

The INDEX MS16-6 Plus combines the flexibility of the latest INDEX CNC multi-spindle technology with the renowned productivity of cam-controlled machines. With 5 extremely rigid CNC grooving slides, optional drilling slides instead of grooving slides and additional machining slides with X and Z axes, almost all geometries and machining tasks can be realised with the convenience of a state-of-the-art open-front INDEX CNC multi-spindle machine. The shortest changeover times, highest dynamics and lowest non-productive times define the lowest workpiece costs.

Extremely high power density for maximum production output with the smallest footprint

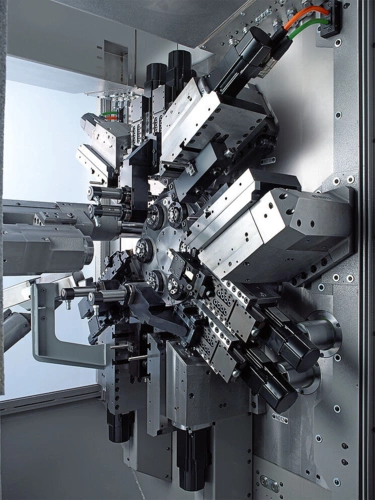

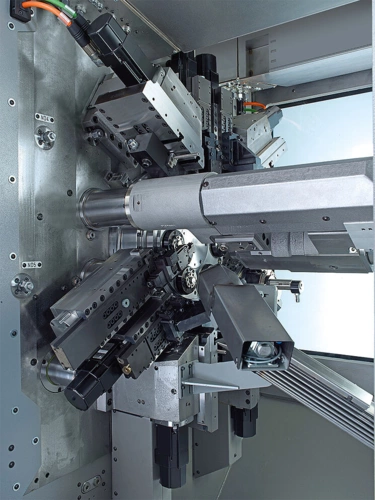

Freely accessible and easy to set up work area
Grooving or drilling slides for maximum cutting performance with the shortest machining times
Fast tool set-up thanks to INDEX W gear manufacturing
Spindle drum with individual drives for the work spindles
Cross slides for flexible complete machining
CNC cut-off slide with extended stroke for back machining
Max. 2 highly dynamic synchronised spindles with extremely short acceleration and deceleration times
Optional: cut-off slide and separate rear machining slide

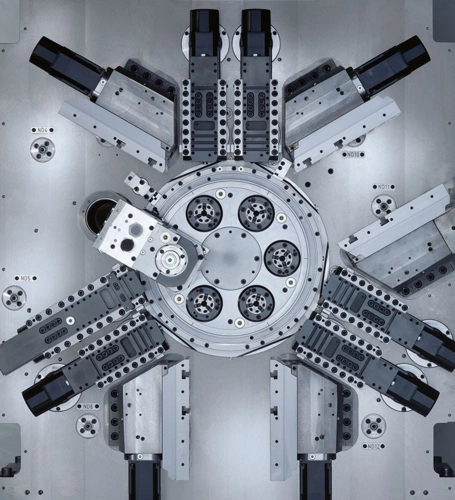

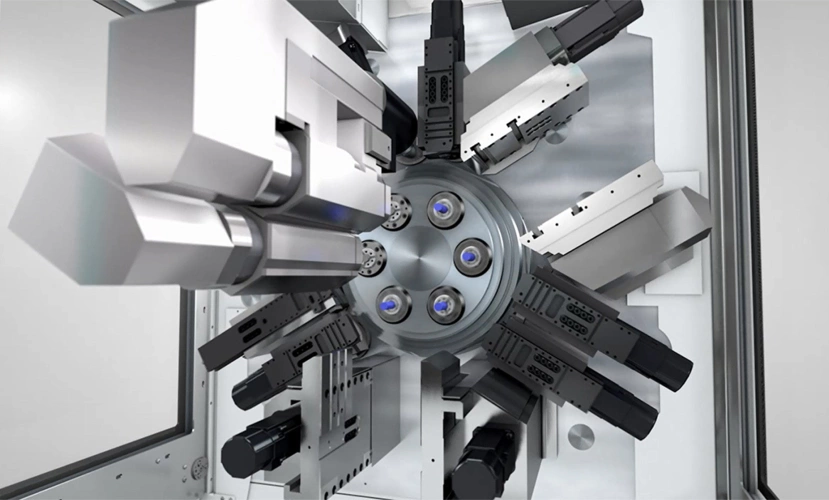

Our trademark: the spindle drum

The compact spindle drum enables maximum precision in every position thanks to the use of three-part Hirth gear manufacturing. The centrepiece is formed by 6 fluid-cooled motor spindles integrated in the spindle drum. Infinitely variable speed control, high torque, high thermal stability, small size and maintenance-free - these are the criteria by which you can recognise an INDEX CNC multispindle machine.
