INDEX MS16-6
- Erstellungsdatum:
General information
| Plochinger Straße 92, 73730 Esslingen am Neckar |
| 05.06.2024 |
| 100936 |
Search criteria
| 16 mm |
| 6 items |
| 2 items |
| no |
| 17 items |
| 2 items |
| 3 items |
|
| INDEX-Werke GmbH & Co.KG Hahn & Tessky |
further specifications
|
|
| 140 mm |
| 45-0-70 mm |
| 2599 mm |
| 1300 mm |
| 3044 mm |
| 5,2 t |
Contact us
Report ad
Description
Bar diameter max. 16 mm, six work spindles, two synchronised spindles, max. twelve tool carriers with 1 or 2 traversing axes

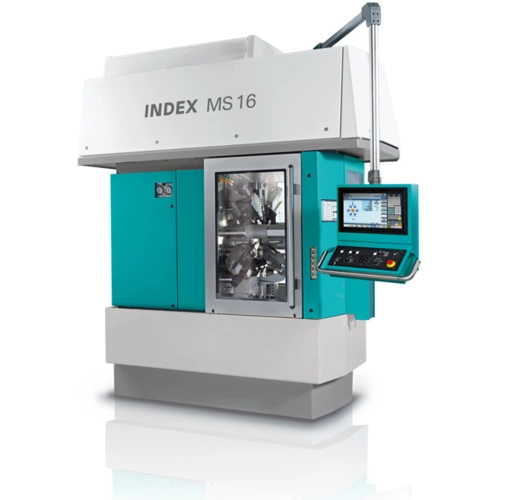

CNC multi-spindle automatic lathe for high productivity

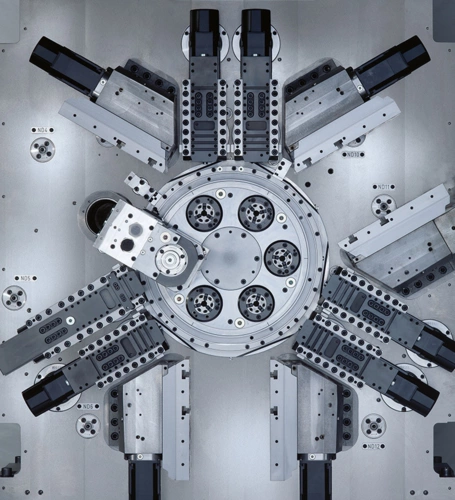

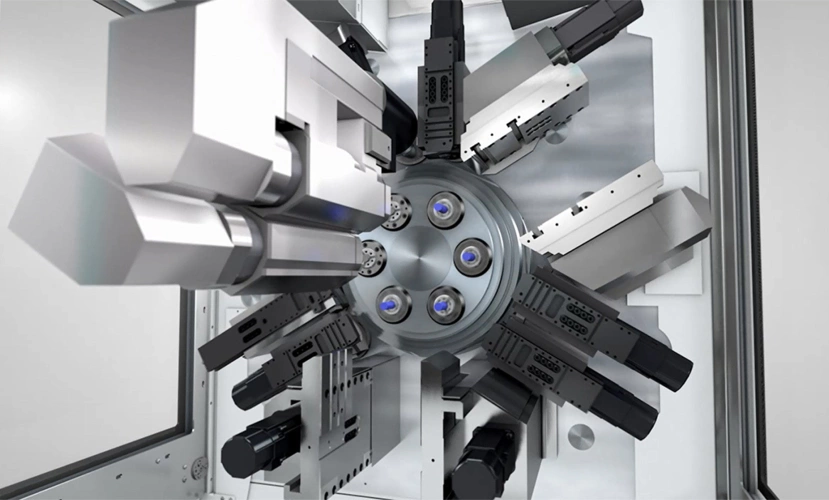

The INDEX MS16-6 combines the flexibility of the latest INDEX CNC multi-spindle technology with the renowned productivity of cam-controlled machines. With 5 extremely rigid CNC grooving slides, optional drilling slides instead of grooving slides and additional machining slides with X and Z axes, almost all geometries and machining tasks can be realised with the convenience of a state-of-the-art open-front INDEX CNC multi-spindle machine. The shortest changeover times, highest dynamics and lowest non-productive times define the lowest workpiece costs.
Extremely high power density for maximum production output with the smallest footprint
- Freely accessible and easy to set up work area
- Grooving or drilling slides for maximum cutting performance with the shortest machining times
- Fast tool set-up thanks to INDEX W gear manufacturing
- Spindle drum with individual drives for the work spindles
- Cross slides for flexible complete machining
- CNC cut-off slide with extended stroke for back machining
- Max. 2 highly dynamic synchronised spindles with extremely short acceleration and deceleration times
- Optional: cut-off slide and separate rear machining slide

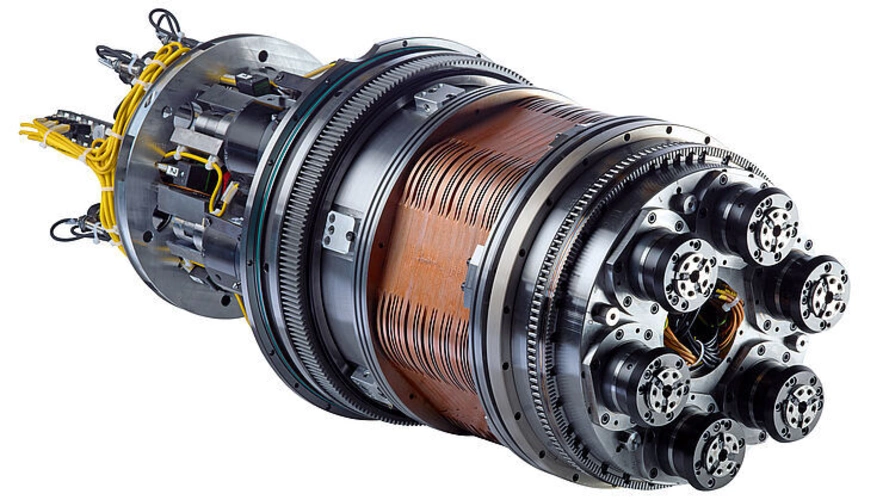

Our trademark: the spindle drum
The compact spindle drum enables maximum precision in every position thanks to the use of three-part Hirth gear manufacturing. The centrepiece is formed by 6 fluid-cooled motor spindles integrated in the spindle drum. Infinitely variable speed control, high torque, high thermal stability, small size and maintenance-free - these are the criteria by which you can recognise an INDEX CNC multispindle machine.
