73730 Esslingen am Neckar |
04.06.2024 |
100933 |
2300 mm |
500 mm |
120 mm |
nein |
3 Items |
ja |
ja |
|
|
INDEX-Werke GmbH & Co.KG Hahn & Tessky |
295 mm |
200 mm |
50 mm |
210 mm |
40 mm |
18 Items |
|
|
|
|
|
|
5400 rpm |
18 kW |
42 Nm |
6000 mm |
3025 mm |
3165 mm |
30 t |
We will forward your message to the e-mail address you entered.
A problem has occurred while sending your message. Please check your details or contact the publisher.
Thank you for your message, it will be forwarded to the provider.
A problem has occurred while sending your message. Please contact the publisher.
Thank you for your message, it will be forwarded to the provider.
A problem has occurred while sending your message. Please contact the publisher.

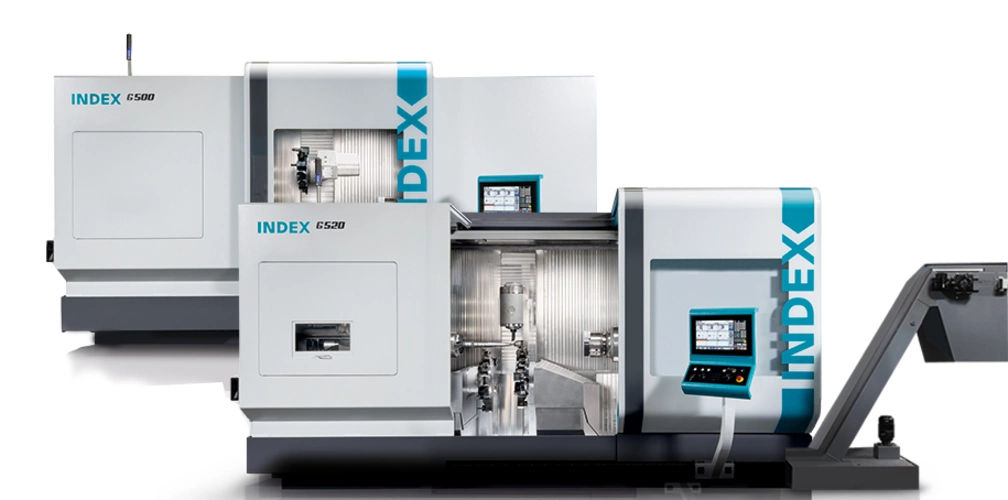

Machine bed in mineral cast block design, identical main and counter spindles, up to 151 tools in stock, large work area, optimum chip fall: The INDEX G500 is an innovative turning/milling centre in a class of its own - especially when it comes to the efficient production of large workpieces with high complexity and variance.
Based on a rigid and vibration-damping machine bed in mineral-cast block construction and generously dimensioned linear guides in the X and Z axes, this series stands for modern machine construction and therefore for excellent machining results with high productivity.

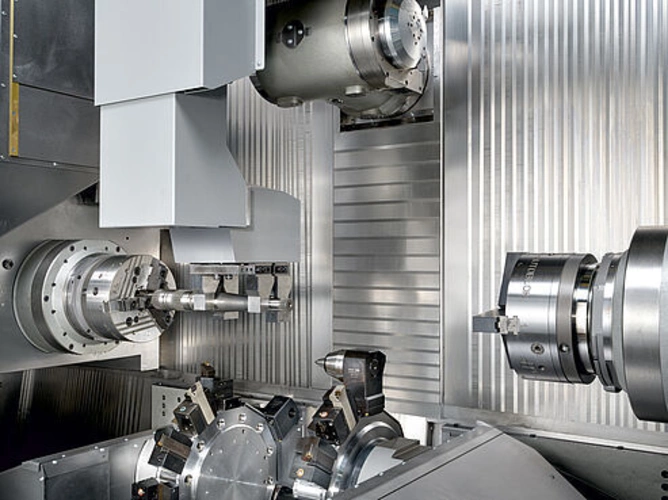

Three tool carriers with a tool supply of up to 151 tools offer maximum flexibility for the complete machining of complex workpieces. A total of up to 14 productive axes ensure convincing work results without exception. The large work area, which is unique in this class, impresses with sophisticated equipment features that enable simultaneous machining with all three tool carriers without collisions.
The vertically sloping interior panelling ensures optimum chip fall. The chip conveyor can be mounted on the right or left, depending on customer requirements.
The INDEX G500 stands for the production of a wide range of products in many industries such as mechanical engineering, automotive and aerospace.
Machine concept
Video:
INDEX G520 - Production of a flanged shaft

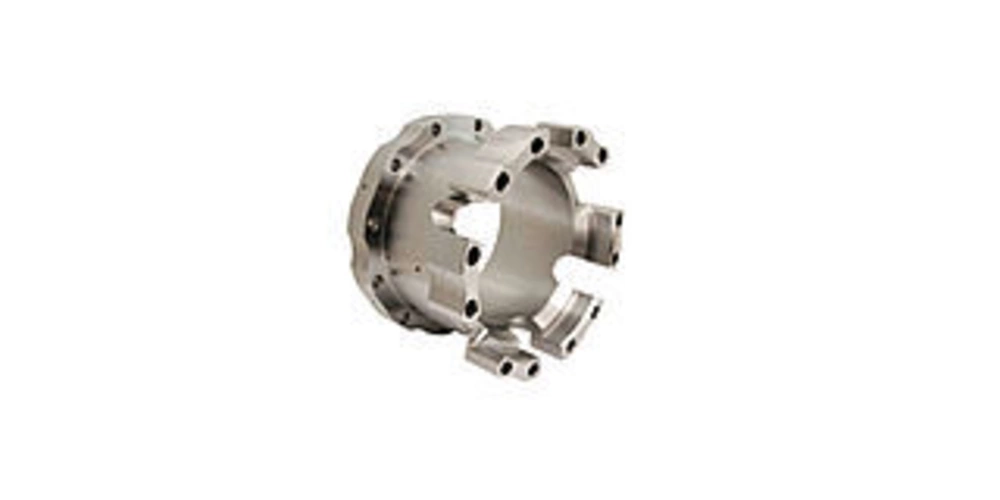

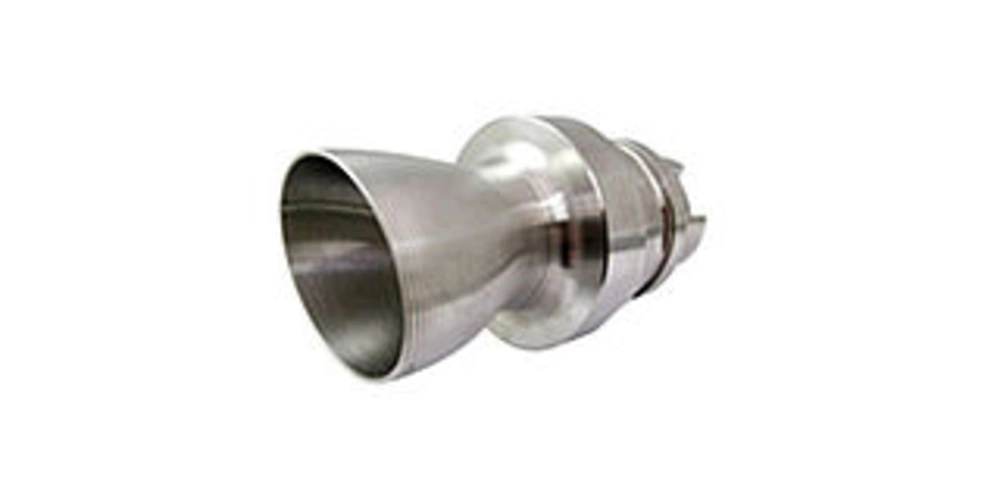

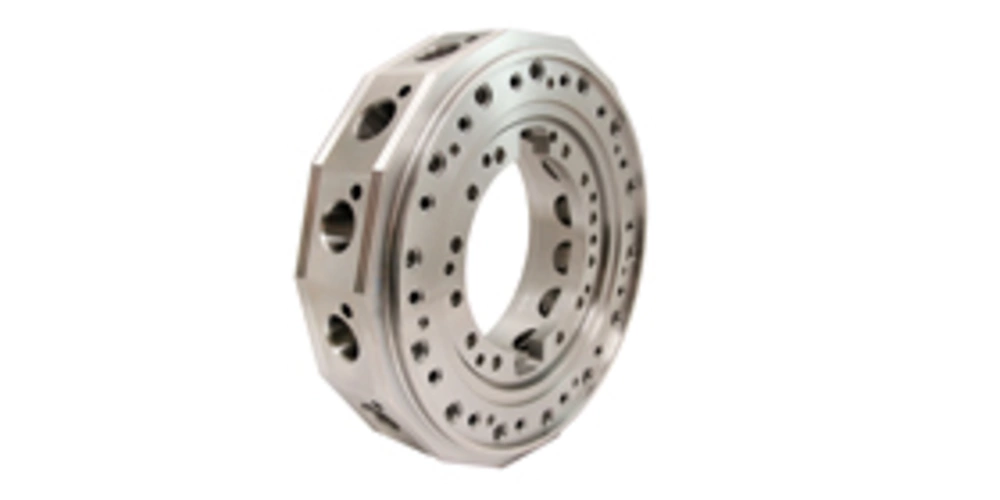

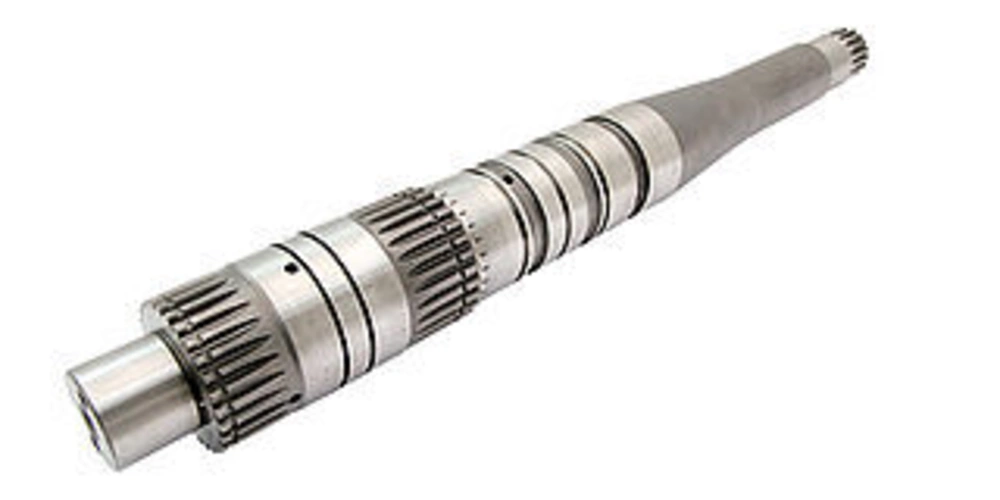

Wide range of parts
The INDEX G500 turning/milling centre offers the best performance for customers in the mechanical engineering, automotive and aerospace industries with high availability and process reliability - the complete solution when it comes to high-performance machining of large workpieces.

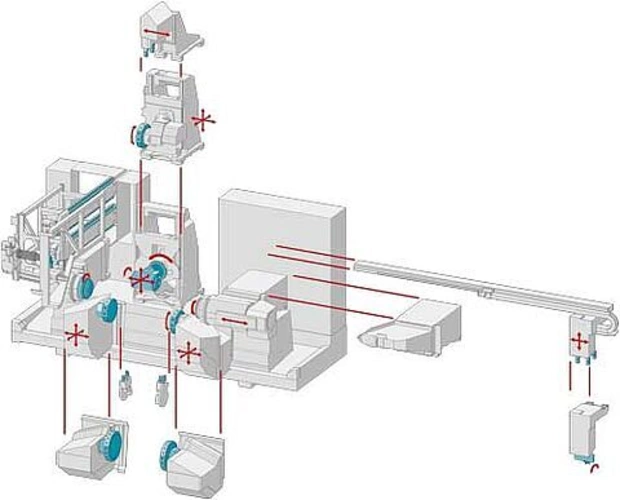

Complete machining from the modular system

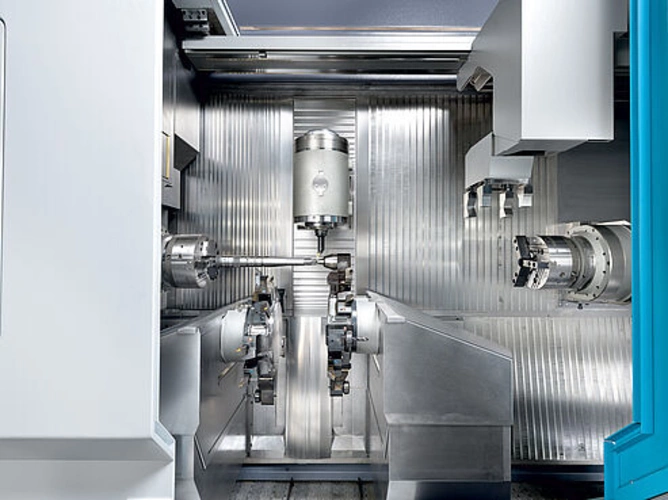

The modular system of this series offers a wide range of options. Up to 3 tool carriers can be integrated into the work area. The work area offers ample space for machining all types of workpieces. The work area can accommodate parts up to a length of 1,600 / 2,300 mm. The powerful main and counter spindles are designed for bar diameters up to Ø 120 mm and for chucked parts up to Ø 500 mm. Turret steady rests are available for machining long or shaft-shaped parts.

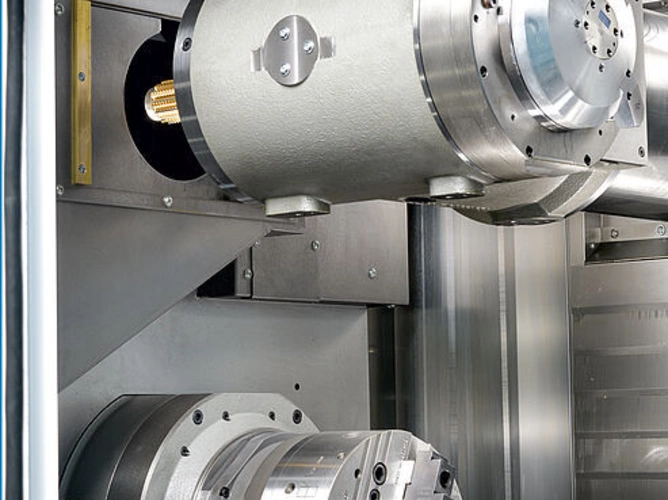

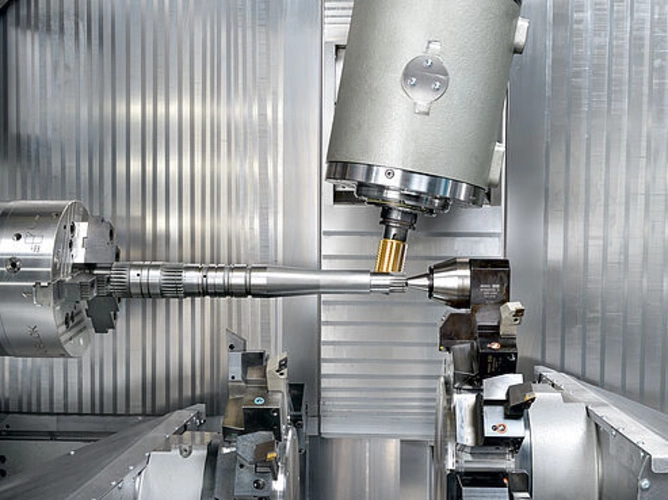

The INDEX G520 version is equipped with a powerful motorised milling spindle and is therefore able to perform 5-axis machining operations simultaneously. Great importance was attached to the ergonomic set-up and operating concept in the new development. All relevant components are easily accessible for operating and maintenance personnel.

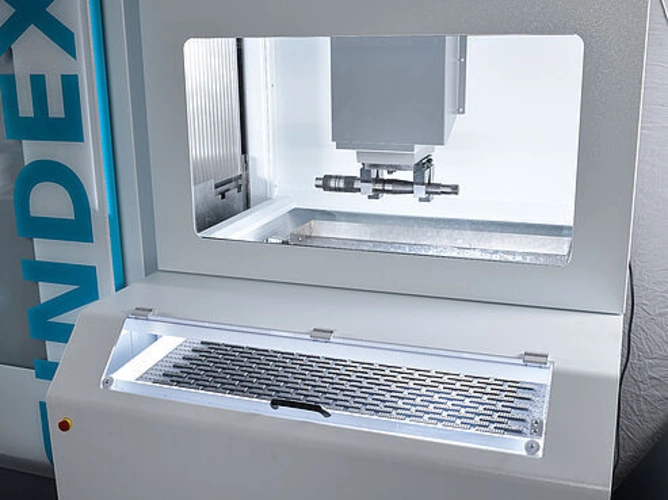

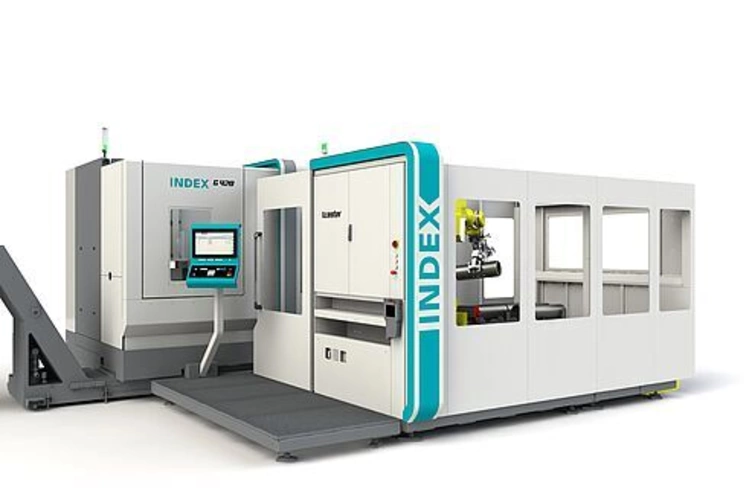

The modular iXcenter robot cell is available for all machines in this series for the flexible feeding and removal of raw and finished parts.
iXpanel
The iXpanel operating concept opens up access to networked production.
With iXpanel, all relevant information for economical production is available to the employee at all times directly at the G500 turning/milling centre. iXpanel is already included as standard and can be individually expanded. You can use iXpanel as you wish for your company organisation - Industry 4.0 made to measure.
