Plochinger Straße 92, 73730 Esslingen am Neckar |
10.06.2024 |
100950 |
400 mm |
65 mm |
3 items |
14 items |
|
|
INDEX-Werke GmbH & Co.KG Hahn & Tessky |
|
|
|
|
|
|
8000 rpm |
10 kW |
16 Nm |
160 mm |
6910 mm |
2092 mm |
2490 mm |
3,5 t |
We will forward your message to the e-mail address you entered.
A problem has occurred while sending your message. Please check your details or contact the publisher.
Thank you for your message, it will be forwarded to the provider.
A problem has occurred while sending your message. Please contact the publisher.
Thank you for your message, it will be forwarded to the provider.
A problem has occurred while sending your message. Please contact the publisher.

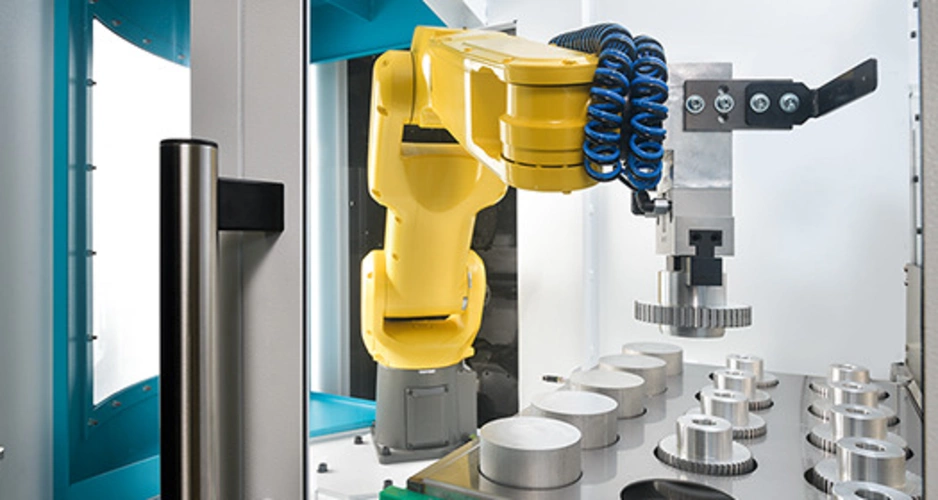

Turning length max. 400 mm, bar diameter max. 65 mm, optional robot cell

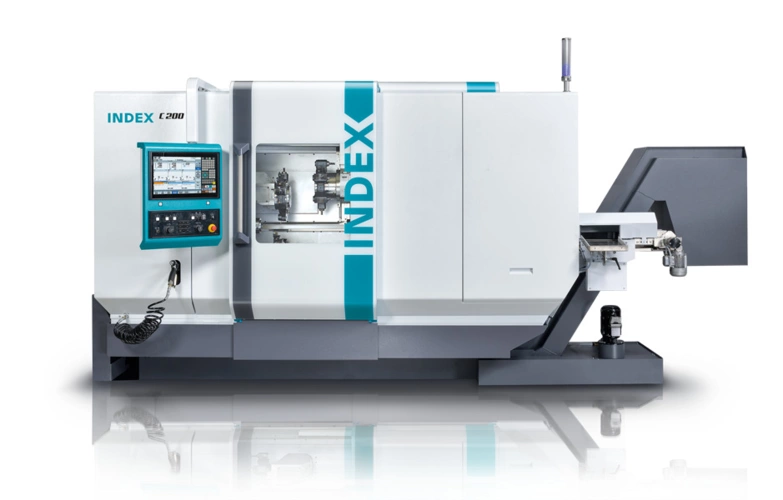

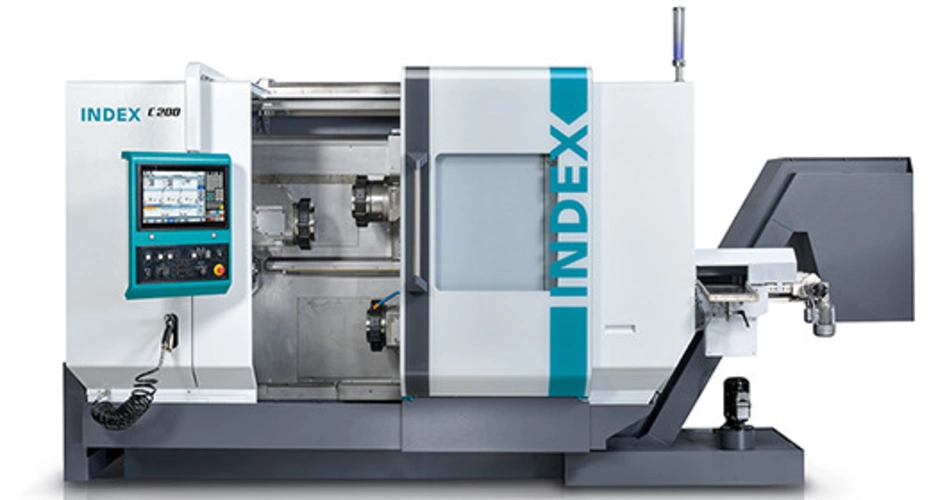

Despite their compact external dimensions, the INDEX C100 and C200 2- or 3-turret machines offer a generous working area for the complete machining of workpieces. The INDEX SingleSlide guide system ensures very high dynamics with optimum vibration damping. This has a very positive effect on workpiece quality and tool life, while at the same time reducing cycle times.
The machine concept

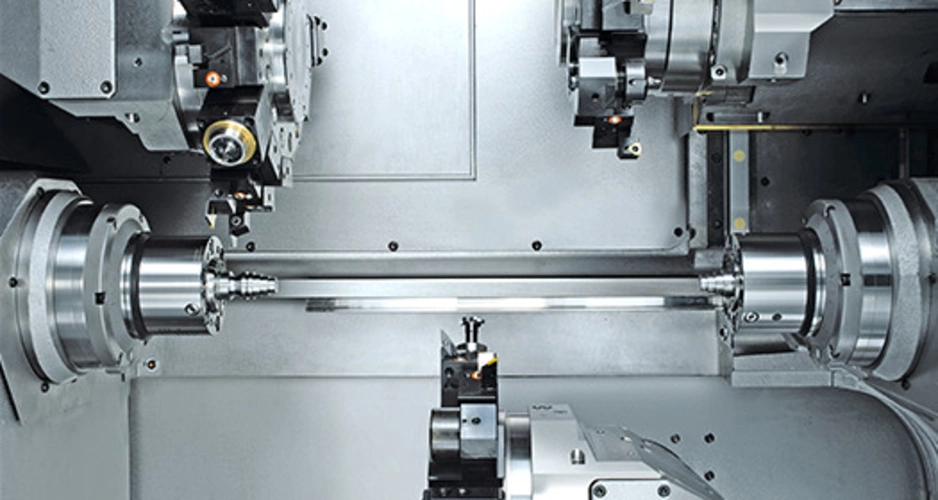

Two powerful spindles

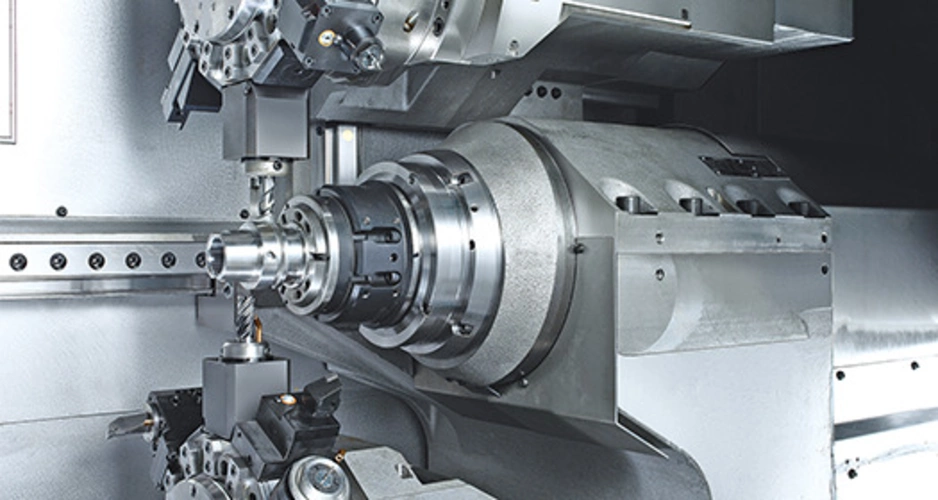

The two powerful motorised spindles ensure particularly powerful machining. The main and counter spindles are identical and liquid-cooled. The rapid traverse of the counter spindle is 60 m/min (C100).
Three turrets with a maximum of 42 stations
The large tool stock with a maximum of 3 x 14 stations and the patented INDEX W gear manufacturing ensure short set-up times, even for small batch sizes. The exceptionally high dynamics and fast turret indexing reduce chip-to-chip times.
Two Y-axes for optimum division of labour
2 x Y-axis possible on the main spindle or 1 x each on the main and counter spindles. This means that even complex work sequences can be optimised and cycle times reduced.
Integrated handling system for parts removal
The integrated gantry removal device ensures fast and damage-free workpiece removal. In addition, the bar remnant can be removed separately from the main spindle.
