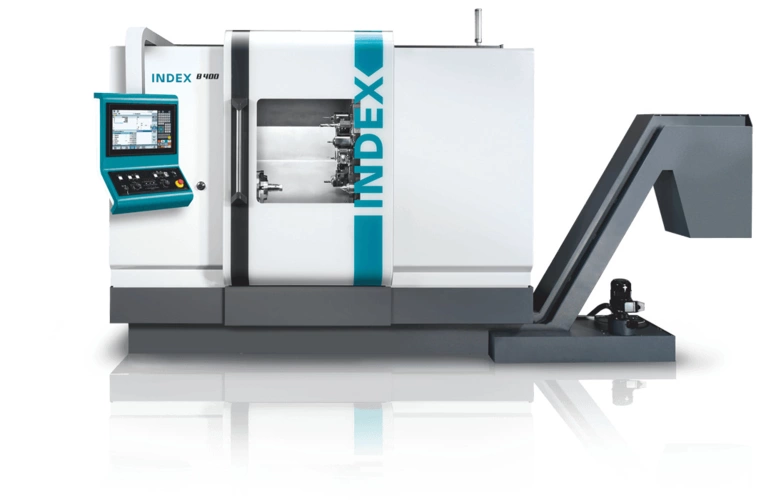

INDEX B400

For difficult-to-machine materials: rigid and vibration-damping machine bed, working spindle with belt drive for high torque, turning length up to 1,200 mm

The INDEX B400 universal lathe impresses with its innovative machine design and takes universal turning to a new dimension.

The rigid and vibration-damping machine bed in mineral-cast block design ensures the best results when machining complex workpieces from batch size 1. With a high spindle torque up to the upper speed ranges, even difficult-to-machine materials can be machined reliably. A special feature of the INDEX B400 is the completely redesigned, clearly structured work area for a wide range of applications.

A turning length of up to 1,200 mm allows a wide range of machining options. With the optionally available counter spindle, rear side machining can be carried out with high precision.

The ergonomic design ensures quick set-up and easy operation of the machine.

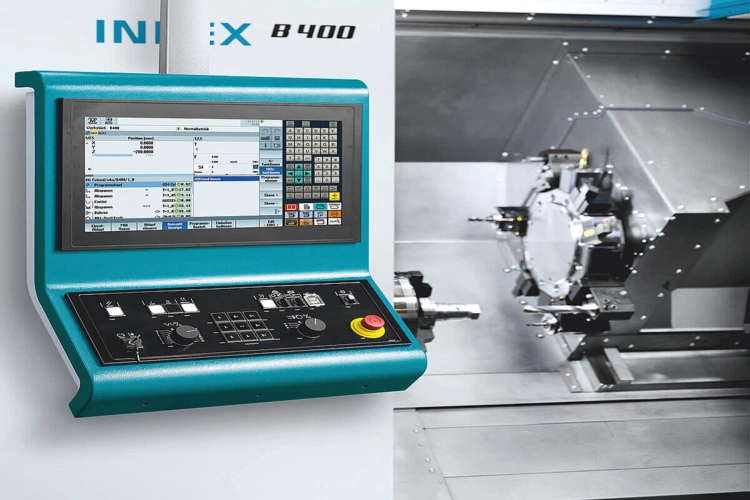

The proven INDEX iXpanel operating concept and the 18.5" touch monitor provide the operator with all relevant data for efficient production and access to networked production at all times.

Machine concept

• Clearly structured and ergonomically sophisticated workspace concept
• Rigid mineral casting bed in 45° block design for high accuracy
• Work spindle with belt drive for high torques
• Spindle head A8 / A11, spindle passage Ø 82 / 102 mm, chuck up to Ø 315 / 400 mm
• Generously dimensioned bed guides
• Star turret for 18 tools with VDI 30 / VDI 40 mounting and W gear manufacturing for high process reliability or disc turret for 12 tools with VDI 40 mounting (only in conjunction with tailstock)
• Orthogonal, linear Y-axis for high accuracy
• Large axis strokes X 360 mm / Y ±60 mm / Z 750 mm
• Available options
  • Long version with turning length up to 1,200 mm
  • Counter spindle with A6 / A8 interface
  • NC tailstock with electronically controllable axis
  • Steady rest, electronically positionable
  • Bar package with short bar loader
  • INDEX EcoFluid
  • Workpiece handling

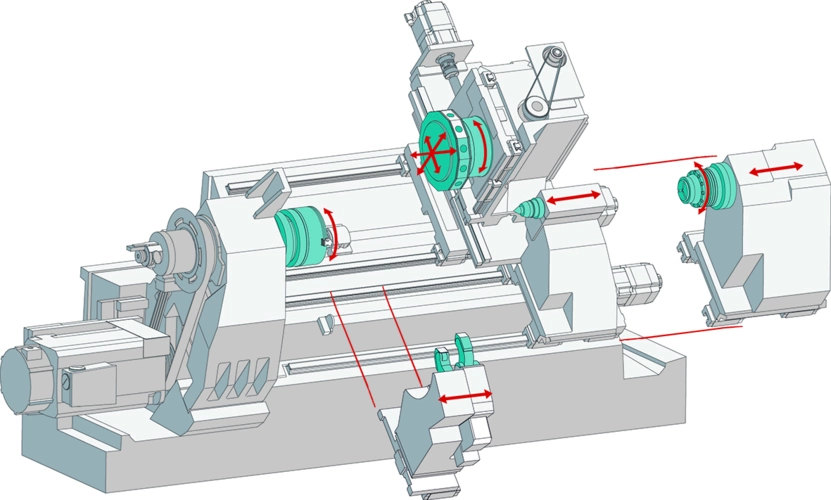

Structured machine design

The INDEX B400 CNC universal lathe represents a consistent further development of proven manufacturing solutions.

Individually equipped, this new flexible universal lathe finds its place in tool and prototype construction as well as in production. Decades of expertise in universal turning are reflected in numerous design details, such as a pocket in the sheet metal panelling above the main spindle, which enables the collision-free use of very long boring bars, and much more.

Ergonomic operating concept

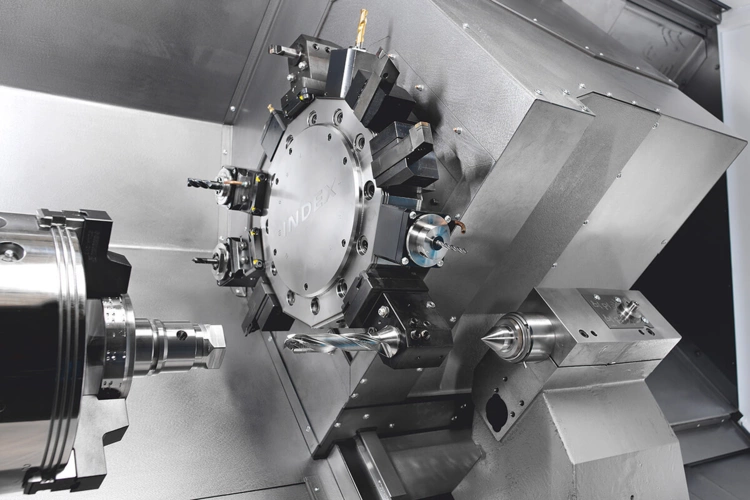

The generously dimensioned work area ensures optimum accessibility when setting up the INDEX B400. The main spindle and tool turret of the universal lathe are easily accessible, ensuring fast and flexible set-up and changeover. The well thought-out work area concept with steeply sloping and smooth covers enables an ideal chip fall and prevents chip nests.
