HCN-5000 NEO
0 EUR
General information
| 20.05.2025 |
| 101522 |
Search criteria
| 3 Items |
| 730 mm |
| 730 mm |
| 800 mm |
| 500 kg |
| 800 mm |
| 1000 mm |
|
|
| 40 Piece |
|
| YAMAZAKI MAZAK Deutschland GmbH |
further specifications
| 60-60-50 m/min |
| 95 mm |
| 510 mm |
| 12 kg |
| 5744 mm |
| 2623 mm |
| 2813 mm |
| 11,7 t |
Contact us
Report ad
Description

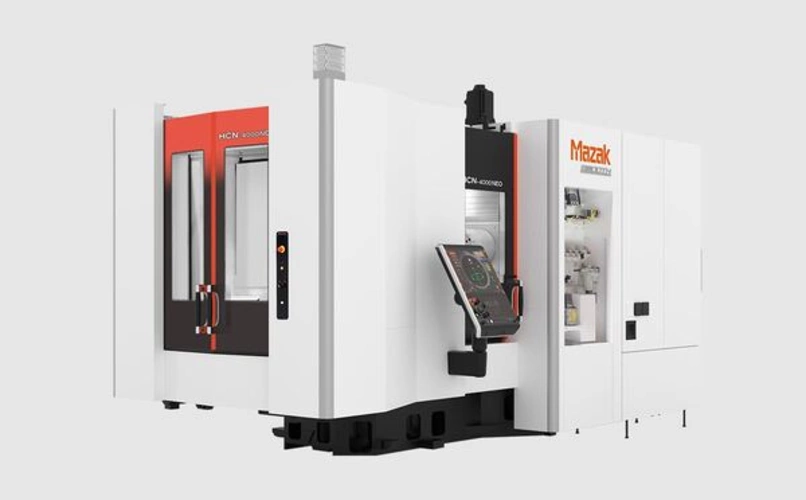

High-speed, high-precision horizontal machining centre that achieves both high productivity and a lower environmental impact - Pallet dimensions: 500 mm × 500 mm
-
A wide range of spindle designs for the most diverse production requirements
-
Reduced downtimes and improved productivity thanks to NC rotary table (standard equipment)
-
Durable, high-precision machining thanks to highly rigid design and state-of-the-art compensation technology
-
Wide range of automation systems available
-
Improved environmental compatibility thanks to energy-saving components

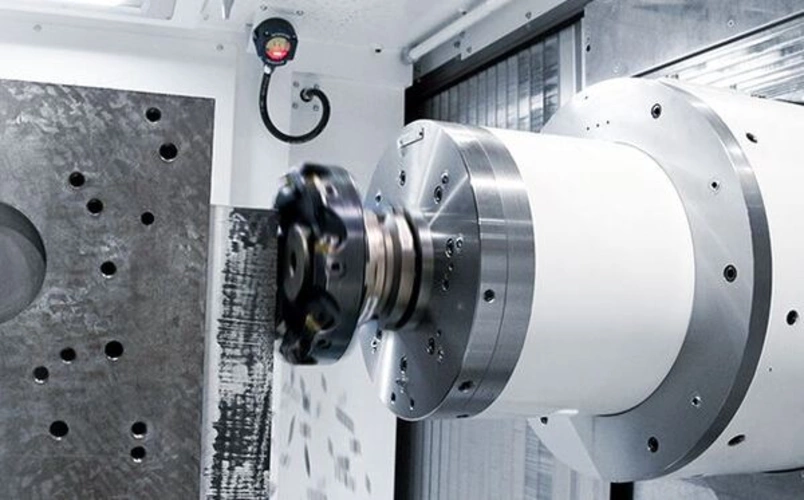

The highly rigid spindle allows you to machine demanding materials, steel and non-ferrous metals such as aluminium at high speed. For the HCN-5000 NEO, we offer special spindle variants for high speeds and high torque.

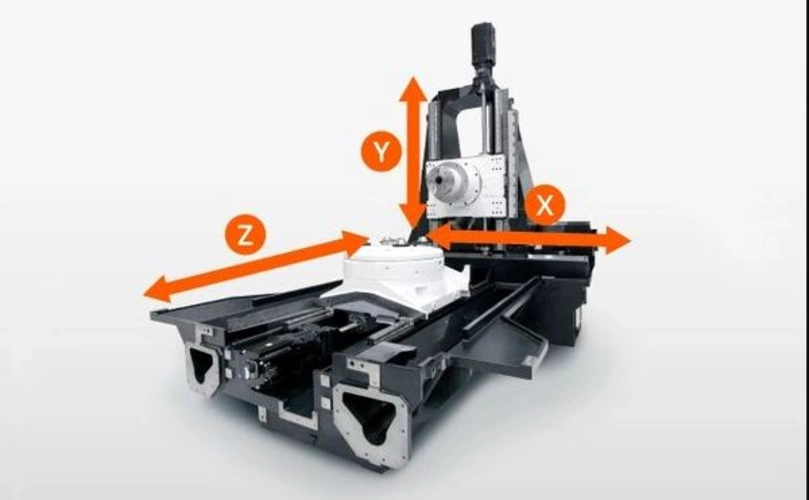

The highly rigid linear roller guide of the X- and Z-axis ensures stability during the movement of the X- and Z-axis.
The mounting surfaces of the linear guide rails of the X-axis are at different heights to ensure high rigidity and a lower overall weight. By machining close to the centre of gravity, the HCN-5000 NEO achieves high speed and precision in positioning.
The HCN series uses linear roller guides in the X, Y and Z axes for high-precision and demanding machining.
The pallet and table are connected via cone couplings to ensure high rigidity and high repeatable positioning accuracy when changing pallets.
