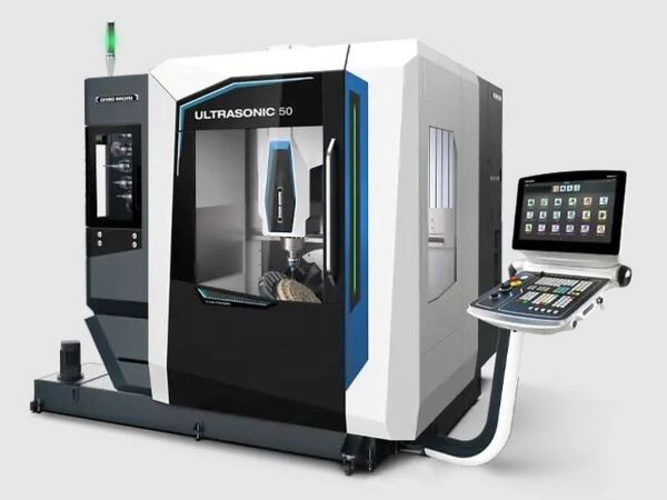

DMG MORI Ultrasonic 50

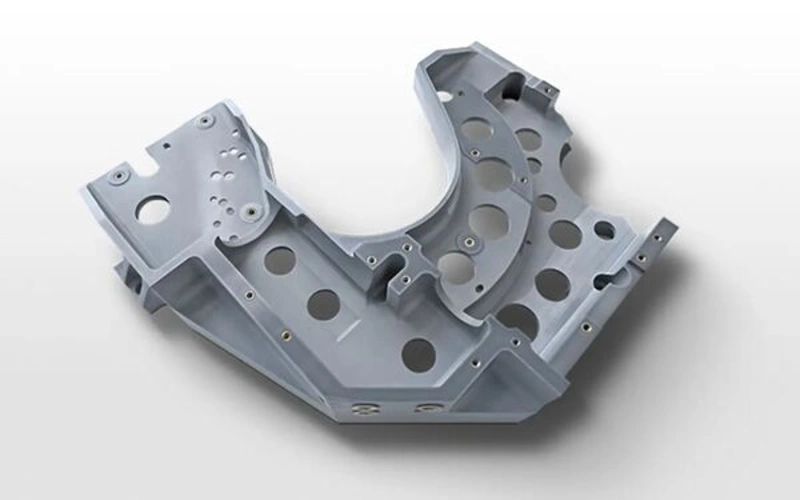

Manufacture of complex component geometries in high-tech materials such as ceramics, glass, corundum, carbide or composites

Production type: One-off production, small series (< 50), medium series (50 - 1000)

Materials: aluminium, steel, titanium, glass / ceramics, plastic / CFRP

Grinding/milling and drilling of advanced materials

The 3rd generation ULTRASONIC 50 is the ideal introduction to 5-axis ULTRASONIC machining. The successful model based on the DMU 50, which has been installed 10,000 times worldwide, offers maximum reliability and flexibility at the best price.

The requirements for workpieces made of advanced materials are highly industry-specific. However, short processing times and the associated high productivity are essential for most companies. This is precisely where the ULTRASONIC technology from DMG MORI can convince. The superimposition of tool rotation with oscillation in a longitudinal direction results in up to 50 % lower process forces. This allows feed rates and infeeds to be increased and surface finishes to be improved, or tool wear to be minimised - depending on the requirements. The depth of micro-cracks (sub-surface damage) in hard, brittle materials is reduced to a minimum.

Functional principle

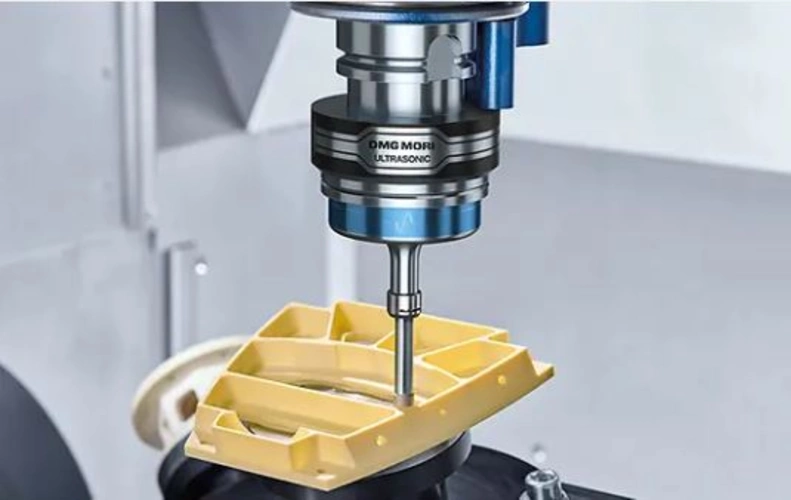

The tool rotation is superimposed with an additional oscillation in the axial direction via the HSK-E32 / HSK-E40 / HSK-A63 / HSK-A100 interface of the ULTRASONIC actuator holder (piezoelectric effect).

Highlights

• Economical grinding, milling and drilling of hard, brittle and difficult-to-machine materials
• Rigid ULTRASONIC HSK actuator mount with high amplitude power (up to 15 μm) for powerful ULTRASONIC performance
• Process forces reduced by up to 50% for maximum productivity, surface quality, precision and longer tool life
• Automatic detection and tracking of frequency and amplitude for optimum process stability
• ULTRASONIC hard machining with up to 18,000 rpm
• Optimum flexibility - 5-axis simultaneous table in standard version
• Optimum space economy - optimum accessibility to the work area, free chip flow
• Large work area with small machine dimensions

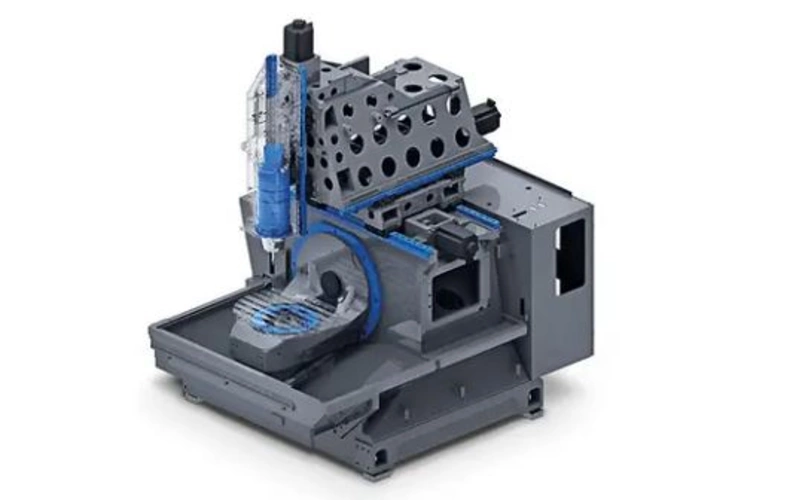

• High stability thanks to one-piece machine bed made of grey cast iron
• Digital direct drives and direct measuring systems for maximum accuracy and the best surfaces
• Parallel loading of the tool magazine during machining
• ULTRASONIC technology cycles for efficient ULTRASONIC machining

Customer benefits

• Manufacturer of complex component geometries in a single clamping operation

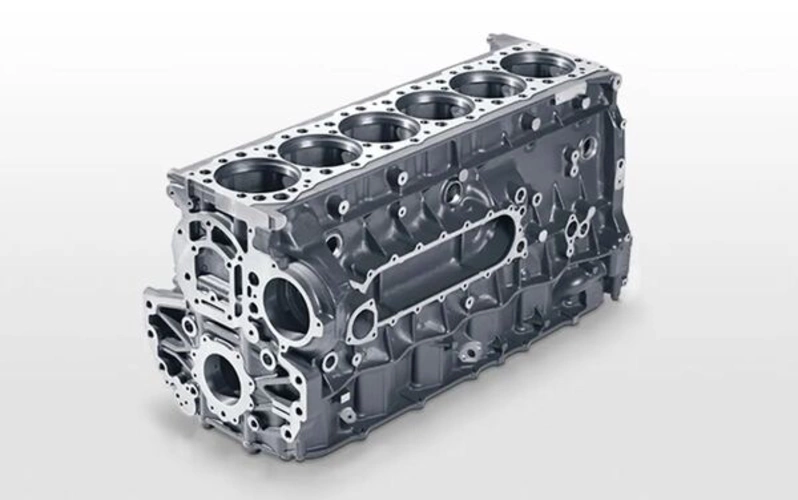

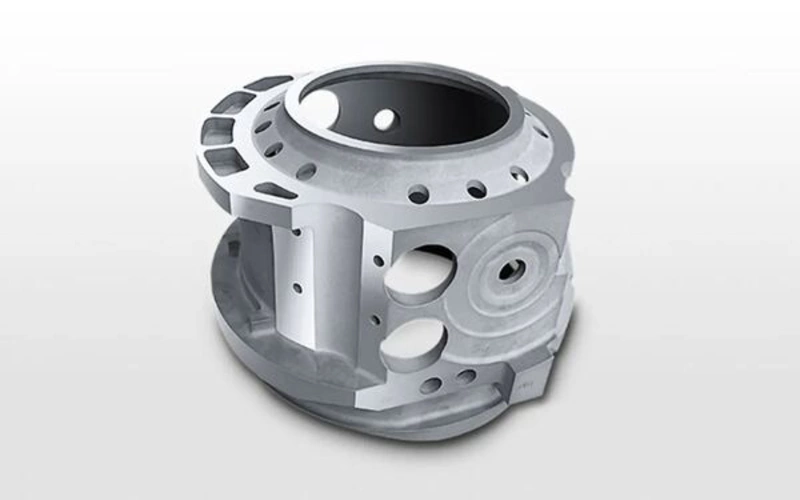

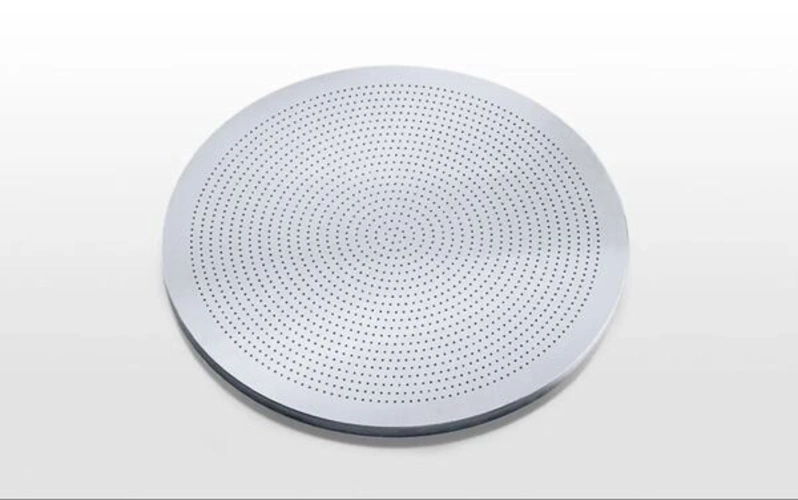

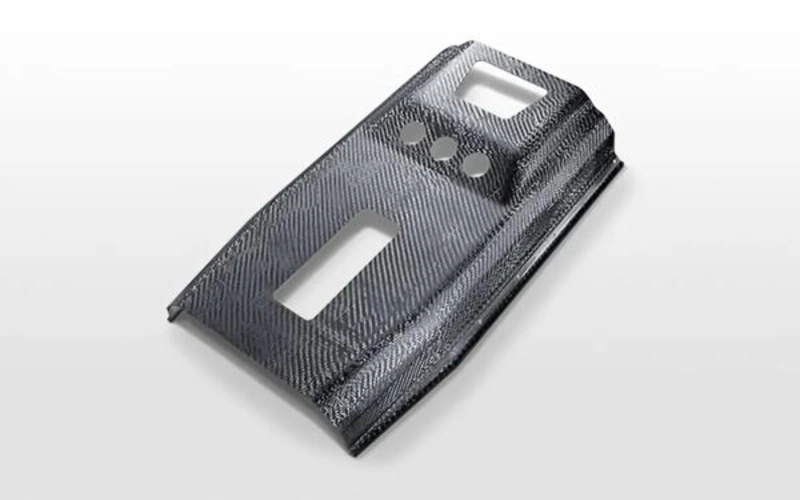

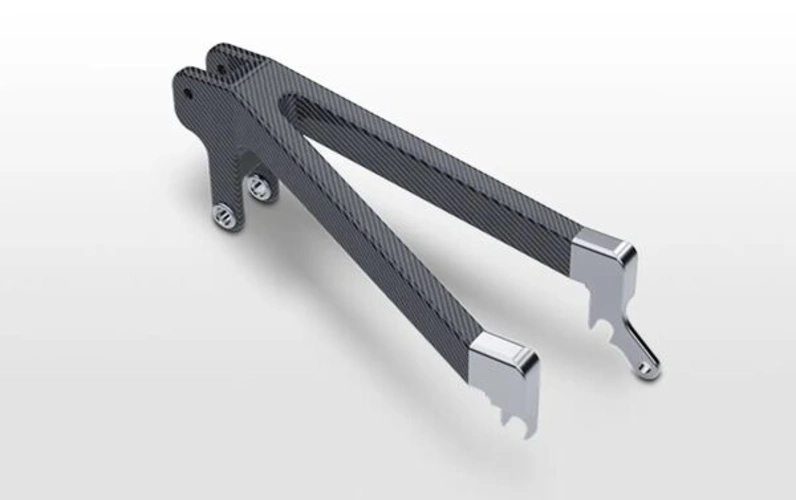

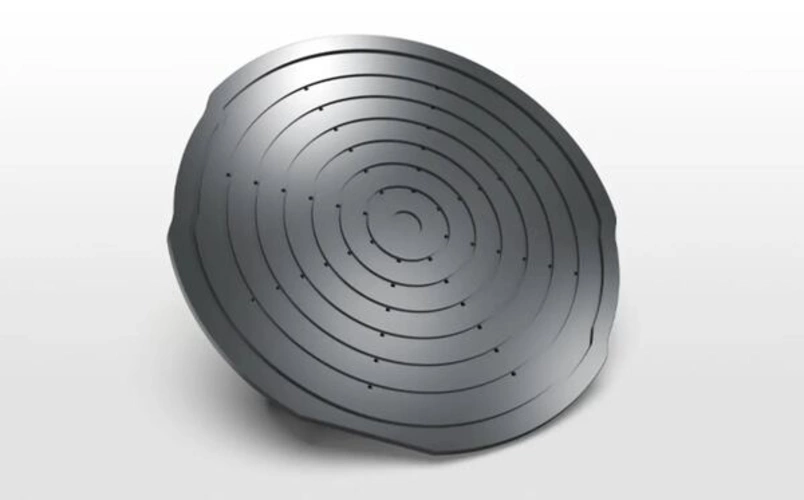

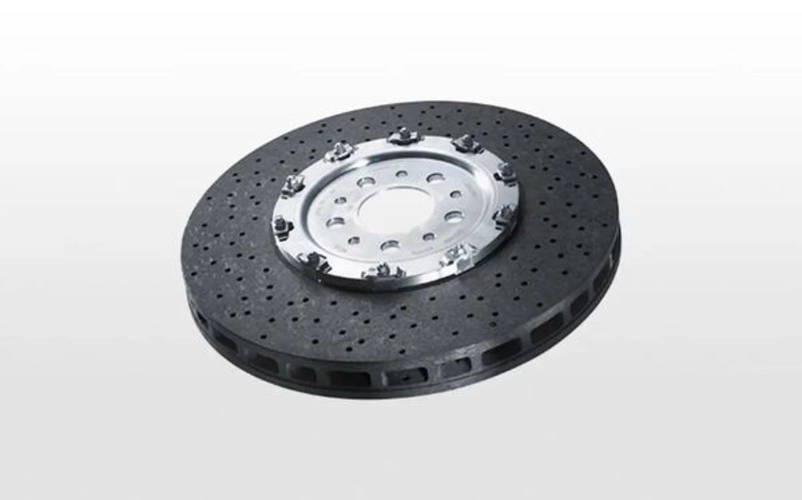

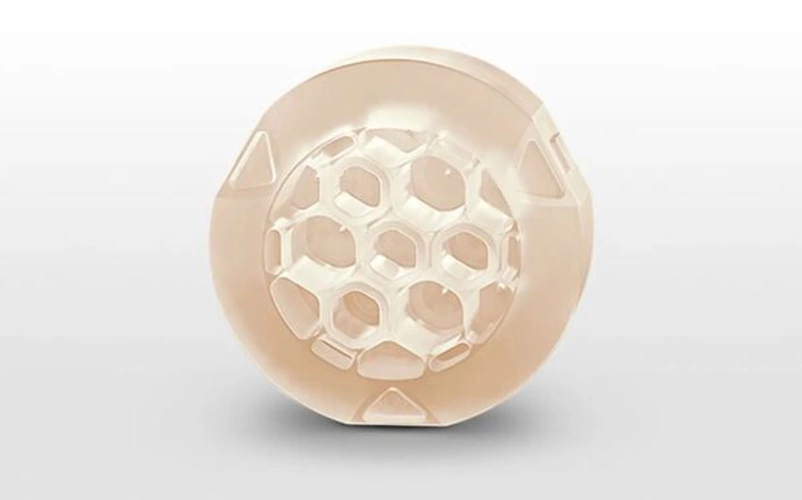

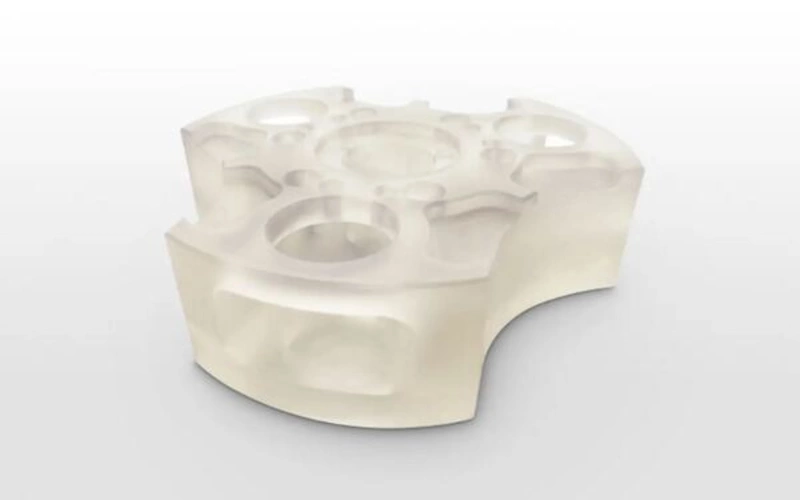

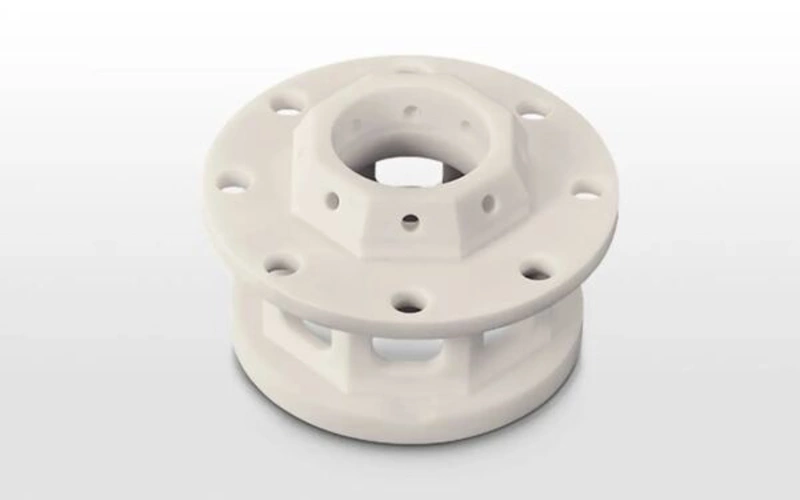

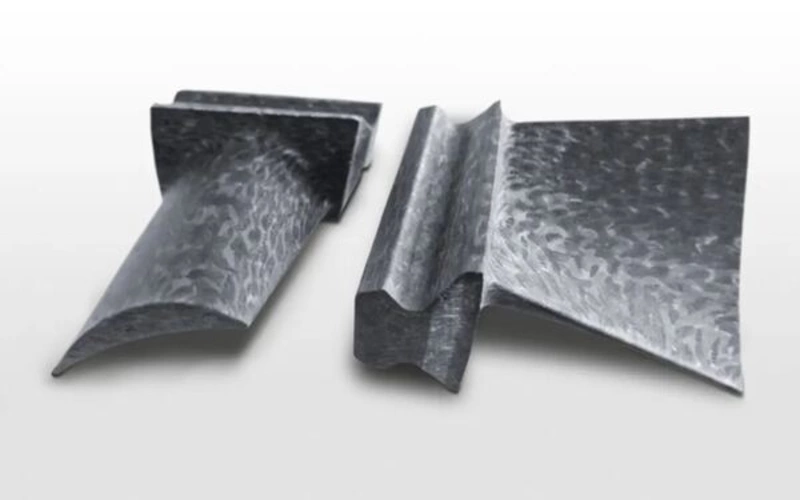

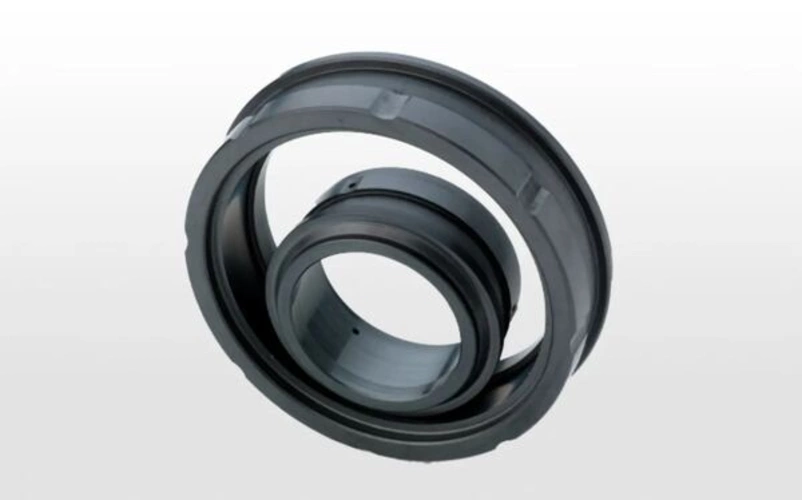

• Processing of high-tech materials such as ceramics, glass, corundum, carbide and composites
• Higher productivity compared to traditional grinding processes thanks to ULTRASONIC

videos

ULTRASONIC 50 - The ideal and flexible entry into the world of ULTRASONIC machining

Ultrasonic drilling, milling and grinding with ULTRASONIC 50 from DMG MORI

ULTRASONIC 50 - The ideal and flexible entry into the world of ULTRASONIC machining

Ultrasonic Machining with ULTRASONIC 50 by DMG MORI

Inside the ULTRASONIC 50

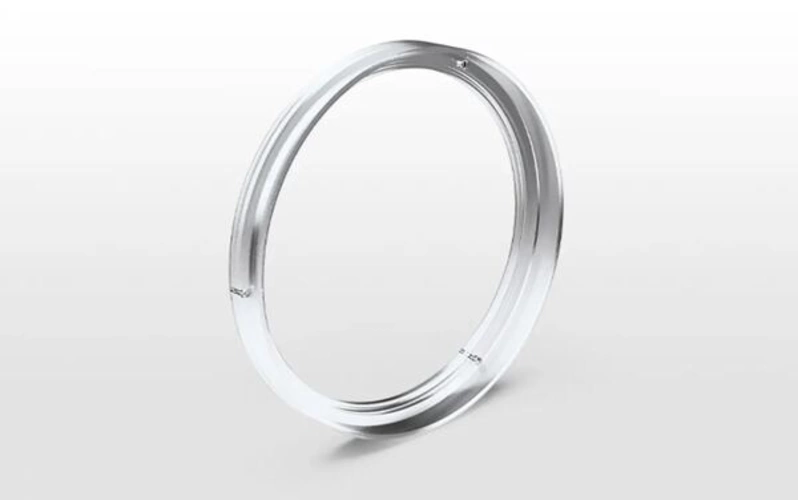

Precision Machining of a Quartzglass Ring on the DMG MORI ULTRASONIC 50
