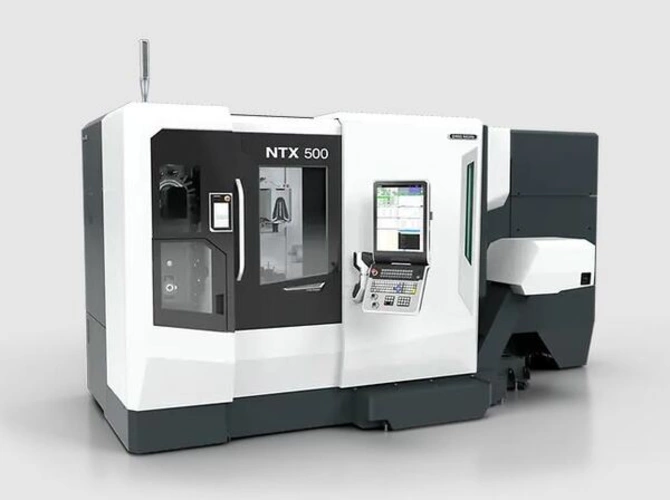

DMG MORI NTX 500
0 EUR
General information
| 07.02.2025 |
| 101272 |
Search criteria
| 380 mm |
| 640 mm |
| 65 mm |
| ja |
| 1 Items |
| nein |
| ja |
|
|
| DMG MORI Aktiengesellschaft |
further specifications
| 375 mm |
| 150 mm |
| 610 mm |
| 100 mm |
| 60 mm |
| 580 mm |
| 16 Items |
| 42000 rpm |
| 114 Items |
| 100 mm |
| 150 mm |
|
| 12000 rpm |
| 3.9 kW |
| 2480 mm |
| 4430 mm |
| 2200 mm |
Contact us
Report ad
Description
By combining technologies from turning centres and machining centres, the NTX 500 offers its customers significant advantages by efficiently integrating processes from high-mix small batch production to series production.
All-rounder for various industrial sectors

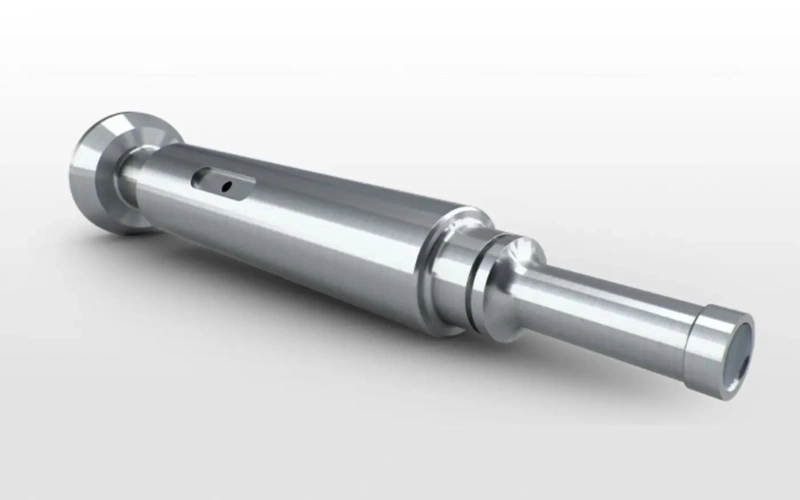

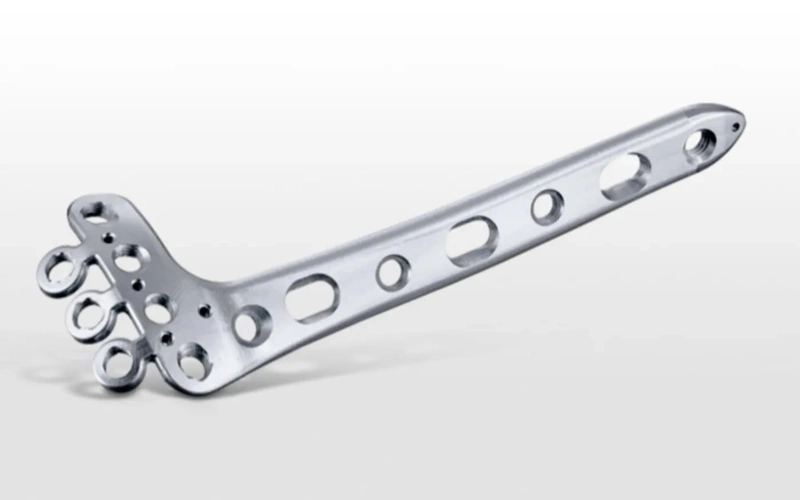

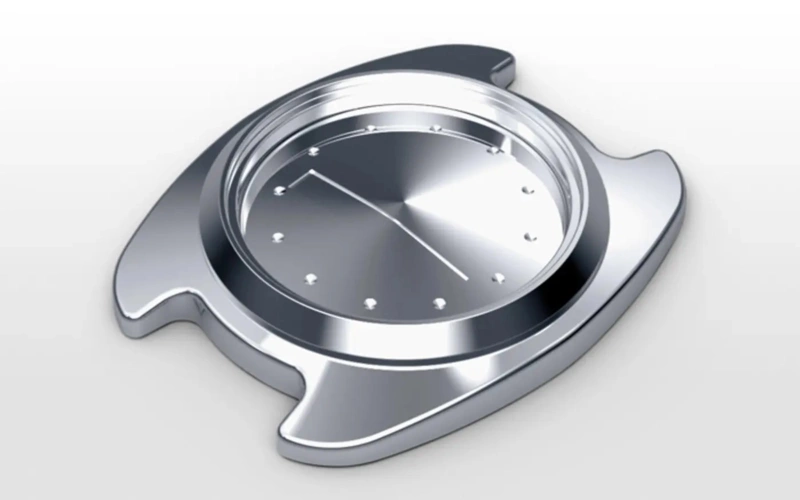

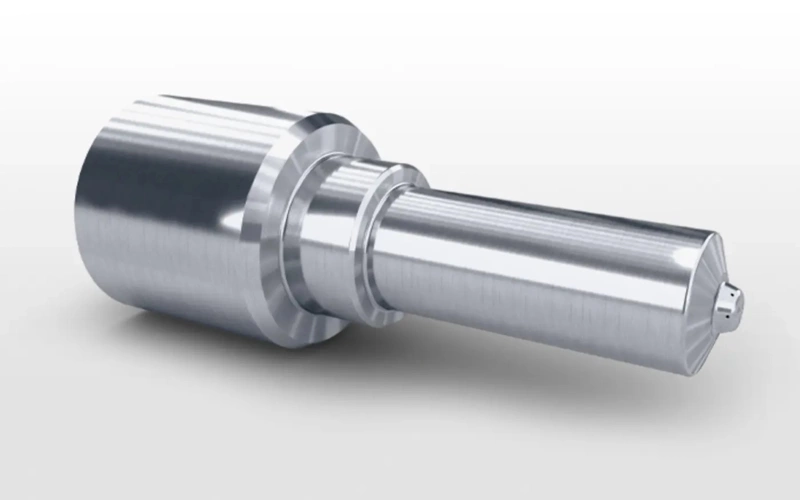

The NTX 500 is a versatile machine that enables the machining of complex-shaped workpieces in the aerospace, medical technology, automotive, tool and mould making and precision equipment industries with high efficiency and accuracy.
- 6-sided complete machining on main and counter spindle with 8,000 rpm
- 4-axis synchronised machining with lower 16-axis BMT 42 / 64 turret at 12,000 rpm
- 60 mm Y-axis for the lower turret
- Workpieces up to ø 350 mm and 580 mm Turning lenght
- Machining of flange parts with a diameter of 350 mm.
- Bar machining up to ø 65 mm
- Workpieces up to ø 90 mm and 580 mm Turning lenght when machining with lower turret
- High-speed turn & mill spindle compactMASTER up to 42,000 rpm (30,000 rpm as standard), incl. 150 mm Y-axis
- 38-position tool magazine
- Capto C4 / HSK-T40 / KM40, optional 76 or 114
Turning Center and Machining Centre: Merging two cutting-edge technologies
The NTX 500 is equipped with the latest machining technologies and combines various machining processes in a compact turning/milling machine that enables both fine machining with high precision and high-speed milling. In addition, the NTX 500 offers 6-sided machining with the spindle on the right-hand side, allowing complete workpieces to be machined on just one machine. The "ERGOline X" user interface uses a touchscreen and keyboard to make complex operations easy to set up. With its maximum power, the NTX 500 is the perfect solution for customers looking to increase efficiency and reduce costs in their production processes.
5-axis simultaneous machining
- Equipped with "compactMASTER 40|250" the high-speed and compact turning-milling spindle from DMG MORI
- Capto C4 turning/milling spindle as standard equipment with max. 30,000 rpm and 42,000 rpm (as optional high-speed specification)

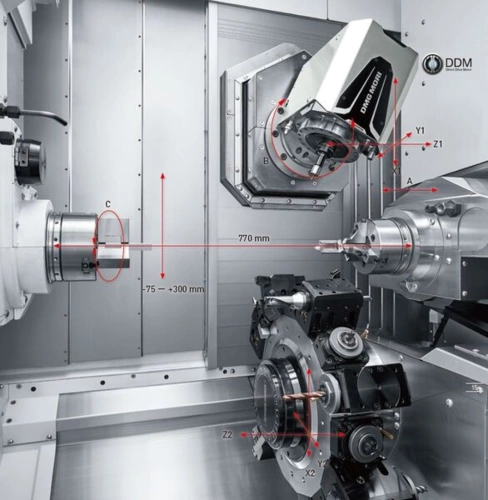

- B-axis with 240° rotation range and max. traverse X-axis 375 mm (-75 mm to +300 mm)
Ease of operation
- Digital tailstock in the tailstock specification
- Touchscreen + keypad for convenient operation
- LCD buttons with changing functions for different operating scenarios High precision
- Control of heat transfer through cooling water circuit
High rigidity
- Robust machine bed and linear guides for maximum rigidity
Peripheral equipment
- Space-saving automation with in-machine robot (IMTR) and bar feed
Energy-saving
- Maximum efficiency thanks to innovative components and intelligent energy management
Solutions for your production
The NTX 500 provides solutions that guarantee maximum machining accuracy, increased productivity through automation, improved chip disposal and short maintenance and set-up times.
