DMG MORI NTX 1000
0 EUR
General information
| 10.02.2025 |
| 101276 |
Search criteria
| 430 mm |
| 800 mm |
| 65 mm |
| ja |
| 1 Items |
| nein |
| ja |
|
|
| DMG MORI Aktiengesellschaft |
further specifications
| 455 mm |
| 210 mm |
| 800 mm |
| 160 mm |
| 730 mm |
| 10 Items |
| 20.000 rpm |
| 114 Items |
| 130 mm |
| 210 mm |
|
| 10.000 rpm |
| 2615 mm |
| 3595 mm |
| 2615 mm |
| 8,1 t |
Contact us
Report ad
Description
An "all-round" machine capable of machining complex-shaped workpieces with high precision and efficiency in the aerospace, medical technology, automotive, toolmaking and precision equipment industries.

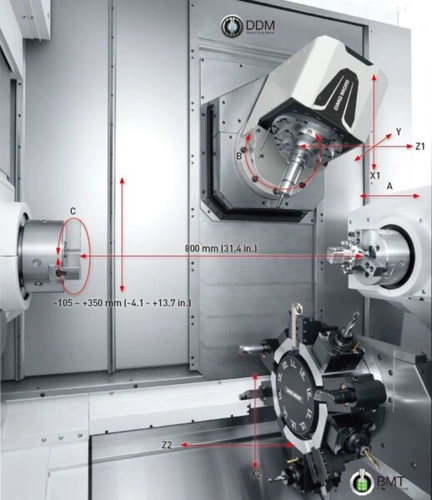

5-axis simultaneous machining
- Direct Drive Motor (DDM) in the B-axis for 5-axis simultaneous machining of complex workpieces
- Rotation range: 240° of the B-axis, rotation speed: 100 rpm, traverse X-axisis of 455 mm
- Capto C5 tool spindle with up to 20,000 rpm as standard (12,000 rpm is optional)
Maximum precision
Thermo-symmetrical headstock cooling structure with coolant circulation
Maximum rigidity
Highly rigid bed and roller guides achieve high rigidity
Peripheral equipment options
Wide range of optional devices for automation, including in-machine robot and workpiece unloader
User friendliness
- Digital centre chuck drive for centre chuck specifications
- Touch panel screen + keyboard for convenient operation
- LCD buttons with changing functions for different operating scenarios
Versatile machine for different areas

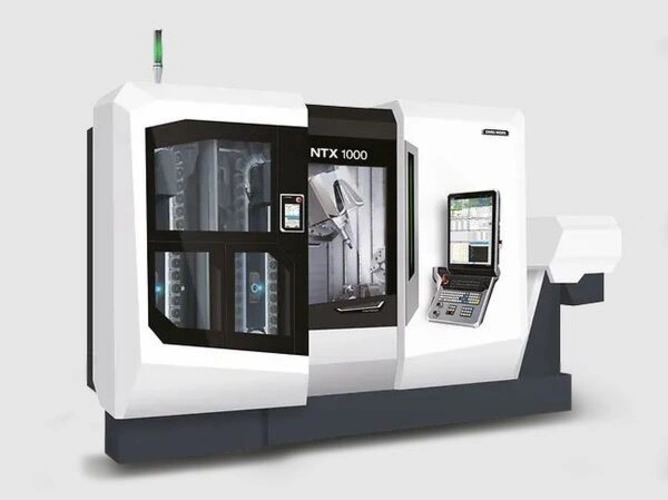

The NTX 1000 3rd generation is an "all-round" machine capable of machining complex shaped workpieces with high precision and efficiency in the aerospace, medical technology, automotive, toolmaking and precision equipment industries.
The outstanding combination of a turning Center and a machining centre enables process integration for various machining processes, from high variant and low volume production to mass production, bringing great benefits to customers.
Integration of two state-of-the-art technologies: Turning centres and machining centres
The NTX 1000 3rd generation, equipped with the latest technologies from DMG MORI, enables process integration with higher precision, superior machining performance and a larger working area, while offering a more compact design than the first generation NTX 1000 model.
The "ERGOline X" user interface utilises a touch panel and keyboard to easily set up complex turning and milling operations.
The NTX 1000 3rd generation offers the highest level of performance and is the ideal solution for customers looking to increase efficiency and reduce costs in their production processes.
