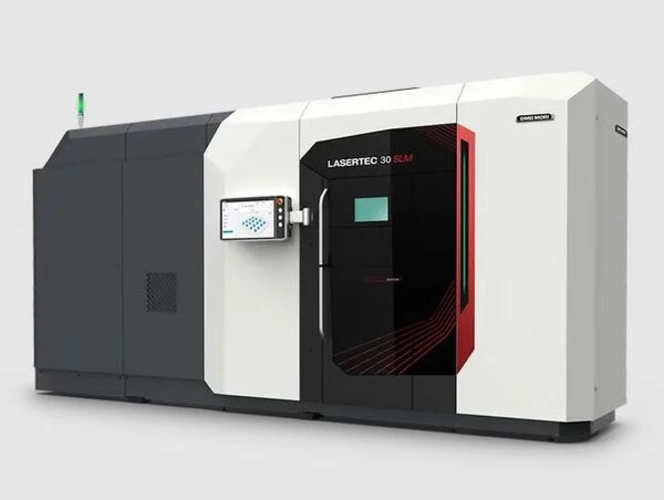

DMG MORI LASERTEC 30 SLM 3rd generation

LASERTEC 30 SLM 3rd generation

Highlights

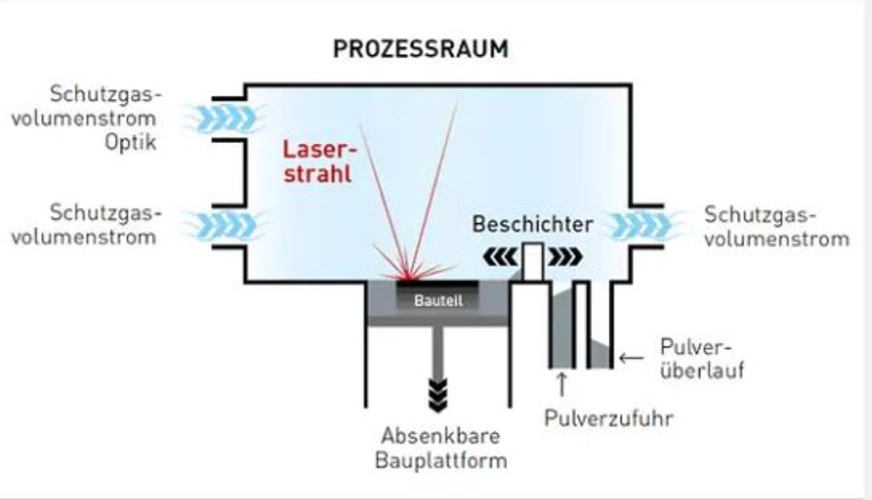

Additive manufacturing using selective laser melting (SLM) in a powder bed

• Highly complex components with integrated functions
• Internal, contour-close cooling channels
• Weight reduction through topology optimization, lattice and honeycomb structures
• Simultaneous development of different designs
• Shortened product development times through immediately available prototypes made from series production materials

100% machine tool design for SLM technology

• Build volume: 325 x 325 x 400 mm
• Single, dual, or quad lasering with high-precision optical modules and complete overlap of the scan fields
• Interchangeable build container for reduced job-to-job times
• Bi-directional coater with collision protection system
• CELOS X with easyAM—detailed work instructions for simplified machine operation and maintenance

New benchmark for robustness and repeatability

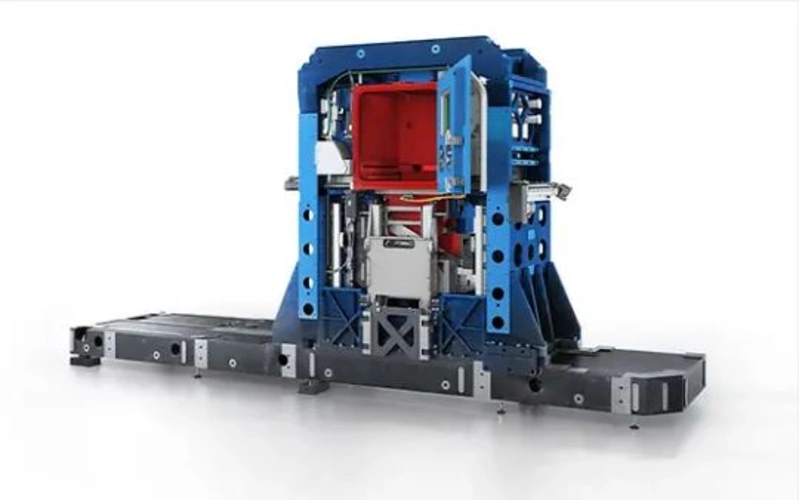

• Thermosymmetrical cast frame for maximum rigidity
• Floating process chamber for minimal thermal distortion
• Active temperature compensation for positioning the z-axis

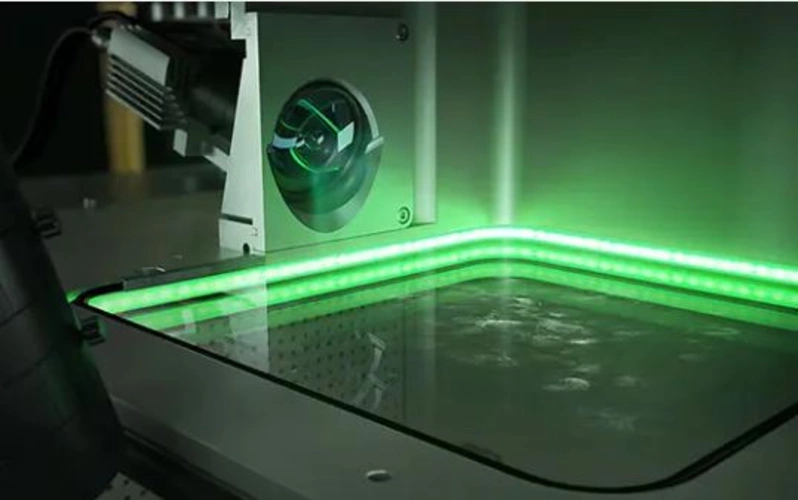

• Protective glass monitoring for detection of smoke residues and damage
• Powder bed monitoring for defect detection

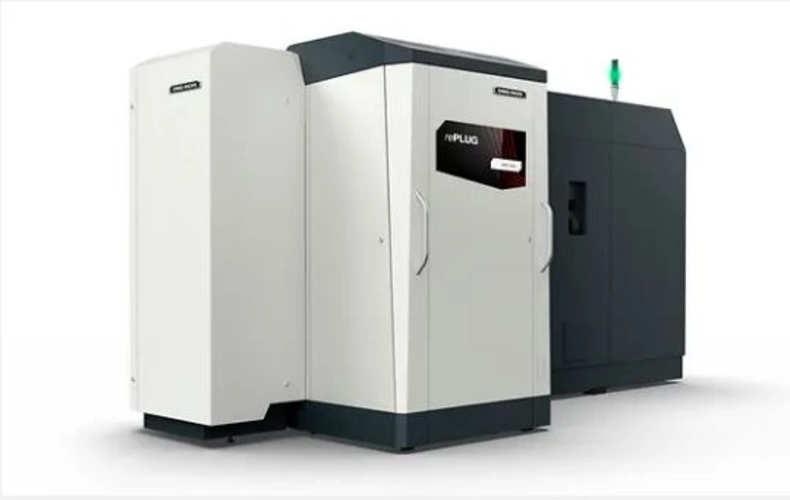

rePLUG – The powder module for fast material changes

• Automated powder handling: Integrated powder recycling for maximum efficiency and maximum occupational safety thanks to a closed material cycle
• One material per rePLUG – Unlimited expansion of the material range thanks to a modular exchange system and contamination-free material changes
• Integrated sieving and powder drying function under protective gas atmosphere
• Industrialized powder filling and precise weight detection in the main tank
• Optional: rePLUG FLEX – The additional powder module, specially developed for material and process parameter development on the series production line.

Videos

LASERTEC 30 SLM US – High-speed, high-precision metal 3D printing

Driving Innovation in Aviation & Space with Additive Manufacturing

Link to machine tool: LASERTEC 30 SLM 3rd generation
