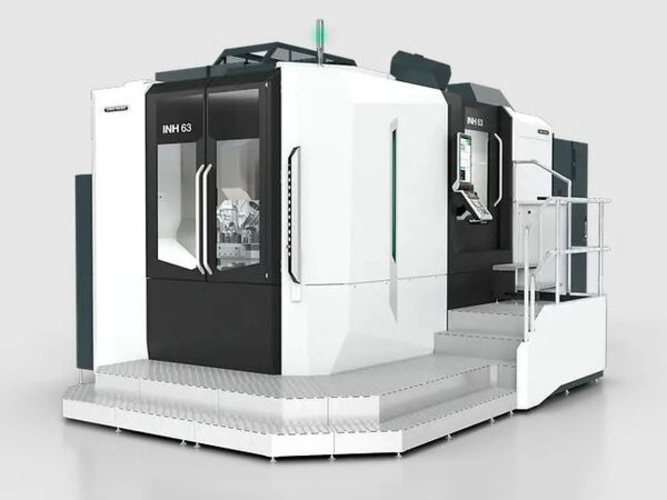

DMG MORI INH 63
- Erstellungsdatum:
General information
| 13.02.2025 |
| 101283 |
Search criteria
| 5 Items |
| 1050 mm |
| 1100 mm |
| 1050 mm |
| 1000 kg |
| 1070 mm |
| 1000 mm |
|
|
| 63 Piece |
|
| DMG MORI Aktiengesellschaft |
further specifications
| 65000-65000-60000 m/min |
| 4,4 s |
| 320 mm |
| 700 mm |
| 25 kg |
| 6755 mm |
| 4474 mm |
| 3950 mm |
| 34,5 t |
Contact us
Report ad
Description
Highlights
- X / Y / Z travel distances: 1,050 / 1,100 / 1,050 mm, 630 × 630 mm pallet size
- Workpieces: 5-axis up to ø 1,070 × 1,000 mm / 1,000 kg (ø 1,070 × 1,300 mm / 1,500 kg possible for machining without 5th axis / swivel axis)
36-month warranty with unlimited spindle hours
- powerMASTER spindle with 12,000 rpm, 808 Nm, and 85 kW (10%) as standard. 549 Nm (high speed) and 1,414 Nm (high torque) optionally available.

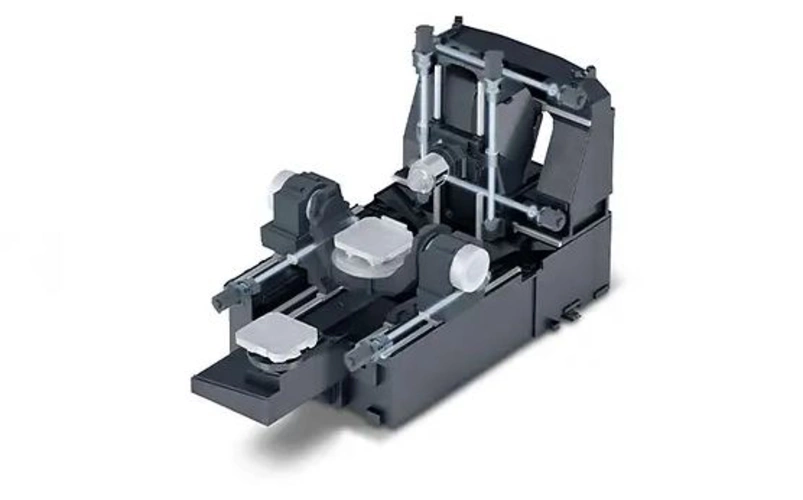

High-strength and dynamic design
- Twin ball screws for X, Y, Z, and stepped column

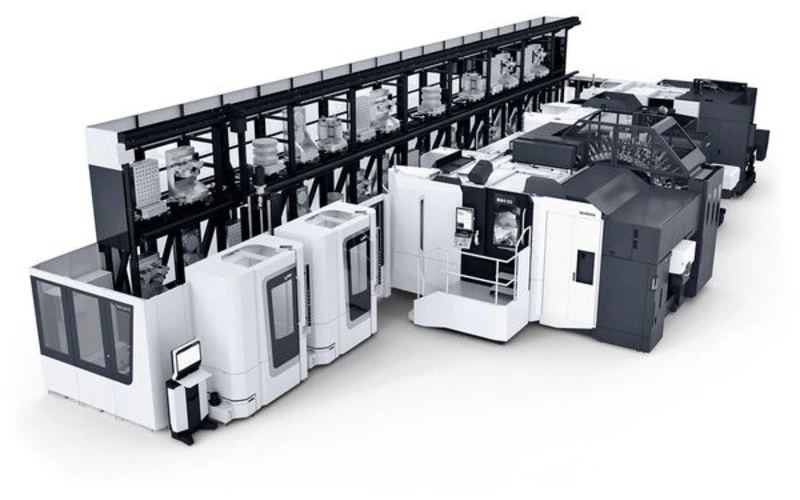

LPP pallet handling, highly productive pallet storage solution
- Up to 99 pallets
- Operation via machine HMI or via the LPS 4 controller
- LPS 4 master computer as standard
- Optional tool management using MCC-TMS
Workpiece handling
- MATRIS robot system, no programming knowledge required

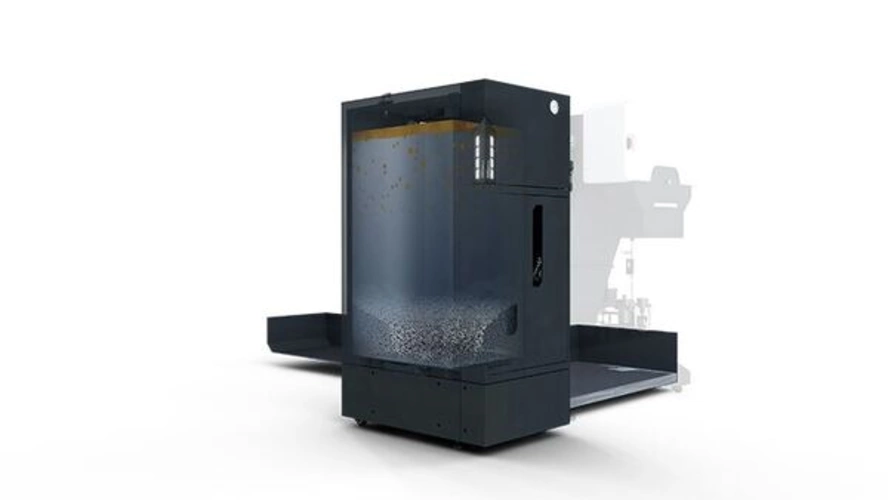

zero-sludgeCOOLANT pro (standard)
- For low-maintenance operation over long periods
- Use of an innovative vertical coolant tank with large capacity
- Perfect separation of floating and sinking dirt particles from the coolant
Work area flushing (standard)

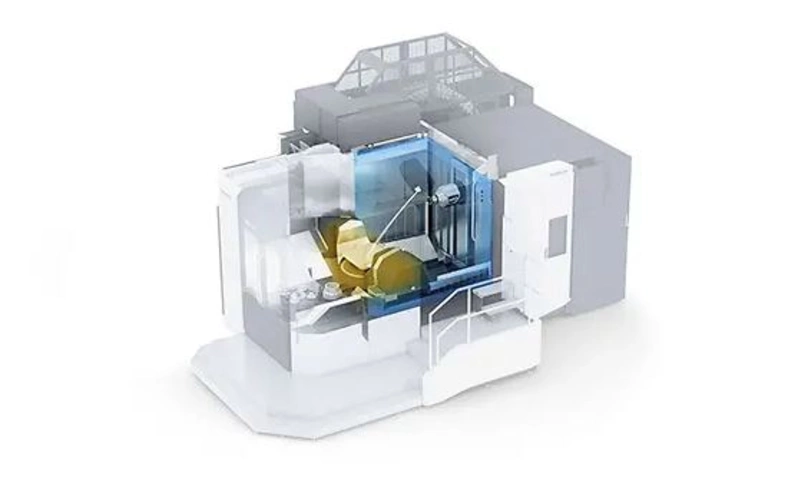

- Hybrid cleaning method to prevent chip accumulation
- Fixed outlets on the ceiling, sides, and spindle nose
- Controlled ceiling nozzles direct the coolant specifically to areas where chips can accumulate
- New: 2 frequency-controlled, highly efficient pumps with control valves for high and low pressure ranges
