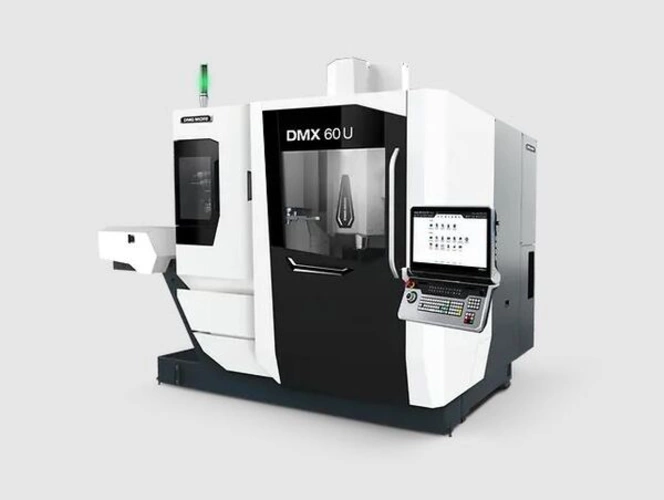

DMG MORI DMX 60 U
General information
| 10.02.2025 |
| 101275 |
Search criteria
| 5 Piece |
| 600 mm |
| 600 mm |
| 510 mm |
| 300 kg |
| 630 mm |
| 450 mm |
|
|
| 30 Piece |
|
| DMG MORI Aktiengesellschaft |
further specifications
| 42-42-42 m/min |
| 130 mm |
| 300 mm |
| 8 kg |
|
|
| 2200 mm |
| 2700 mm |
| 2900 mm |
| 7,6 t |
Contact us
Report ad
Description
3+2 technology, X-Y-Z-axis traverse 600-600-510 mm, tool stock up to 120, main spindle Speed max. \[rpm\] 12,000, 15,000 or 20,000
Production type: One-off production, small series (< 50), medium series (50 - 1000), large series (1000 - 100,000)

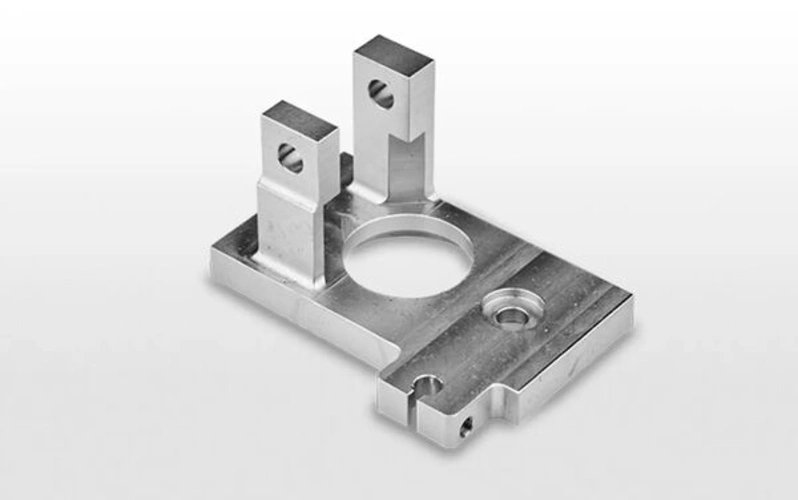

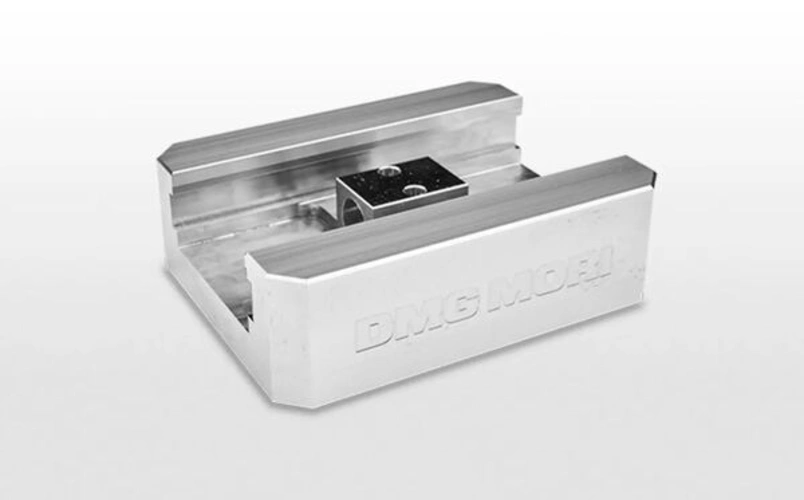

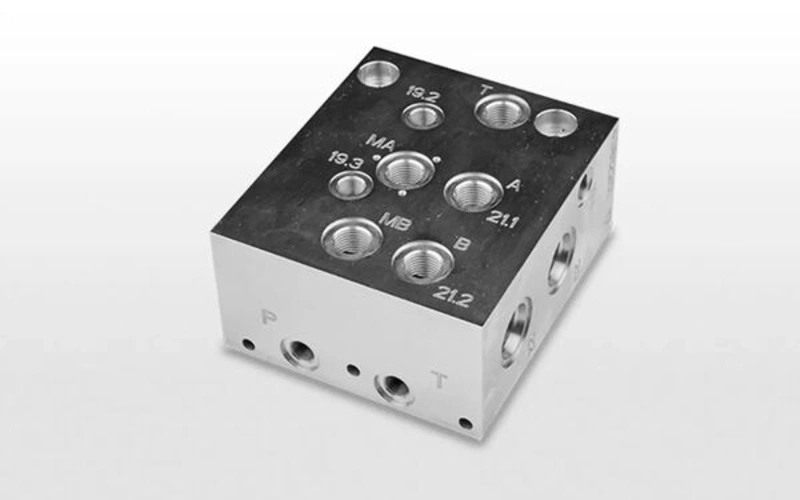

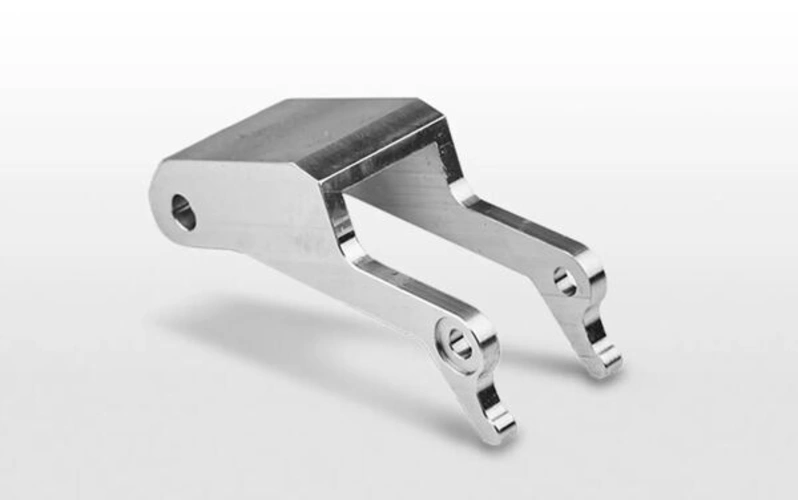

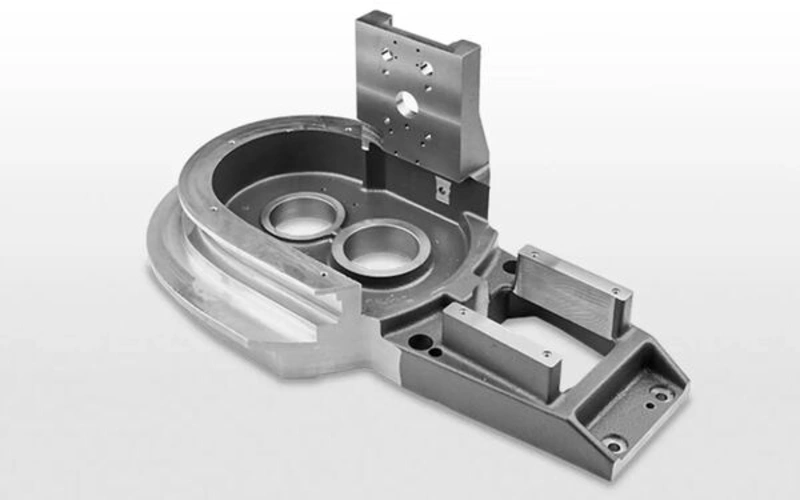

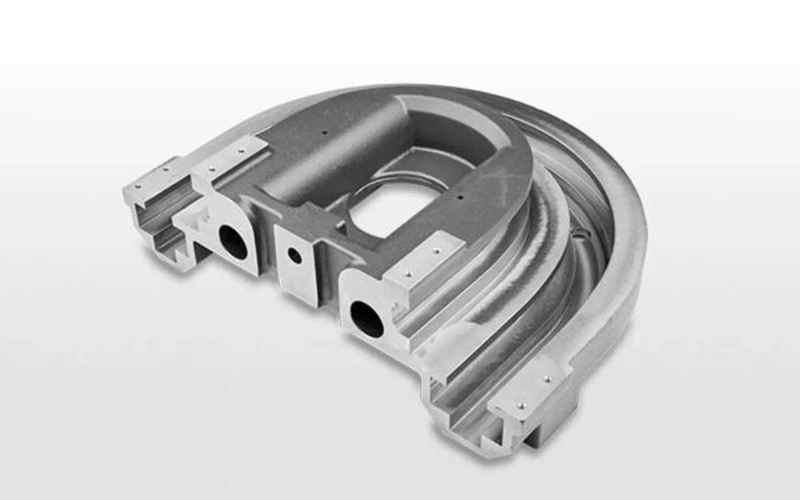

Materials: aluminium, steel, titanium
Outstanding rigidity

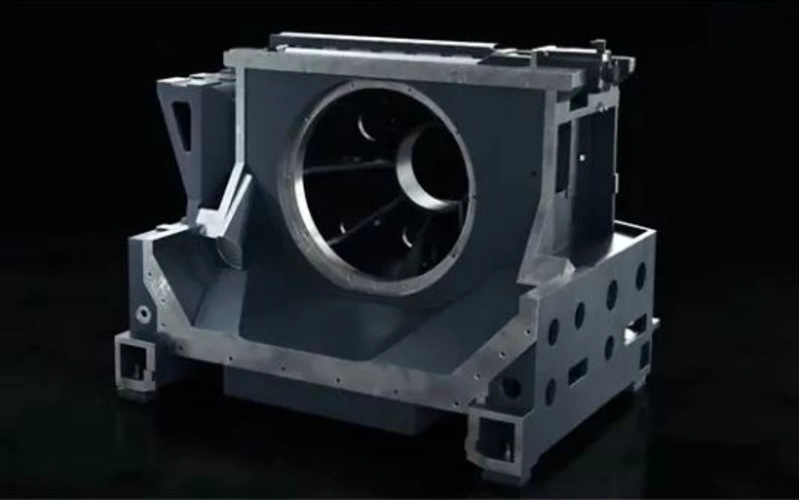

- Unique design based on a monolithic machine bed and solid cast parts
- Up to 50 % higher static rigidity compared to the previous model
- Wide roller guides in all axes
Swivelling rotary table for 5-sided machining of complex parts in a single clamping operation
- Handling of workpieces weighing up to 300 kg (+50 % more than the previous model)
- Excellent accessibility for the operator and also for the crane
- 7 T-slots for maximum flexibility and easy adaptation of clamping fixtures
Highest power

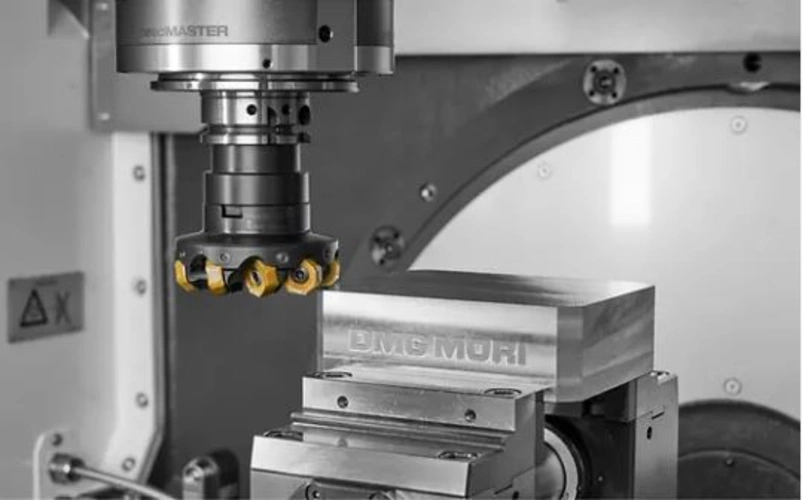

- Full spindle range up to 20,000 rpm or high-torque version with 200 Nm
- Rapid linear traverses 42 m/min in all linear axes (+40 % faster than the previous model)

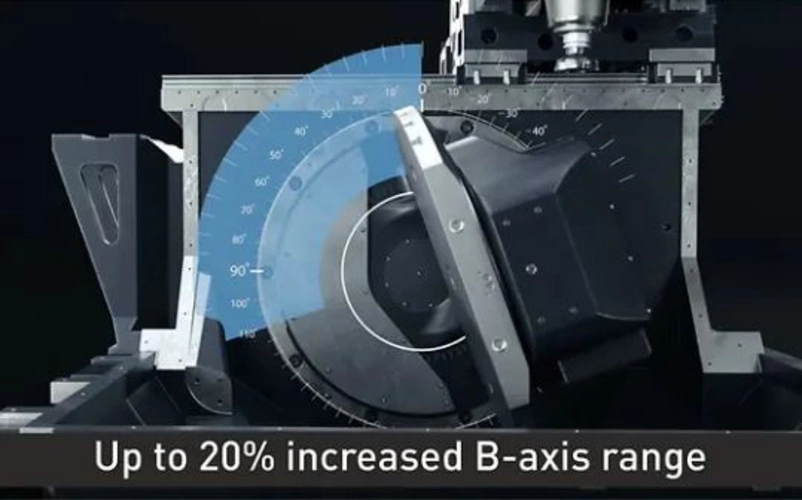

- Over 60 % higher table speed in B-axis and C-axis
Precision and quality
- Maximum precision and process stability thanks to direct measuring system
- Advanced multi-sensor heat compensation
- Linear scales in all linear axes for maximum positioning accuracy
- Direct drive in X and Y axes
- Improved accuracy of circular interpolation (double ballbar in all planes < 6 µm)
The DMX U models are suitable for a wide range of industries where high-performance machining of multi-sided and precise parts is required. As a representative of 3+2 technology, the DMX U line is a natural step in the evolution between 3-axis milling and complete 5-axis simultaneous machining.
Thanks to process integration, the machines' capabilities have been enhanced even further. This makes the DMX U a truly valuable asset in modern and competitive production environments, including tool and mould making, medical technology, automotive, marine and aerospace.
Video
DMX 60 U and DMX 80 U - Your Entrance into the 5-Axis CNC Machining World
