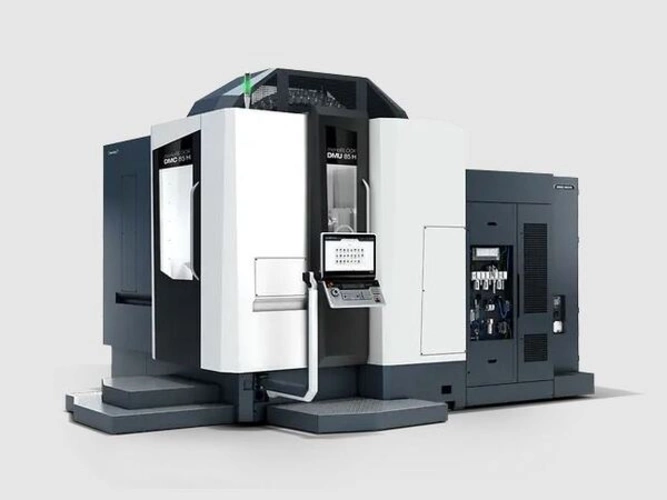

DMG MORI DMU 85 H (FD) monoBLOCK
0 EUR
- Erstellungsdatum:
General information
| 06.02.2025 |
| 101270 |
Search criteria
| 5 Items |
| 850 mm |
| 1150 mm |
| 900 mm |
| 870 mm |
| 1040 mm |
| 1000 kg |
|
|
|
| DMG MORI Aktiengesellschaft |
further specifications
| 7 / 6,5 / 7 m/s2 |
| 60-60-60 m/min |
| 850 mm |
| 30 rpm |
| 3,6 s |
| 60 Items |
| 350 mm |
| 8 kg |
| 4610 mm |
| 2772 mm |
| 3357 mm |
| 16,9 t |
Contact us
Report ad
Description
5-axis simultaneous machining of workpieces up to ø 1,040 x 870 mm and 1000 kg on 17.5 m²
Production type: One-off production, small series (< 50), medium series (50 - 1000), large series (1000 - 100,000)
Materials: aluminium, steel, titanium
DMU H monoBLOCK series

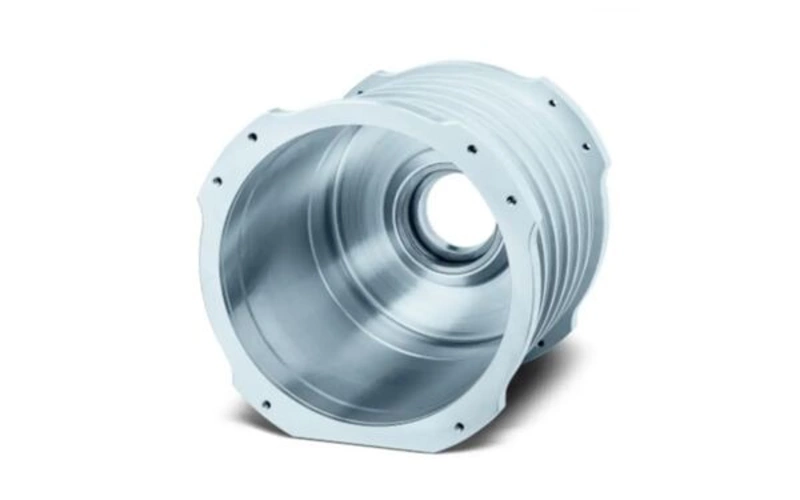

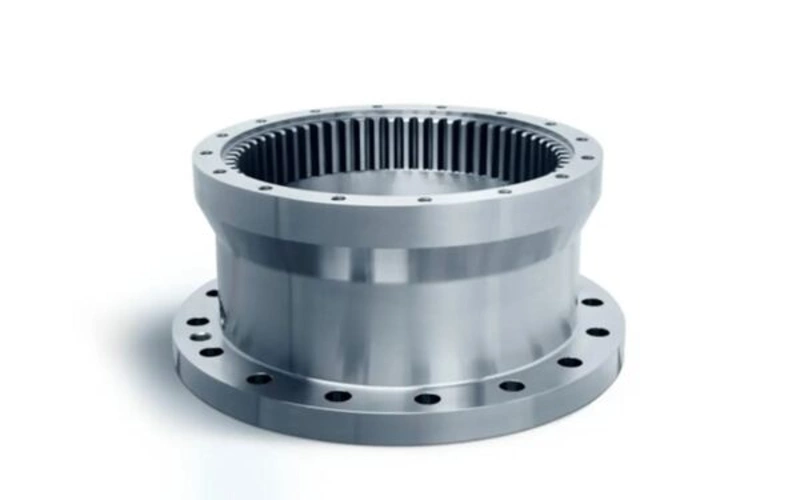

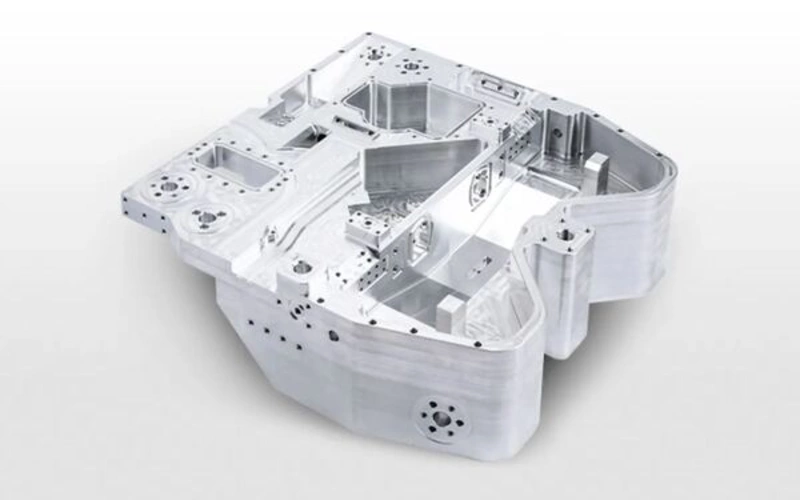

The range of applications extends from individual one-off pieces from tool and mould making, to small series for mechanical engineering and the aerospace sector, to the efficient machining of large series components for the upcoming electrification of the powertrain.
Thanks to its unique horizontal design, the H monoBLOCK combines the flexibility of a universal machining centre with the productivity and process reliability of a horizontal machining centre.
The ingenious work area and flexible automation solutions ensure the widest possible range of parts with maximum machine utilisation and make a significant contribution to reducing production costs.
Ergonomic
- Ingenious work area for machining clamping towers and 5-axis components as well as deep hole drilling on one machine
- Ergonomic cabin for good accessibility to the work area and easy set-up of components
- Small footprint (17.5 m²) for high productivity per unit area and narrow design (< 3.5 m) for easy linking
Precise
- One-piece, inherently rigid cast iron machine bed with 3-point support for maximum rigidity (also available with HSK-A100) and maximum accuracy
- Thermo-symmetrical design with extensive cooling measures for maximum long-term accuracy (up to 6 µm)
- Maximum process reliability thanks to horizontal machining for ideal chip and heat removal
Versatile
- 5-axis capability for maximum flexibility thanks to swivelling rotary table mounted on both sides for components weighing up to 1,000 kg
- Ingenious work area for machining clamping towers and 5-axis components as well as deep hole drilling on one machine
- Milling-turning variant for complete machining at up to 800 rpm
- Extensive selection of flexible automation solutions thanks to standardised interface
Rigid monoBLOCK concept
- monoBLOCK - maximum stability from a single mould
- Also available with HSK-A100 holder for tools up to 280 mm diameter and 30 kg
- Maximum availability thanks to proven large-scale production technology and optimum maintenance access
- Proven division of the rotary and linear axes for easy-to-understand 5-axis kinematics.
- Clamping of the swivelling rotary table as standard
