DMG MORI DMU 600 P
General information
| 13.02.2025 |
| 101280 |
Search criteria
| 5 Piece |
| 6000 mm |
| 4800 mm |
| 1500 mm |
| 40000 kg |
| 3000 mm |
| 3000 mm |
|
|
| 60 Piece |
|
| DMG MORI Aktiengesellschaft |
further specifications
| 30 m/min |
| 10 s |
| 250 mm |
| 650 mm |
| 15 kg |
|
|
| 16623 mm |
| 8614 mm |
| 6591 mm |
Contact us
Report ad
Description
Large components up to 40 tonnes, travels up to 18 m and mobile cross beam, gantry design for maximum precision and dynamics up to 3 m/s2
Chain magazine or wheel magazine with tool supply of up to 180 or 303 tools.
optional:
- Interchangeable milling head as NC-controlled B-axis, swiveling range (0 = vert. / 180 = horiz.) ±180 degrees, Rapid linear traverses and feed rate
- Interchangeable milling head as NC-controlled A-axis, swiveling range (0 = vert. / -90 = horiz.) -120 / +135 degrees

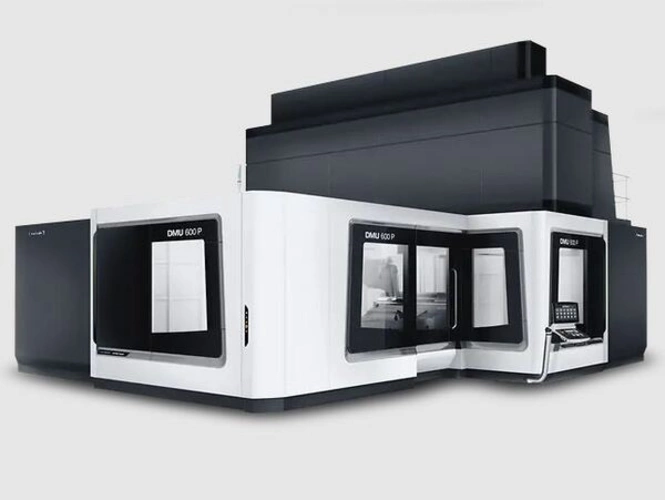

XXL milling machine
The 5-axis machine DMU 600 P in a highly stable portal design enables maximum precision with maximum dynamics. Large traverse paths and high table loads of up to 150 tonnes provide the basis for this. The design with double table enables set-up during machining for maximum productivity.
The DMU 600 P complements the universal machines in the 210, 270 and 340 class to form a successful series for machining large parts.
Maximum rigidity and high temperature stability
- Portal fixed on foundation and bolted to machine bed
- Machine is based on the FEM + modal analysis optimised machine concept in portal design
- Large masses with high temperature stability

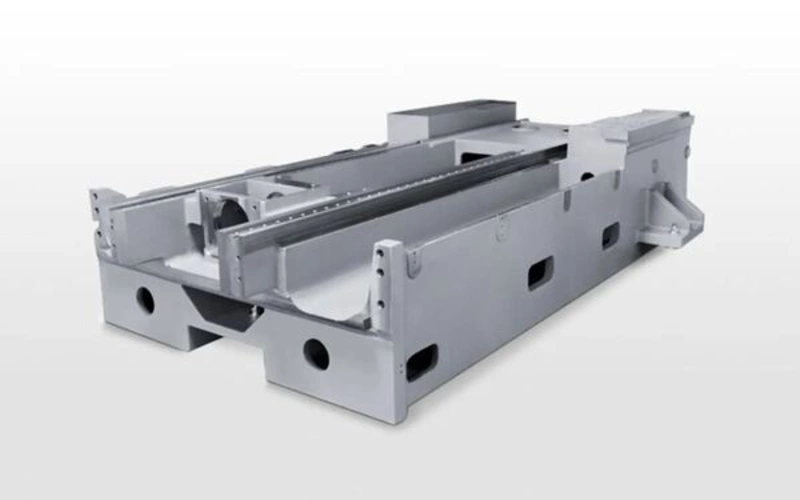

- Machine bed, columns and cross beams made of EN-GJS-600-3 (GGG60), with optimum damping properties

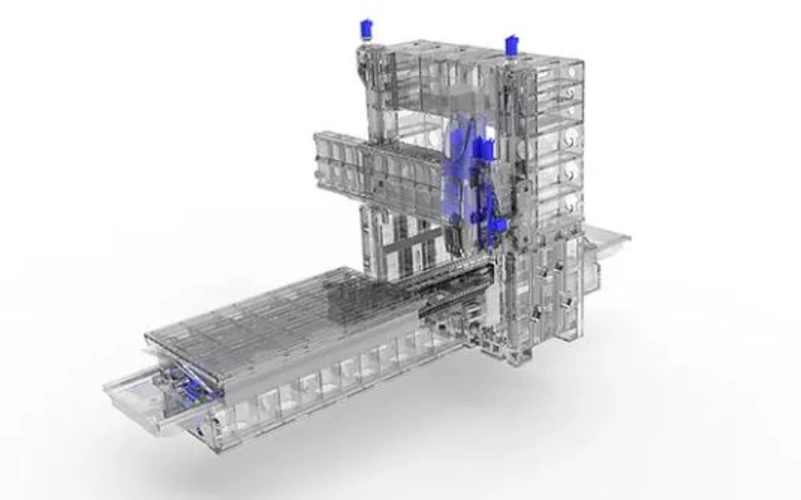

All relevant heat sources are liquid-cooled
- All drive motors
- Additional cooling of the X-axis drive unit
- Changing heads, swivel axes incl. main drive (structural cooling, drives and components)
- Z-axis: Ball screw drive and bearings
- Guideway of the ram
- Cooling circuit adaptable to ambient conditions
- Modern machine housing to insulate against external temperature influences
- Structural cooling of the ram
