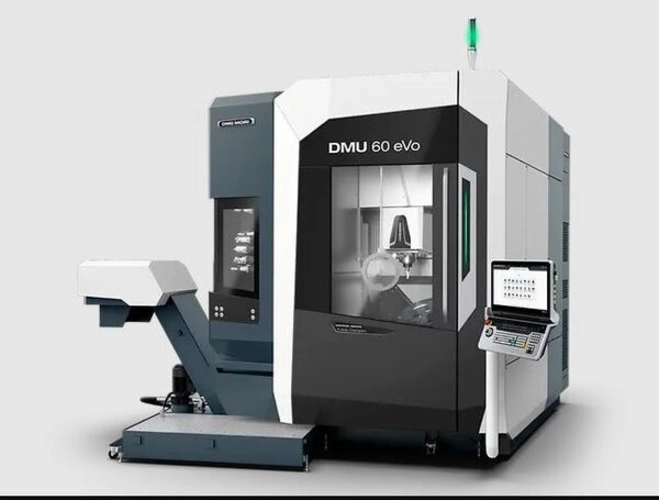

DMG MORI DMU 60 eVo 2nd generation

Bookmark Write a note

Print page

General information

Creation date 06.02.2025
Ad-ID 101267

Number of NC-axis 5 Piece
Traverse X-axis 750 mm
Traverse Y-axis 550 mm
Traverse Z-axis 550 mm
Workpiece weight max. 500 kg
Workpiece width max. 700 mm
Workpiece height max. 550 mm
Main spindle speed max. 15000 rpm 20000 rpm 24000 rpm 28000 rpm 30000 rpm 40000 rpm
Tool interface [type] HSK-A63 SK40
Tool stock min. (standard) [items] 30 Piece
Control (manufacturer) Heidenhain TNC 640 Siemens Sinumerik One
Machine manufacturer (list selection) DMG MORI EMEA Holding GmbH

First name *

Surname *

E-mail address *

Your message *

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Notes on privacy policy

Reason *

E-mail address *

Your message *

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Notes on privacy policy

Highlights

Further development of the proven DMU eVo concept

28% greater stability and accuracy
40% more working space compared to its predecessor

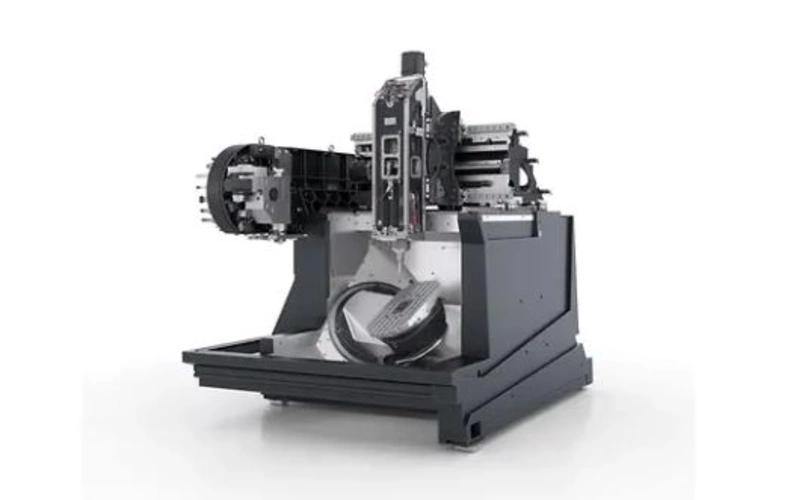

One-piece hybrid mineral casting bed with 25% wider setup and 3 guides in the Y-axis

Precise

4 µm circle test (DBB)
80% higher rigidity of the Z-axis thanks to reinforced linear guides with 45 mm and optimized casting design

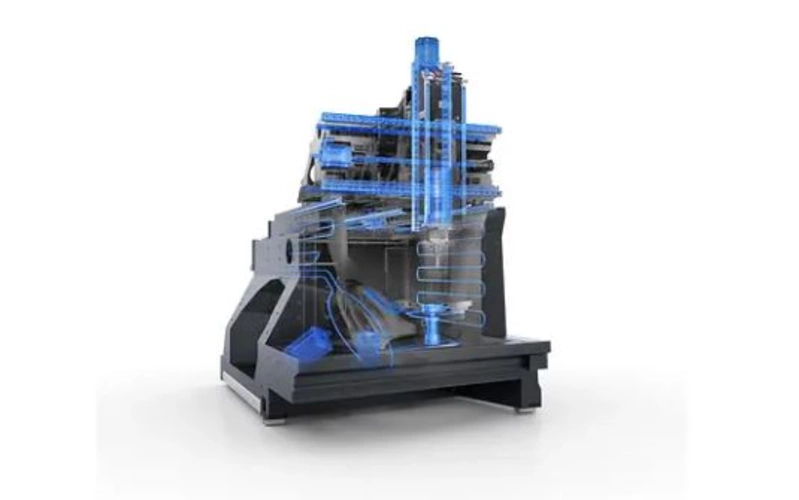

High long-term thermal stability thanks to fully temperature-controlled, decoupled machine base

Productive

speedMASTER spindles up to 30,000 rpm or 200 Nm, 20,000 rpm with 130 Nm as standard
High dynamics in the standard version with 50 m/min and maximum dynamics in the linear version with up to 80 m/min
Shortest chip-to-chip time of only 4.5 seconds thanks to new, simultaneously opening tool changer flap

Universal

Up to 300 tools with setup during machining time
Optimal chip flow thanks to complete stainless steel cladding and 60% larger opening to the chip conveyor
Ready for automation – flexible preparation makes subsequent automation a breeze
Universal automation table top with 35 mm additional mounting height in the Z direction
Footprint of only 9 m² – regardless of whether 30, 60, or 120 tools

Videos

DMU 60 eVo 2nd generation: the reVolution of your shop floor
