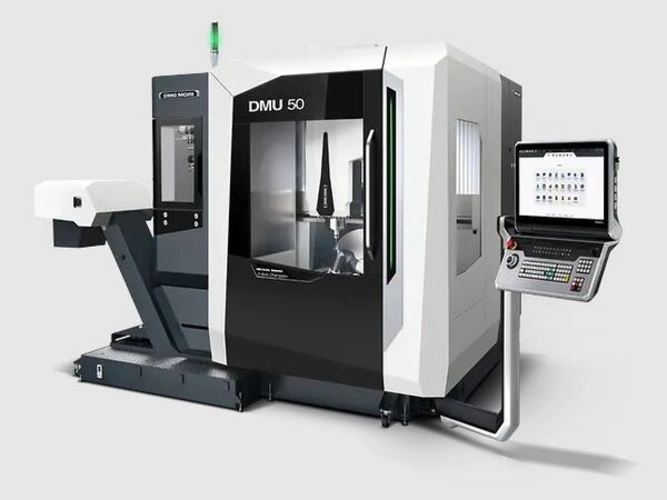

DMG MORI DMU 50 3rd gen.
- Erstellungsdatum:
General information
| 06.02.2025 |
| 101269 |
Search criteria
| 5 Piece |
| 650 mm |
| 520 mm |
| 475 mm |
| 300 kg |
| 440 mm |
| 500 mm |
|
|
| 30 Piece |
|
| DMG MORI Aktiengesellschaft |
further specifications
| 5 m/s2 |
| 42-42-42 m/min |
| 130 mm |
| 300 mm |
| 8 kg |
| 2373 mm |
| 2735 mm |
| 2695 mm |
| 7,48 t |
Contact us
Report ad
Description
5-axis machining centre, clamping surface of the swivel rotary table ø 630 × 500 mm, tool magazine storage capacity max. 120, footprint < 6.5 m²
For every requirement
- Thanks to their universal character, the machines in the DMU series offer the solution for 5-axis simultaneous machining in a wide range of industries
- Maximum flexibility in terms of equipment - the optimum machine for every machining requirement
- For more than 25 years, the DMU series has stood for maximum precision and quality in the field of 5-axis simultaneous machining
5-axis machining with up to 20,000 rpm
- speedMASTER 15,000 rpm with 21kW and 111Nm as standard
- speedMASTER 15,000 rpm with 46kW and 200Nm optionally available
- speedMASTER 20,000 rpm with 35kW and 130Nm optionally available
Swivelling rotary table for 5-axis simultaneous machining
- Loading weight up to 300 kg
- Swivelling range of the B-axis -35°/+ 110° for maximum flexibility
- Cooled table bearings for maximum precision
Tool magazine with 30 places as standard
- Tools can be set up from the front during machining
- Good visibility and accessibility
- 60 or 120 places optionally available
Accuracy
- Holistic cooling concept for maximum long-term precision
- One-piece machine bed
- Directly driven ball screw drives
- Direct position measuring systems in all axes
videos
DMU 50 3rd. Generation - 5-axis machining with speedMASTER® as standard
DMU 50 3rd. Generation in the new Stealth Design by DMG MORI
