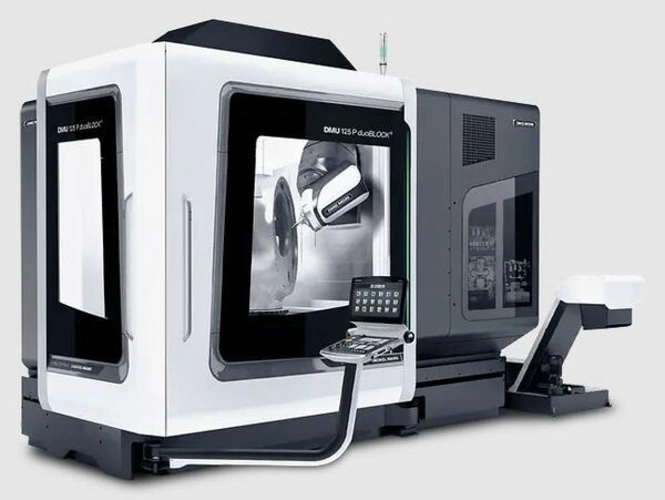

DMG MORI DMU 125 P (FD) duoBLOCK
0 EUR
General information
| 06.02.2025 |
| 101271 |
Search criteria
| 5 Items |
| 1250 mm |
| 1250 mm |
| 1000 mm |
| 1600 mm |
| 1250 mm |
| 2600 kg |
|
|
|
| DMG MORI Aktiengesellschaft |
further specifications
| 6 / 5 / 6 m/s2 |
| 60-60-60 m/min |
| 1250 mm |
| 500 rpm |
| 40 Items |
| 280 mm |
| 650 mm |
| 30 kg |
|
|
| 4964 mm |
| 3578 mm |
| 3293 mm |
| 27 t |
Contact us
Report ad
Description
5-axis CNC machining centre for power milling, power drilling and thread cutting, magazine capacity max. 603, traverse X-axis 1250-1250-1000 mm, workpiece weight up to 2800 kg
Type of production
- One-off production
- Small series (< 50)
Workpiece materials
- aluminium
- steel
- titanium
The 5-axis machines in the highly stable duoBLOCK design with maximum precision, performance and efficiency enable the highest cutting performance and maximum component accuracy with high dynamics. From materials that are difficult to machine, such as in the aerospace industry, to the highest demands on surface quality, such as in tool and mould making, the 4th generation duoBLOCK machines offer the best conditions.
Thanks to their extensive modular system, there are countless configuration options. In addition to three milling head variants, magazine expansion stages with up to 453 tools are available. And the table technology also leaves nothing to be desired with milling, turning or palletised variants.

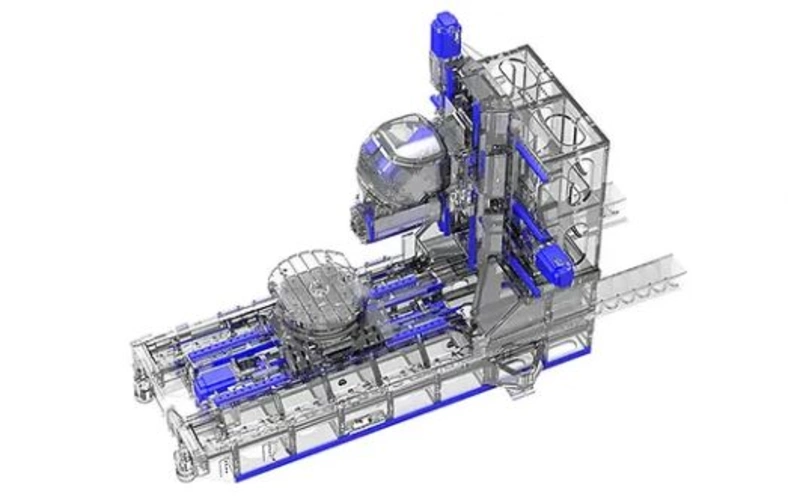

Extensive cooling measures and maximum rigidity of the duoBLOCK concept are the basis for the highest possible demands on accuracy and cutting performance.
Complete machining
- Milling and turning in a single set-up with DirectDrive Table and speeds of up to 500 rpm
- Best surface results through technology integration Grinding
Precision
- With precision package complete
Feed drive cooled - Extensive cooling measures
- Significantly improved temperature response
- SGS: Spindle Growth Sensor
- μPrecision - volumetric accuracy of < 15 μm
Performance
- 5X-torqueMASTER with 1,800 Nm and 52 kW
- Up to 50 % higher cutting performance thanks to heavy-duty cutting package
- Wide linear guides and large drive systems
Efficiency
- Low space requirement, extremely compact wheel magazine with shortest set-up time of max. 5.6 s with 453 tool positions
- Optimum ease of maintenance and optimum ergonomics thanks to unrestricted accessibility
- High machine availability of 96
Videos
The duoBLOCK® series from DMG MORI - The benchmark across all industries
