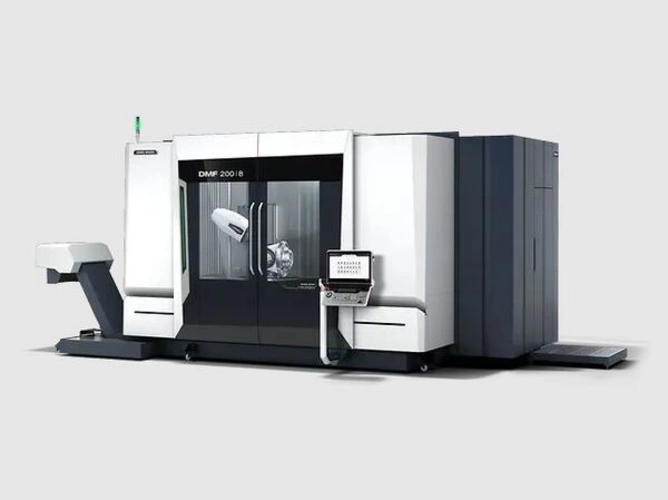

DMG MORI DMF 200|8

Erstellungsdatum:

Bookmark Write a note

Print page

General information

Creation date 13.02.2025
Ad-ID 101284

Search criteria

Number of NC-axis 5 Piece
Traverse X-axis 2000 mm
Traverse Y-axis 800 mm
Traverse Z-axis 850 mm
Workpiece weight max. 2000 kg
Workpiece width max. 850 mm
Workpiece height max 900 mm
Main spindle speed max. 15000 rpm
Tool interface [type] SK40
Tool stock min. (standard) [items] 40 Piece
Control (manufacturer) Heidenhain TNC 640 Siemens S840D sl Operate
Machine manufacturer (list selection) DMG MORI Aktiengesellschaft

further specifications

X-Y-Z-axis rapid linear traverse max. 80-80-80 m/min
Chip-to-chip time 7,5 s
Tool diameter max. 130 mm
Tool length max. 400 mm
Tool weight max. 8 kg
Installation length 6619 mm
Installation width 3479 mm
Installation height 3186 mm

Contact us

First name *

Surname *

E-mail address *

Your message *

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Notes on privacy policy

Report ad

Reason *

E-mail address *

Your message *

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Notes on privacy policy

Description

B-axis milling head, integrated C-axis, number of tools max. 120, unique tool changer

Production type: One-off production, small series (< 50), medium series (50 - 1000)

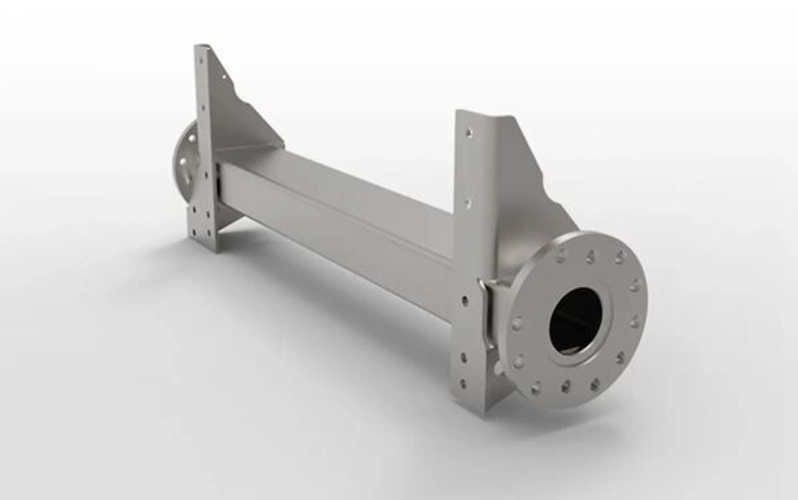

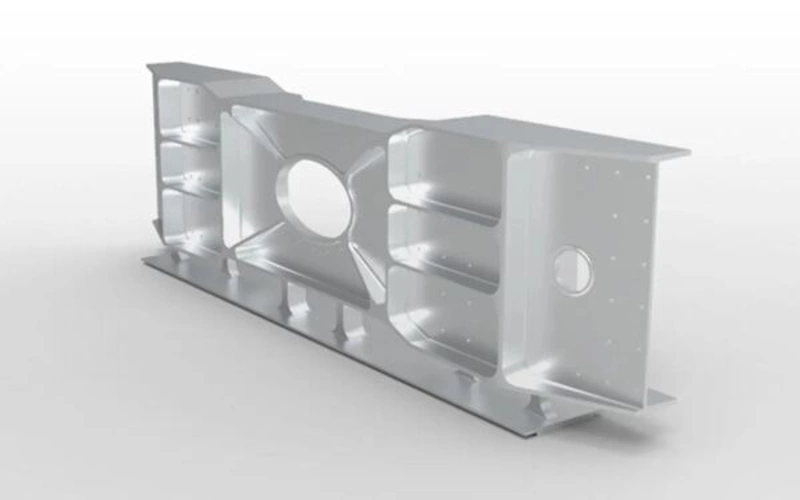

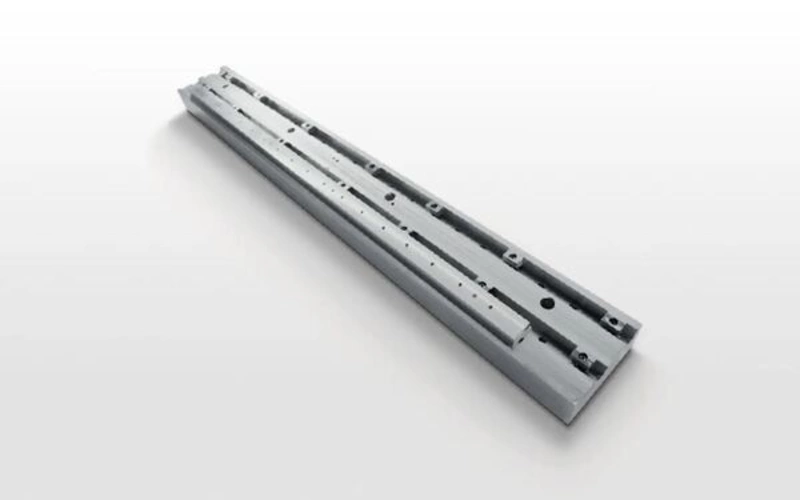

Materials: aluminium, steel, titanium, glass / ceramics, plastic / CFRP

Latest generationtravelling column machine for 5-axis simultaneous machining

Basic equipment

CELOS with SIEMENS control
speedMASTER spindle with 15,000 rpm
B-axis milling head with ±120 ° swiveling range
Direct absolute measuring systems in all axes
Tool magazine with 40 pockets
Scraper belt chip conveyor
Active cooler for control cabinet and spindle
Full cabin

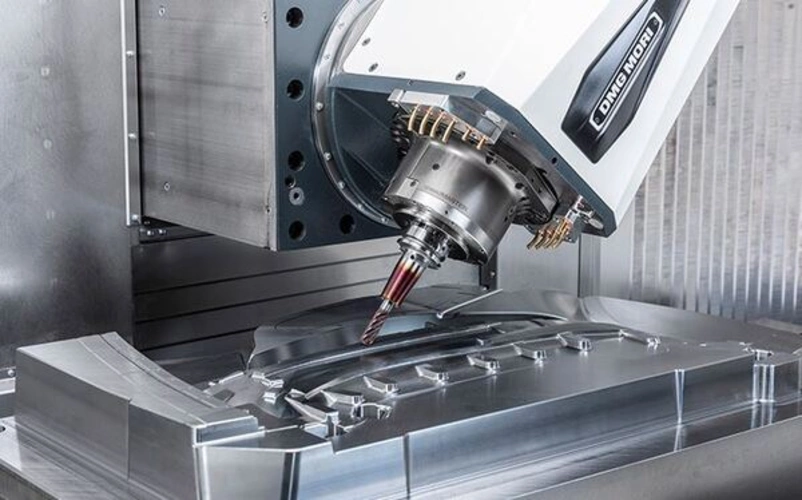

B-axis milling head

B-axis milling head with swiveling range of ±120°
High clamping torque of up to 6,000 Nm
Speed of 50 rpm
Distance of the tool system to the rotary axis of only 200 mm
Distance between horizontally swivelled spindle and worktable of only 250 mm

Integrated C-axis

Integrated C-axis rotary table for 5-axis simultaneous machining (optional)
Rotary table with ø 800 mm (ø 1,050 mm**)
Loading weight of up to 800 kg (1,200 kg)
High Rapid linear traverses of up to 50 rpm

Innovative tool change

Changing slide outside the work area
Loading of the entire work table
Optimum sealing between work area and machine
Tool lengths of up to 400 mm

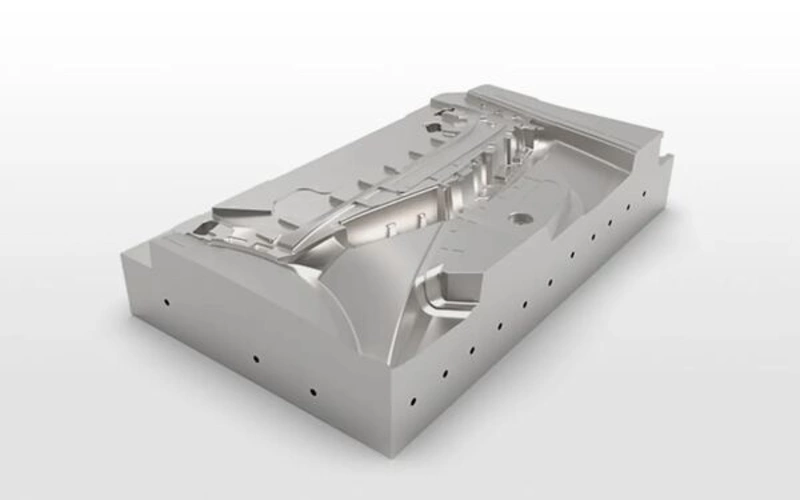

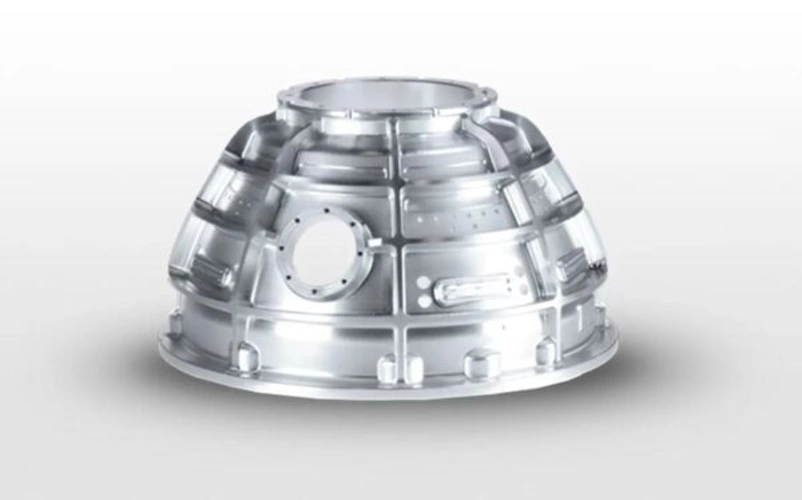

The machine concept of the new DMF | 8 series guarantees maximum flexibility and performance in key industries such as tool and mould making, the aerospace sector and even medical technology. An extensive modular system enables application-orientated configuration and therefore an optimum production solution for demanding components in almost any industry.
